5.8 Typical Power Block MOSFET Characteristics

TA = 25°C, unless stated otherwise.
CSD86356Q5D D010_SLPS685.gif
Figure 8. Control MOSFET Saturation
CSD86356Q5D D012_SLPS685.gif
VDS = 5 V
Figure 10. Control MOSFET Transfer
CSD86356Q5D D014_SLPS685.gif
ID = 20 A VDS = 12.5 V
Figure 12. Control MOSFET Gate Charge
CSD86356Q5D D016_SLPS685.gif
ƒ = 1 MHz VGS = 0
Figure 14. Control MOSFET Capacitance
CSD86356Q5D D018_SLPS685.gif
ID = 250 µA
Figure 16. Control MOSFET VGS(th)

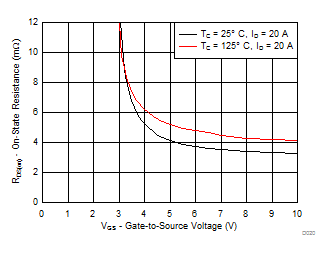

CSD86356Q5D D020_SLPS685.gif
Figure 18. Control MOSFET RDS(ON) vs VGS
CSD86356Q5D D022_SLPS685.gif
ID = 20 A
Figure 20. Control MOSFET Normalized RDS(ON)

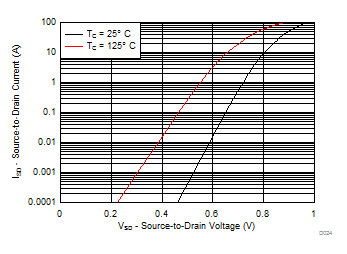

CSD86356Q5D D024_SLPS685.gif
Figure 22. Control MOSFET Body Diode

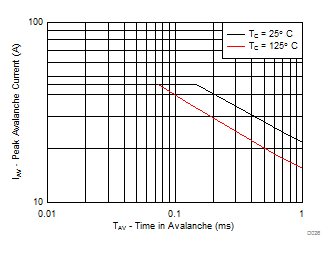

CSD86356Q5D D026_SLPS685.gif
Figure 24. Control MOSFET Unclamped Inductive Switching

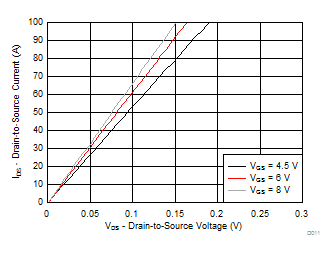

CSD86356Q5D D011_SLPS685.gif
Figure 9. Sync MOSFET Saturation
CSD86356Q5D D013_SLPS685.gif
VDS = 5 V
Figure 11. Sync MOSFET Transfer

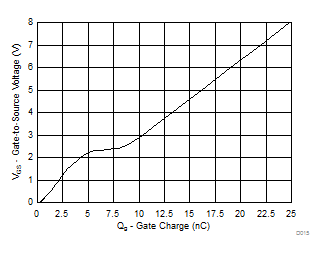

CSD86356Q5D D015_SLPS685.gif
ID = 20 A VDS = 12.5 V
Figure 13. Sync MOSFET Gate Charge
CSD86356Q5D D017_SLPS685.gif
ƒ = 1 MHz VGS = 0
Figure 15. Sync MOSFET Capacitance
CSD86356Q5D D019_SLPS685.gif
ID = 250 µA
Figure 17. Sync MOSFET VGS(th)

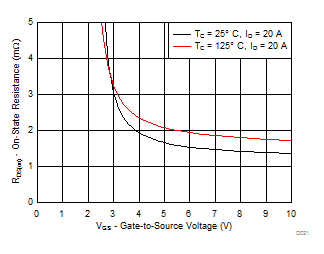

CSD86356Q5D D021_SLPS685.gif
Figure 19. Sync MOSFET RDS(ON) vs VGS

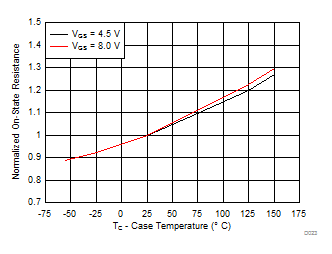

CSD86356Q5D D023_SLPS685.gif
ID = 20 A
Figure 21. Sync MOSFET Normalized RDS(ON)
CSD86356Q5D D025_SLPS685.gif
Figure 23. Sync MOSFET Body Diode

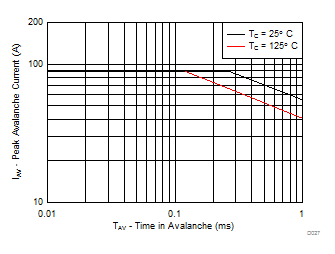

CSD86356Q5D D027_SLPS685.gif
Figure 25. Sync MOSFET Unclamped Inductive Switching
