7.12.6 ADS4222

At T_A = 25°C, AVDD = 1.8 V, DRVDD = 1.8 V, maximum rated sampling frequency, sine wave input clock, 1.5-V_PP differential clock amplitude, 50% clock duty cycle, –1 dBFS differential analog input, High-Performance Mode disabled, 0-dB gain, DDR LVDS output interface, and 32k point FFT, unless otherwise noted.

Figure 7-104 FFT for 20-MHz Input Signal

Figure 7-106 FFT for 300-MHz Input Signal

Figure 7-108 FFT for Two-Tone Input Signal

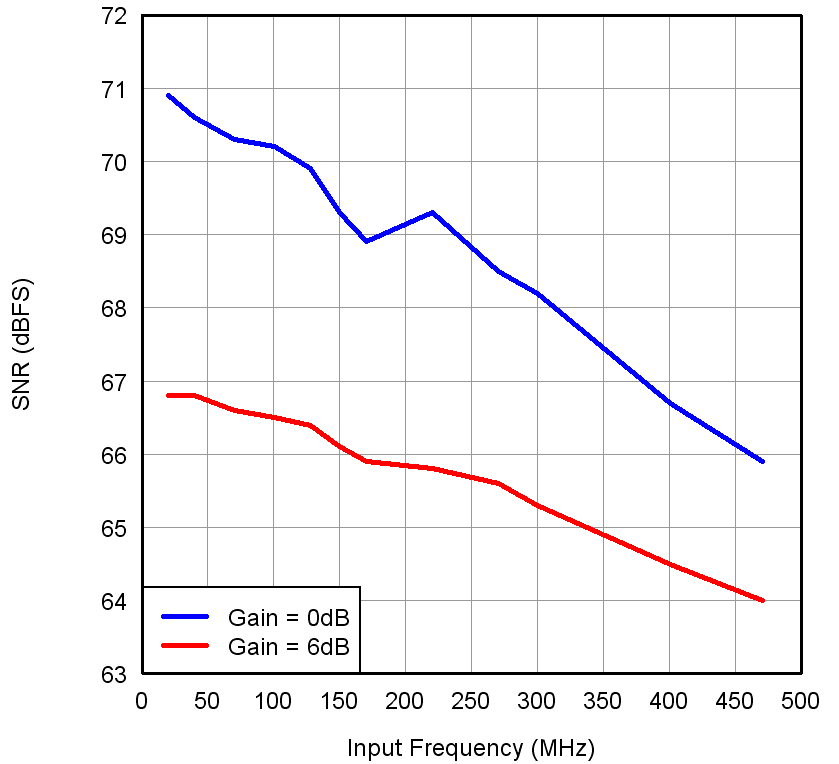

Figure 7-110 SNR vs Input Frequency

Figure 7-112 SFDR vs Gain and Input Frequency

Figure 7-114 Performance vs Input Amplitude

Figure 7-116 Performance vs Input Common-Mode Voltage

Figure 7-118 SFDR vs Temperature and AVDD Supply

Figure 7-120 Performance vs DRVDD Supply Voltage

Figure 7-122 Performance vs Input Clock Amplitude

Figure 7-105 FFT for 170-MHz Input Signal

Figure 7-107 FFT for Two-Tone Input Signal

Figure 7-109 SFDR vs Input Frequency

Figure 7-111 SNR vs Input Frequency (CMOS)

Figure 7-113 SINAD vs Gain and Input Frequency

Figure 7-115 Performance vs Input Amplitude

Figure 7-117 Performance vs Input Common-Mode Voltage

Figure 7-119 SNR vs Temperature and AVDD Supply

Figure 7-121 Performance vs Input Clock Amplitude

Figure 7-123 Performance vs Input Clock Duty Cycle
