6.7 Typical Characteristics

at TA= 25°C, VS = 12 V, VCM= VS_O1= VS_O2= VS/2, and RL= 10 kΩ (unless otherwise noted)


Figure 6-1 Offset Voltage Drift
Production Distribution
5 typical units
Figure 6-3 Offset Voltage vs Power Supply
Gain = 1 V/V

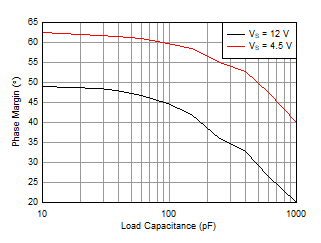

Figure 6-5 Phase Margin vs Capacitive Load

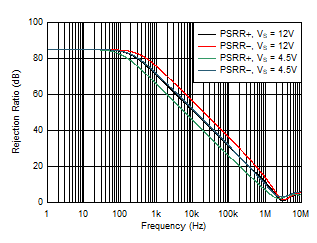

Figure 6-7 PSRR vs Frequency
VO = 8 VPP Gain = 2 V/V Measurement bandwidth = 80 kHz

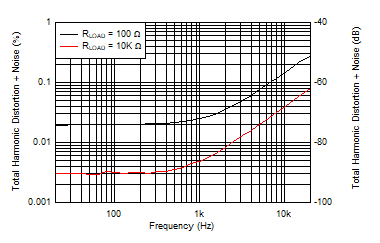

Figure 6-9 THD+N Ratio vs Frequency

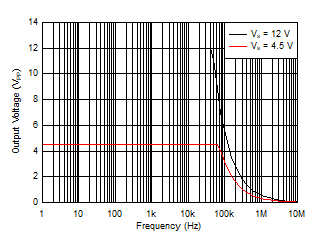

Figure 6-11 Maximum Output Voltage
vs Frequency

Figure 6-13 Input Bias Current vs Temperature

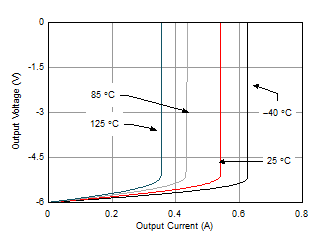

Figure 6-15 Output Voltage Swing
vs Output Sink Current

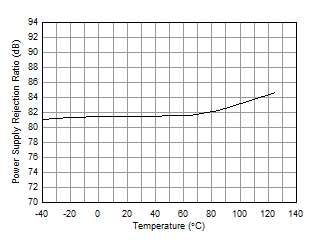

Figure 6-17 PSRR vs Temperature

Figure 6-19 Input Voltage Spectral Noise Density vs Frequency
5 typical units
Figure 6-21 Quiescent Current vs Temperature

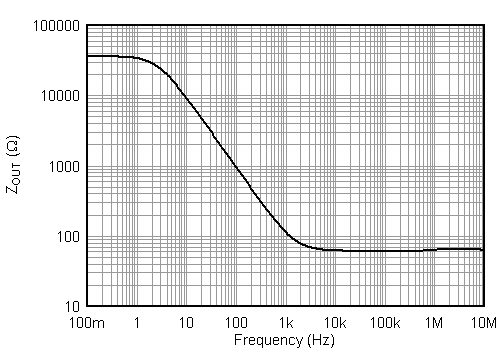

Figure 6-23 Open-Loop Output Impedance
vs Frequency
10-mV output step Gain = 1 V/V
Figure 6-25 Small-Signal Overshoot
vs Capacitive Load
VS = 4.5 V
Figure 6-27 Negative Overload Recovery
VIN = 5 V

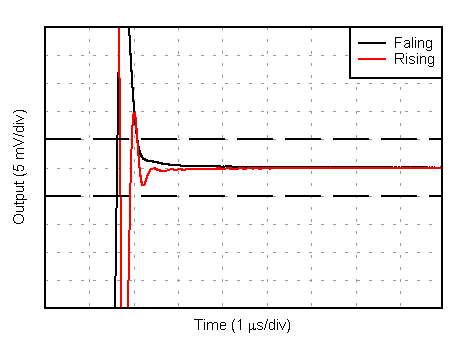

Figure 6-29 Settling Time
PRF = –10 dBm

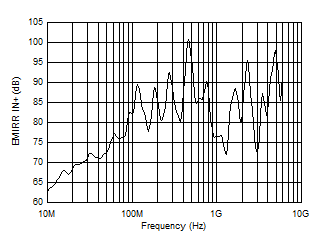

Figure 6-31 EMIRR vs Frequency
5 typical units

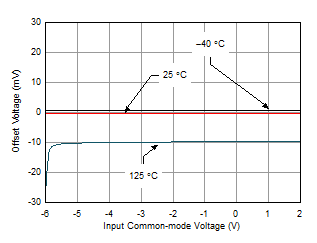

Figure 6-2 Offset Voltage
vs Input Common-Mode Voltage
CLOAD = 200 nF RL = 50 Ω
Figure 6-4 Open-Loop Gain and Phase
vs Frequency

Figure 6-6 Closed-Loop Gain vs Frequency

Figure 6-8 CMRR vs Frequency
Input signal frequency =1 kHz Measurement bandwidth = 80 kHz
Figure 6-10 THD+N vs Output Amplitude

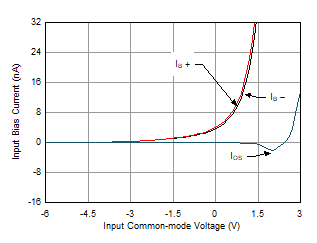

Figure 6-12 Input Bias Current
vs Common-Mode Voltage

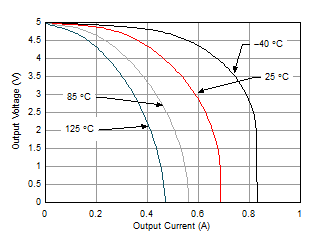

Figure 6-14 Output Voltage Swing
vs Output Source Current

Figure 6-16 CMRR vs Temperature

Figure 6-18 0.1-Hz to 10-Hz Noise
5 typical units VO = 8 VPP
Figure 6-20 Quiescent Current vs Power Supply
RL = 100 Ω

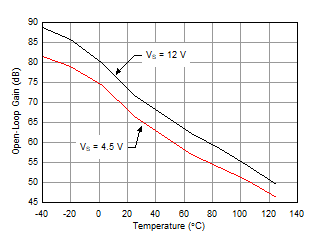

Figure 6-22 Open-Loop Gain vs Temperature
10-mV output step Gain = –1 V/V
Figure 6-24 Small-Signal Overshoot
vs Capacitive Load

Figure 6-26 No Phase Reversal
VIN = 10 mVPP
Figure 6-28 Small-Signal Step Response

Figure 6-30 Short-Circuit Current vs Temperature
