7.17.3.1 nRESET (32-kHz Crystal)

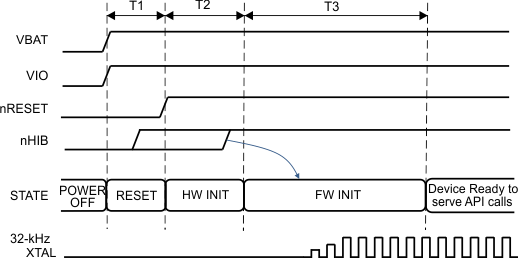

Figure 7-6 shows the reset timing diagram for the 32-kHz crystal first-time power-up and reset removal.

CC3135 First-Time Power-Up and Reset Removal Timing Diagram (32-kHz Crystal) Figure 7-6 First-Time Power-Up and Reset Removal Timing Diagram (32-kHz Crystal)



Table 7-11 describes the timing requirements for the 32-kHz crystal first-time power-up and reset removal.
