7.17.3.2 nRESET (External 32kHz Clock)

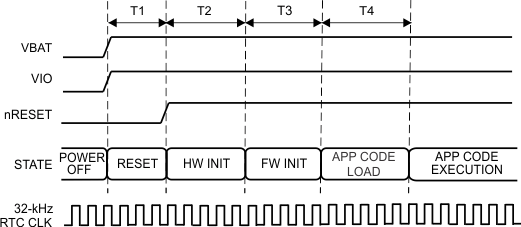

Figure 7-7 shows the reset timing diagram for the external 32kHz clock first-time power-up and reset removal.

CC3235S CC3235SF First-Time Power-Up and Reset Removal Timing Diagram (External 32kHz Clock)Figure 7-7 First-Time Power-Up and Reset Removal Timing Diagram (External 32kHz Clock)



Table 7-16 describes the timing requirements for the external 32kHz clock first-time power-up and reset removal.
