5.9 Typical Characteristics

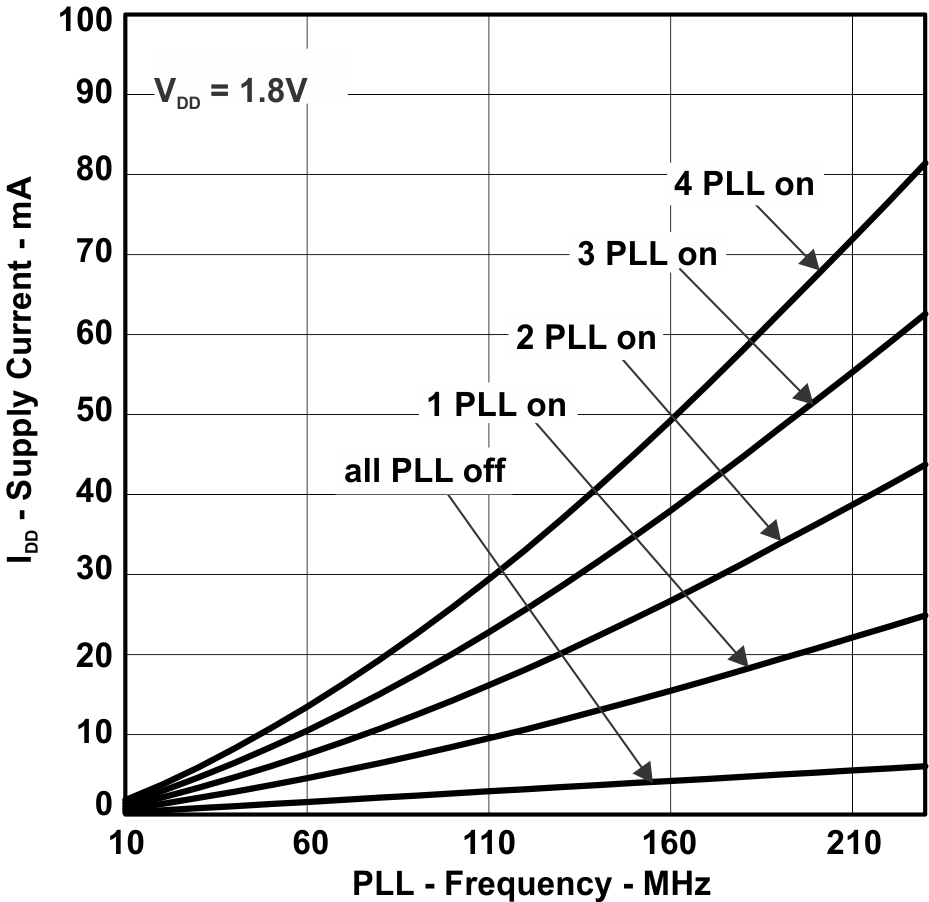

CDCE949 CDCEL949 CDCEx949 Supply Current vs PLL FrequencyFigure 5-1 CDCEx949 Supply Current vs PLL Frequency
CDCE949 CDCEL949 CDCEL949 Output Current vs Output FrequencyFigure 5-3 CDCEL949 Output Current vs Output Frequency

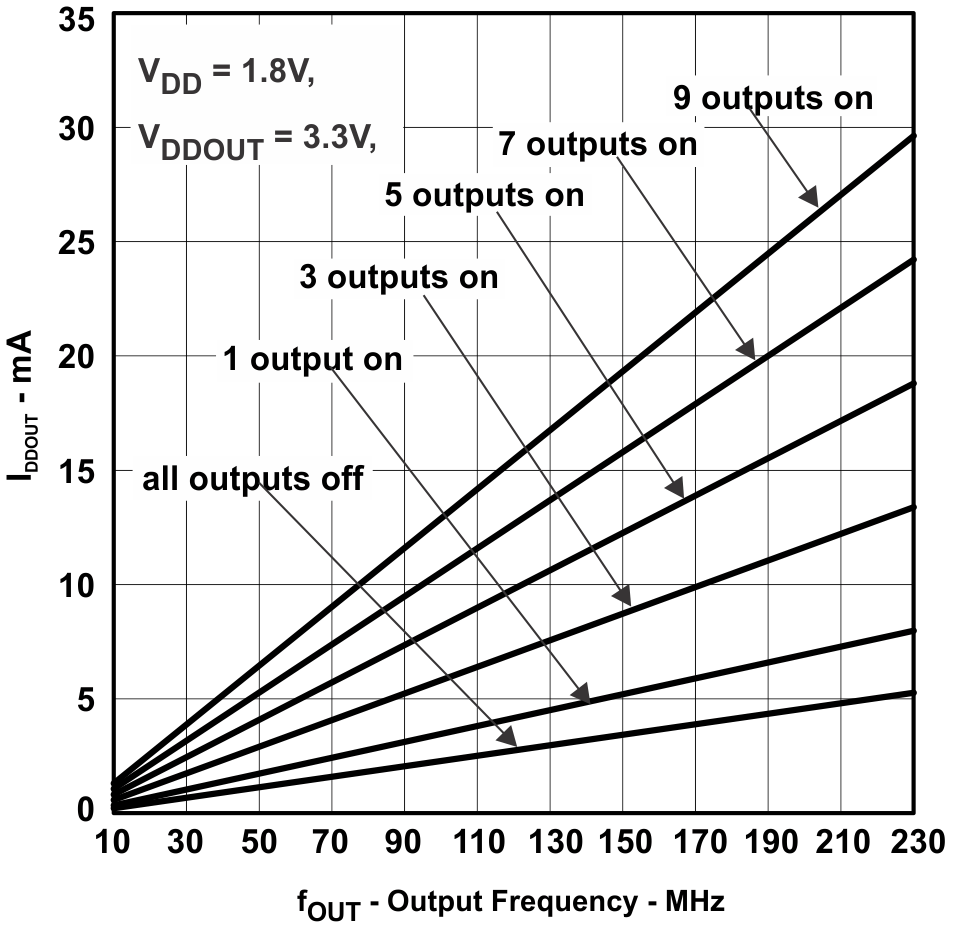

CDCE949 CDCEL949 CDCE949 Output Current vs Output FrequencyFigure 5-2 CDCE949 Output Current vs Output Frequency
