Each of the two DMD buck converters creates a supply voltage for the DMD and/or the DLPC. The values of the voltages for the DMD and DLPC used, for instance:
The topology of the buck converters is the same as the general purpose buck converters discussed later in this document. To configure the inductor and capacitor, see Buck Converters.
A typical configuration is 3.3 µH for the inductor and 2 × 22 µF for the output capacitor. The voltage rating of the capacitor is recommended to be equal or greater than two times of the applied voltage across the capacitor in the application.

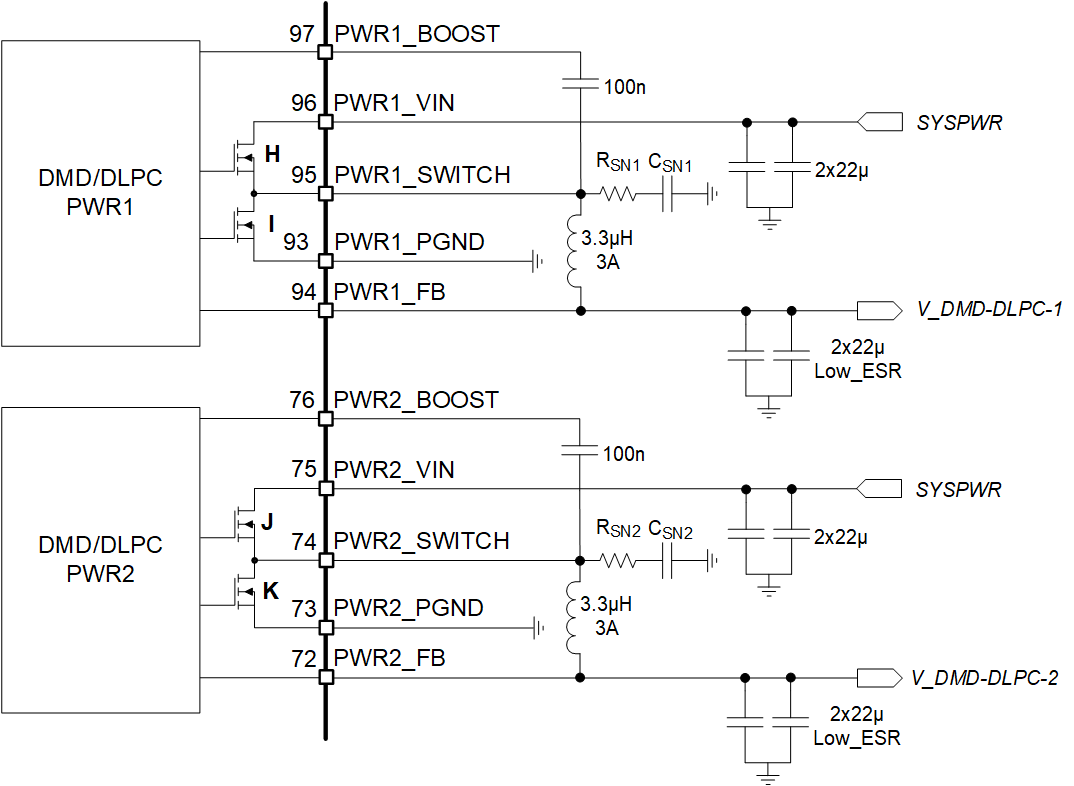

Figure 8-19 DMD/DLPC Buck Converters
