Timing Requirements

(see (4))
MIN NOM MAX UNIT
fcd Clock frequency, DCLKIN_n(1) 395 400 400 MHz
fcr Clock frequency, CLK_R 50 MHz
tc Cycle time, DCLKIN_n 2.5 2.5 2.53 ns
tw(H) Pulse duration, high 50% to 50% reference points (signal) 1.25 1.25 1.27 ns
tw(L) Pulse duration, low 50% to 50% reference points (signal) 1.25 1.25 1.27 ns
tt Transition time, tt = tf /tr 20% to 80% reference points (signal) .6 ns
tjp Period Jitter DCLKIN_n(2) 150 ps
tSK Skew, DIN_A(15-0) to DCLKIN_A –150 150 ps
Skew, DIN_B(15-0) to DCLKIN_B –150 150
Skew, DIN_C(15-0) to DCLKIN_C –150 150
Skew, DIN_D(15-0) to DCLKIN_D –150 150
Skew, DVALID_n to DCLKIN_n↑ –150 150
Skew, BLK_MD BLK_AD to DCLKIN_n↑(3) –150 150
Skew, ROWMD or ROWAD to DCLKIN_n↑(3) –150 150
Skew, STEPVCC to DCLKIN↑(3) –150 150
Preferred DCLKIN_n duty cycle = 50%
This is the deviation in period from ideal period due solely to high frequency jitter.
First edge of DIN*, ROW*, BLK* and STEPVCC should be synchronous to DVALID rising edge
It is recommended that the COMP_DATA, NS_FLIP and RST2BLK inputs be set to one value and not adjusted during normal system operation.

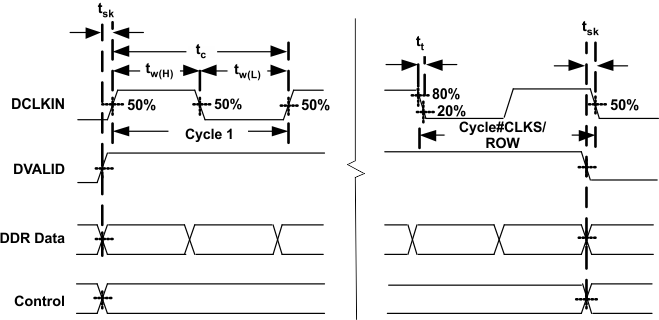

DLPC410 ip_iface_tim_lps024.gifFigure 2. Input Interface Timing

NOTE

Dynamic changes to RST2BLK, NS_FLIP and COMP_DATA during normal operation are not recommended.
