7.3.7 Logic and Quad-Level Pin Diagrams

Figure 7-12 gives the input structure for logic-level pins APH, AEN, BPH, BEN, AIN1, AIN2, BIN1, BIN2 and nSLEEP:

GUID-1ECA61DE-3EFF-46A3-9F8A-F79D710C97B8-low.gifFigure 7-12 Logic-level Input Pin Diagram

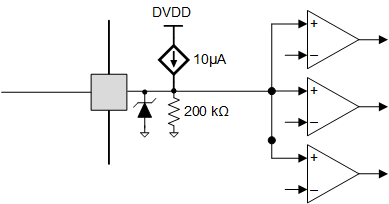

Quad-level logic pins TOFF, ADECAY, and BDECAY have the following structure as shown in Figure 7-13.

GUID-3E3ADCEF-55E8-4402-BB6B-04BB0E5EEC48-low.gifFigure 7-13 Quad-Level Input Pin Diagram
