3 Description

The DRV8824 provides an integrated motor driver solution for printers, scanners, and other automated equipment applications. The device has two H-bridge drivers and a microstepping indexer, and is intended to drive a bipolar stepper motor. The output driver block consists of N-channel power MOSFETs configured as full H-bridges to drive the motor windings. The DRV8824 is capable of driving up to 1.6 A of current from each output (with proper heatsinking, at 24 V and 25°C).

A simple STEP/DIR interface allows easy interfacing to controller circuits. Mode pins allow for configuration of the motor in full-step up to 1/32-step modes. Decay mode is configurable so that slow decay, fast decay, or mixed decay can be used. A low-power sleep mode is provided which shuts down internal circuitry to achieve very-low quiescent current draw. This sleep mode can be set using a dedicated nSLEEP pin.

Internal shutdown functions are provided for overcurrent, short circuit, undervoltage lockout, and over temperature. Fault conditions are indicated through the nFAULT pin.

Device Information(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
DRV8824 HTSSOP (28) 9.70 mm × 6.40 mm
VQFN (28) 5.00 mm × 5.00 mm
(1) For all available packages, see the orderable addendum at the end of the data sheet.

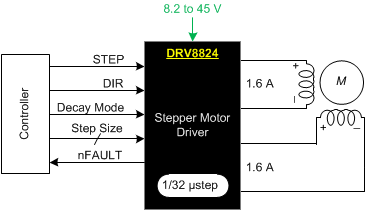

GUID-0E5F41AA-94D4-48E8-A243-A469E5472F9F-low.gifSimplified Schematic
GUID-1AB248B9-D39C-4E99-B347-9DCACDD4D501-low.gifMicrostepping Current Waveform
