6.6 Timing Requirements

TA = 25°C, over recommended operating conditions unless otherwise noted
NO. MIN MAX UNIT
1 ƒSTEP Step frequency 250 kHz
2 tWH(STEP) Pulse duration, STEP high 1.9 μs
3 tWL(STEP) Pulse duration, STEP low 1.9 μs
4 tSU(STEP) Setup time, DIR or Mx to STEP rising 200 ns
5 tH(STEP) Hold time, DIR or Mx to STEP rising 200 ns

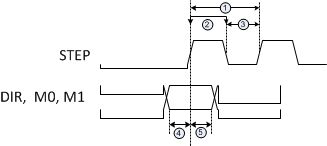

DRV8846 tim_STEP_DIR_LLSEK2.gifFigure 1. Timing Diagram
