7.22 Typical Characteristics

VISO = 3.3 VTA = 25°C
Figure 7-3 Isolated Supply Voltage (VISO) vs Load Current (IISO)
TA = 25°C
Figure 7-5 ISOW7841 Supply Current (ICC) vs Load Current (IISO)
TA = 25°C
Figure 7-7 ISOW7841 Power Dissipation vs Load Current (IISO)
No IISO loadVCC = 5 VVISO = 5 V
Figure 7-9 5-V Isolated Supply Voltage (VISO) vs Free-Air Temperature
CL = 15 pFTA = 25°CNo IISO load
Figure 7-11 ISOW7840 Supply Current vs Data Rate
CL = 15 pF TA = 25°C No IISO load
Figure 7-13 ISOW7841 Supply Current vs Data Rate
CL = 15 pFTA = 25°CNo IISO load
Figure 7-15 ISOW7842 Supply Current vs Data Rate
CL = 15 pFTA = 25°CNo IISO load
Figure 7-17 ISOW7843 Supply Current vs Data Rate
CL = 15 pFTA = 25°CNo IISO load
Figure 7-19 ISOW7844 Supply Current vs Data Rate
GUID-E08E5E98-2A25-4D2D-AC63-389F19FA7945-low.gifFigure 7-21 Power-Supply Undervoltage Threshold vs Free Air Temperature
TA = 25°C

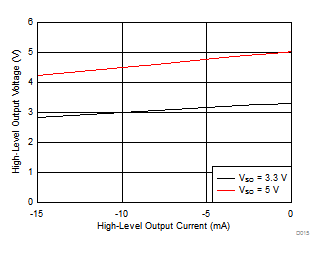

Figure 7-23 High-Level Output Voltage vs High-Level Output Current
VCC = 5 VVISO = 3.3 V
Negligible undershoot and overshoot because of load transient
Figure 7-25 10-mA to 110-mA Load Transient Response
VCC = 5 VVISO = 3.3 V
Input current spike is because of charging the input supply decoupling capacitor
Figure 7-27 Soft Start at 120-mA Load
VCC = 5 VVISO = 5 V
Input current spike is because of charging the input supply decoupling capacitor
Figure 7-29 Soft Start at 130-mA Load
VCC = 5 VVISO = 3.3 V
Figure 7-31 VISO Ripple Voltage at 130 mA
VISO = 5 VTA = 25°C
Figure 7-4 Isolated Supply Voltage (VISO) vs Load Current (IISO)
TA = 25°C
Figure 7-6 ISOW7841 Efficiency vs Load Current (IISO)
No IISO loadVCC = 5 VVISO = 3.3 V
Figure 7-8 3.3-V Isolated Supply Voltage (VISO) vs Free-Air Temperature
VISO shorted to GND2 TA = 25°C
Figure 7-10 Short-Circuit Supply Current (ICC) and Power (P) vs Supply Voltage (VCC)
CL = no loadTA = 25°CNo IISO load
Figure 7-12 ISOW7840 Supply Current vs Data Rate
CL = no load TA = 25°C No IISO load
Figure 7-14 ISOW7841 Supply Current vs Data Rate
CL = no loadTA = 25°CNo IISO load
Figure 7-16 ISOW7842 Supply Current vs Data Rate
CL = no loadTA = 25°CNo IISO load
Figure 7-18 ISOW7843 Supply Current vs Data Rate
CL = no loadTA = 25°CNo IISO load
Figure 7-20 ISOW7844 Supply Current vs Data Rate
GUID-5D02FC56-B762-46E5-9926-4553A65C02CB-low.gifFigure 7-22 Propagation Delay Time vs Free-Air Temperature
TA = 25°C
Figure 7-24 Low-Level Output Voltage vs Low-Level Output Current
VCC = 5 VVISO = 3.3 V
Current spike is because of charging the input supply capacitor
Figure 7-26 Soft Start at 10-mA Load
VCC = 5 VVISO = 5 V
Input current spike is because of charging the input supply decoupling capacitor
Figure 7-28 Soft Start at 10-mA Load
VCC = 5 VVISO = 5 V
Figure 7-30 VISO Ripple Voltage at 130 mA
