4.3 Pin Functions: LM339LV

GUID-20201005-CA0I-MHTH-CKF4-PWCTNCDNRGV3-low.gifFigure 4-5 D, PW, DYY Package
14-Pin SOIC, TSSOP, SOT-23
Top View
NOTE: Connect exposed thermal pad directly to GND pin.

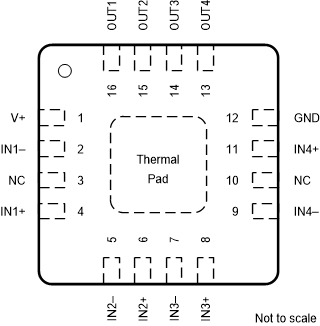

Figure 4-6 RTE Package
16-Pad WQFN With Exposed Thermal Pad
Top View
Table 4-1 Pin Functions: LM339LV
PINI/ODESCRIPTION
NAME(1)SOICWQFN
OUT2115OutputOutput pin of the comparator 2
OUT1216OutputOutput pin of the comparator 1
V+31—Positive supply
IN1–42InputNegative input pin of the comparator 1
IN1+54InputPositive input pin of the comparator 1
IN2–65InputNegative input pin of the comparator 2
IN2+76InputPositive input pin of the comparator 2
IN3–87InputNegative input pin of the comparator 3
IN3+98InputPositive input pin of the comparator 3
IN4–109InputNegative input pin of the comparator 4
IN4+1111InputPositive input pin of the comparator 4
GND1212—Negative supply
OUT41313OutputOutput pin of the comparator 4
OUT31414OutputOutput pin of the comparator 3
NC—3—No Internal Connection - Leave floating or GND
NC—10—No Internal Connection - Leave floating or GND
Thermal Pad—PAD—Connect directly to GND pin
(1) Some manufacturers transpose the names of channels 1 & 2. Electrically the pinouts are identical, just a difference in channel naming convention.
