5.11 Typical Characteristics: LM358B and LM2904B

This typical characteristics section is applicable for LM358B and LM2904B. Typical characteristics data in this section was taken with TA = 25°C, VS = 36 V (±18 V), VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2 (unless otherwise noted).

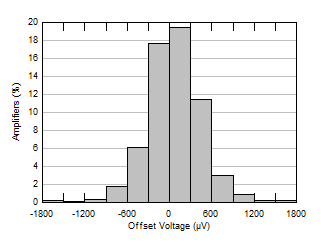

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Offset Voltage Production Distribution
Figure 5-1 Offset Voltage Production Distribution
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Offset Voltage vs Temperature
Figure 5-3 Offset Voltage vs Temperature
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Open-Loop Gain and Phase vs Frequency
Figure 5-5 Open-Loop Gain and Phase vs Frequency

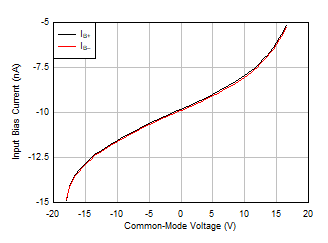

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Input Bias Current vs Common-Mode Voltage
Figure 5-7 Input Bias Current vs Common-Mode Voltage

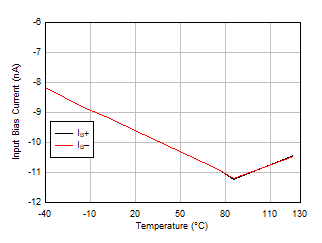

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Input Bias Current vs Temperature
Figure 5-9 Input Bias Current vs Temperature

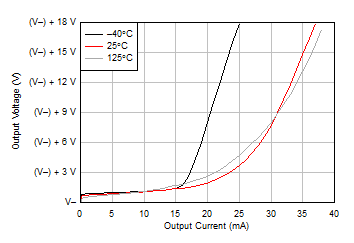

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Output Voltage Swing vs Output Current (Sourcing)
Figure 5-11 Output Voltage Swing vs Output Current (Sourcing)
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA CMRR and PSRR vs FrequencyFigure 5-13 CMRR and PSRR vs Frequency

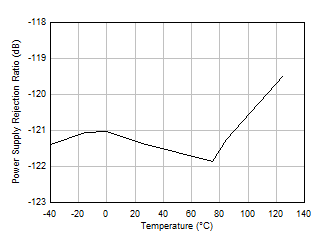

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Power Supply Rejection Ratio vs Temperature (dB)
VS = 5 V to 36 V
Figure 5-15 Power Supply Rejection Ratio vs Temperature (dB)
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Input Voltage Noise Spectral Density vs Frequency

Figure 5-17 Input Voltage Noise Spectral Density vs Frequency
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA THD+N Ratio vs Frequency, G = –1
G = –1, f = 1 kHz, BW = 80 kHz,
VOUT = 10 VPP, RL connected to V–
See Figure 6-3
Figure 5-19 THD+N Ratio vs Frequency, G = –1

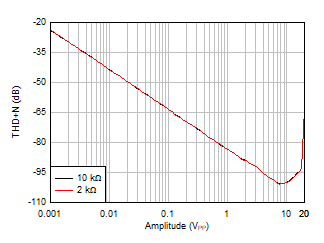

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA THD+N vs Output Amplitude, G = –1
G = –1, f = 1 kHz, BW = 80 kHz,
RL connected to V–
See Figure 6-3
Figure 5-21 THD+N vs Output Amplitude, G = –1

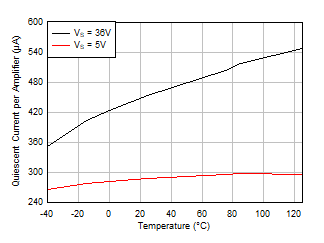

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Quiescent Current vs Temperature
Figure 5-23 Quiescent Current vs Temperature

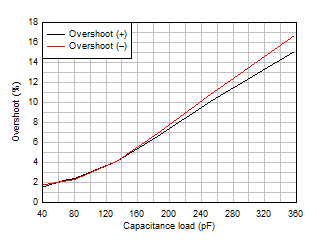

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Small-Signal Overshoot vs Capacitive Load
G = 1, 100-mV output step, RL = open
Figure 5-25 Small-Signal Overshoot vs Capacitive Load

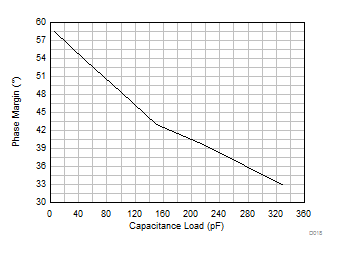

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Phase Margin vs Capacitive Load

Figure 5-27 Phase Margin vs Capacitive Load
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Small-Signal Step Response, G = 1
G = 1, RL = open

Figure 5-29 Small-Signal Step Response, G = 1

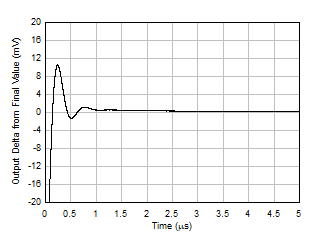

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Large-Signal Step Response (Rising)
G = 1, RL = open
Figure 5-31 Large-Signal Step Response (Rising)

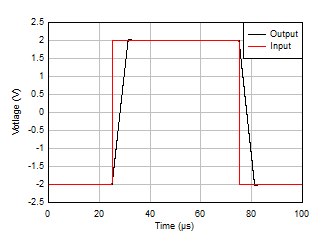

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Large-Signal Step Response
G = 1, RL = open
Figure 5-33 Large-Signal Step Response

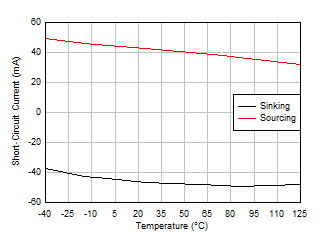

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Short-Circuit Current vs Temperature

Figure 5-35 Short-Circuit Current vs Temperature
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Channel Separation vs Frequency
Figure 5-37 Channel Separation vs Frequency

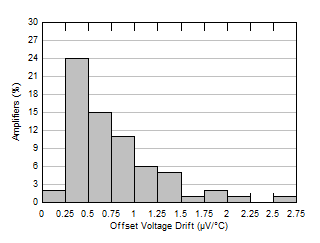

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Offset Voltage Drift Distribution
Figure 5-2 Offset Voltage Drift Distribution
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Offset Voltage vs Common-Mode Voltage
Figure 5-4 Offset Voltage vs Common-Mode Voltage

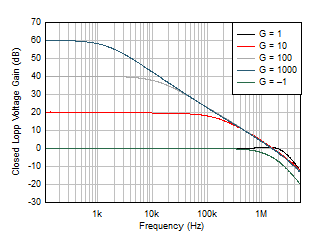

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Closed-Loop Gain vs Frequency
Figure 5-6 Closed-Loop Gain vs Frequency
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Input Offset Current vs Common-Mode Voltage
Figure 5-8 Input Offset Current vs Common-Mode Voltage
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Input Offset Current vs Temperature
Figure 5-10 Input Offset Current vs Temperature
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Output Voltage Swing vs Output Current (Sinking)
Figure 5-12 Output Voltage Swing vs Output Current (Sinking)

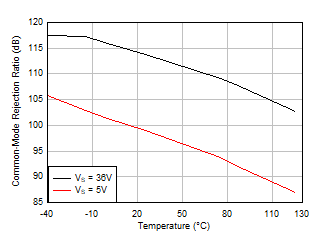

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Common-Mode Rejection Ratio vs Temperature (dB)Figure 5-14 Common-Mode Rejection Ratio vs
Temperature (dB)

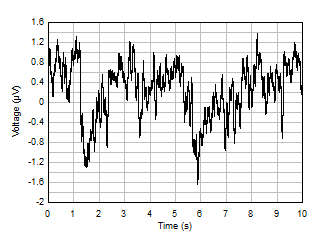

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA 0.1-Hz to 10-Hz Noise

Figure 5-16 0.1-Hz to 10-Hz Noise
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA THD+N Ratio vs Frequency, G = 1
G = 1, f = 1 kHz, BW = 80 kHz,
VOUT = 10 VPP, RL connected to V–
Figure 5-18 THD+N Ratio vs Frequency, G = 1
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA THD+N vs Output Amplitude, G = 1
G = 1, f = 1 kHz, BW = 80 kHz,
RL connected to V–

Figure 5-20 THD+N vs Output Amplitude, G = 1

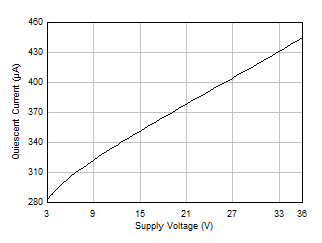

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Quiescent Current vs Supply Voltage



Figure 5-22 Quiescent Current vs Supply Voltage

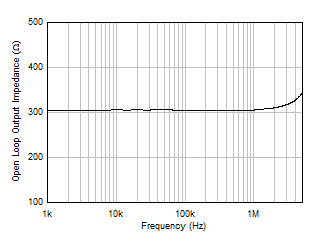

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Open-Loop Output Impedance vs Frequency
Figure 5-24 Open-Loop Output Impedance vs Frequency

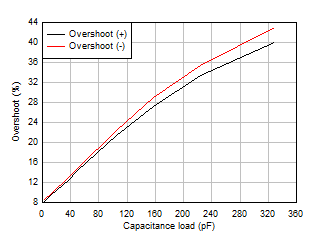

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Small-Signal Overshoot vs Capacitive Load
G = –1, 100-mV output step, RL = open
Figure 5-26 Small-Signal Overshoot vs Capacitive Load
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Overload Recovery
G = –10
Figure 5-28 Overload Recovery

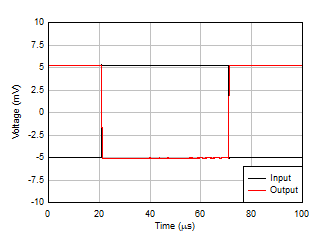

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Small-Signal Step Response, G = –1
G = –1, RL = open, RFB = 10K
See Figure 6-3
Figure 5-30 Small-Signal Step Response, G = –1
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Large-Signal Step Response (Falling)
G = 1, RL = open
Figure 5-32 Large-Signal Step Response (Falling)
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Slew Rate vs Temperature

Figure 5-34 Slew Rate vs Temperature

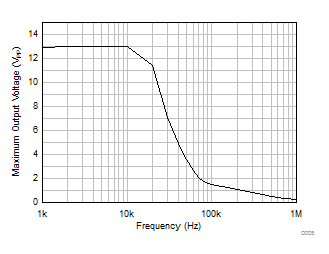

LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA Maximum Output Voltage vs Frequency
VS = 15 V
Figure 5-36 Maximum Output Voltage vs Frequency
LM158 LM158A LM258 LM258A LM2904 LM2904B LM2904BA LM2904V LM358 LM358A LM358B LM358BA EMIRR (Electromagnetic Interference Rejection Ratio) vs Frequency
Figure 5-38 EMIRR (Electromagnetic Interference Rejection Ratio) vs Frequency
