9.2.2.3 Application Curves

GUID-93434958-1935-4FB1-8591-2F696879CBF3-low.gifFigure 9-17 Efficiency vs IOUT and VIN
VIN step to 48 V 1.5-Ω Load
Figure 9-19 Start-Up, 8-A Resistive Load
VIN = 48 V 1.5-Ω Load

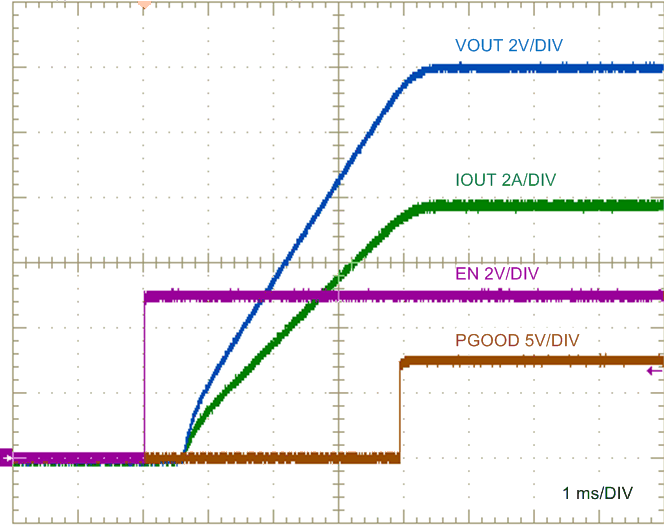

Figure 9-21 ENABLE ON, 10-A Resistive Load
VIN = 48 V
Figure 9-23 Load Transient Response, 1 A to 8 A to 1 A
VIN = 48 V
Figure 9-25 Load Transient Response, 4 A to 8 A to 4 A
IOUT = 4 A

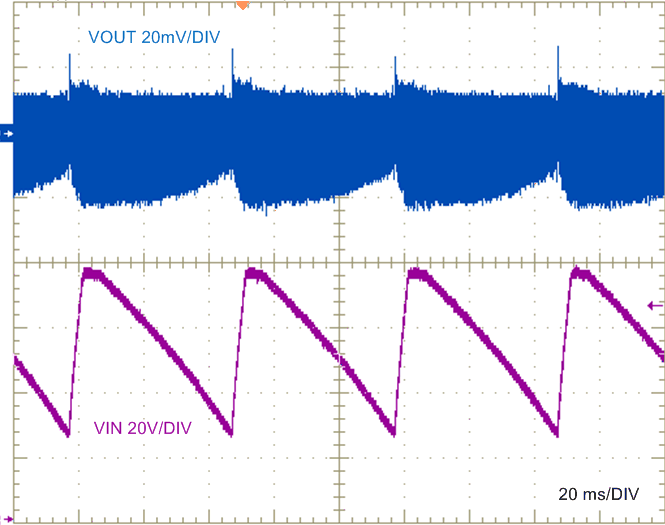

Figure 9-27 Repetitive Line Transients, 24 V to 75 V
VIN = 48 V FSW = 350 kHz IOUT = 8 A

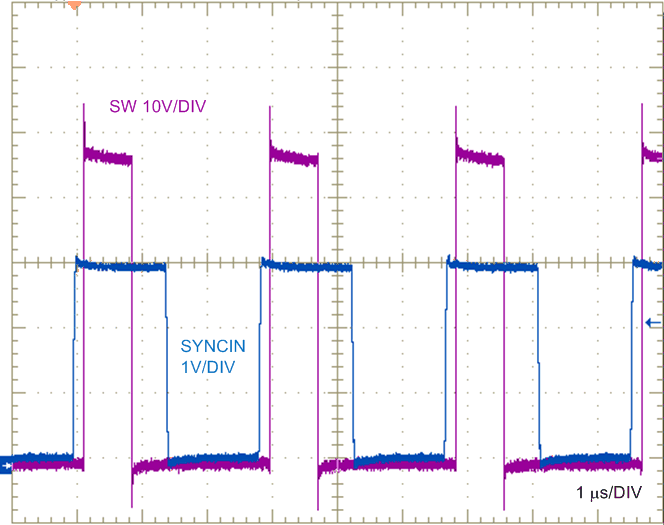

Figure 9-29 SW Node and SYNCIN Voltages
VIN = 48 V VOUT = 12 V 6-A resistive load

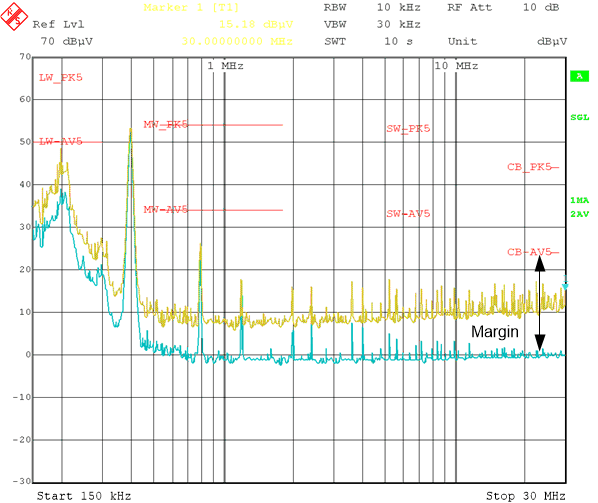

Figure 9-31 CISPR 25 Class 5 Conducted EMI, 150 kHz to 30 MHz
VIN = 48 V IOUT = 8 A
Figure 9-18 SW Node Voltages
1.5-Ω Load
Figure 9-20 Shutdown By Input UVLO, 8-A Resistive Load
VIN = 48 V 1.5-Ω Load

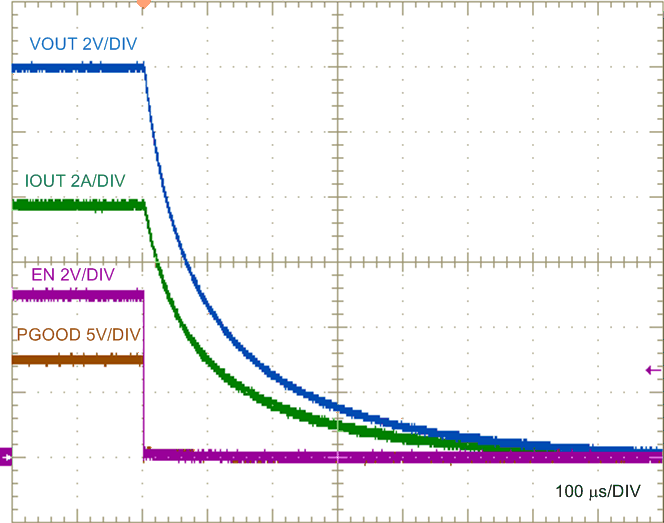

Figure 9-22 ENABLE OFF, 10-A Resistive Load
VIN = 48 V

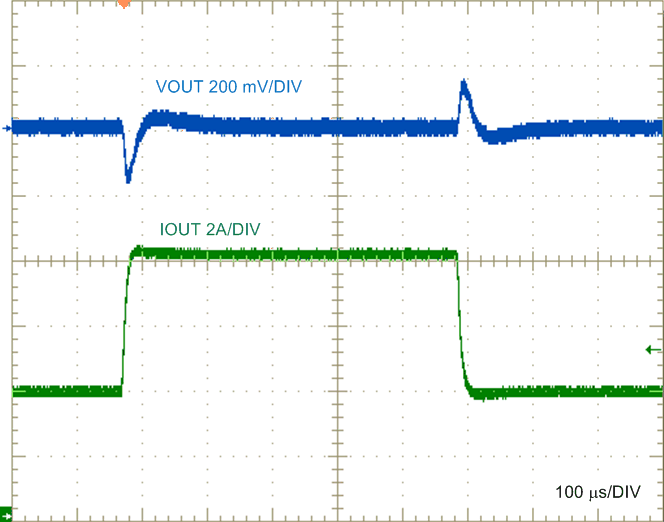

Figure 9-24 Load Transient Response, 2 A to 8 A to 2 A
VIN = 48 V IOUT = 8 A
Figure 9-26 Output Voltage Ripple
VIN = 48 V IOUT = 0 A
Figure 9-28 Pre-Biased Start-Up
VIN = 48 V IOUT = 8 A
Figure 9-30 SW Node and SYNCOUT Voltages
VIN = 48 V VOUT = 12 V 6-A resistive load

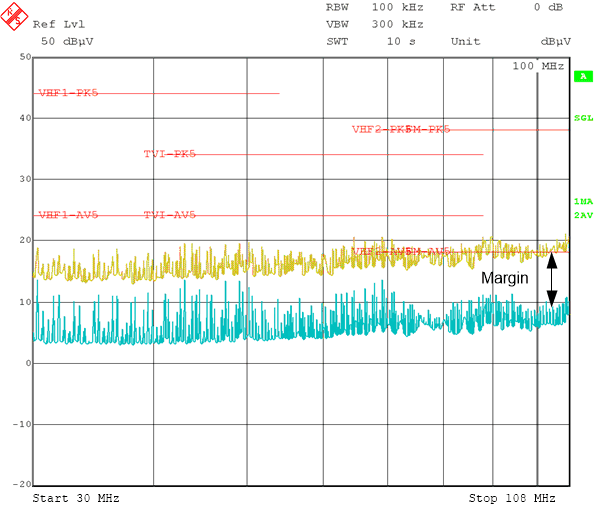

Figure 9-32 CISPR 25 Class 5 Conducted EMI, 30 MHz to 108 MHz
