3 Description

The LMZM33604 power module is an easy-to-use integrated power solution that combines a 4-A DC/DC converter with power MOSFETs, a shielded inductor, and passives in a low-profile package. This power solution requires as few as four external components and eliminates the loop compensation and inductor part selection from the design process.

The 16 mm × 10 mm × 4 mm, 41-pin, QFN package is easy to solder onto a printed circuit board and allows for a compact, low-profile point-of-load design. The LMZM33604 feature set includes power good, adjustable soft start, tracking, synchronization, programmable UVLO, prebias start-up, selectable auto or FPWM modes, as well as overcurrent and overtemperature protection. The LMZM33604 can be configured as negative output voltage for inverting applications.

Device Information

DEVICE NUMBER PACKAGE BODY SIZE (NOM)
LMZM33604 QFN (41) 16.00 mm × 10.00 mm

space

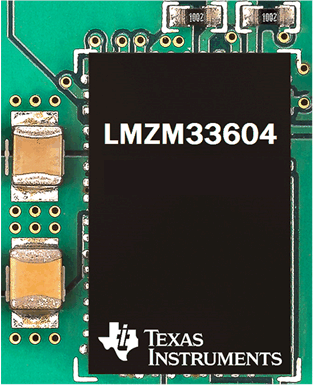

Minimum Solution Size

LMZM33604 Orb4AFront.gif

space

Typical Efficiency (Auto Mode)

LMZM33604 DFPE_frontpage3Eff.gif
