8.13 Typical Characteristics – Outputs, Reduced Drive Strength (PxDS.y = 0)

over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

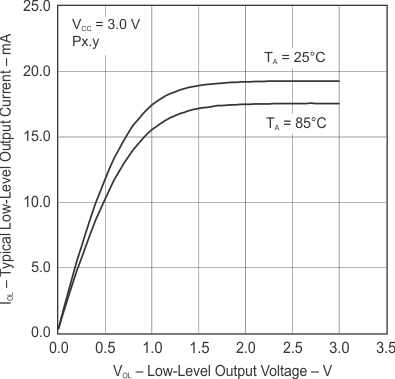

GUID-D462F4D4-2311-447D-A39B-BEA2A139915F-low.gifFigure 8-2 Typical Low-Level Output Current vs Low-Level Output Voltage
GUID-46AC82D2-B484-4D86-A02D-2264C8CE4C5B-low.gifFigure 8-4 Typical High-Level Output Current vs High-Level Output Voltage

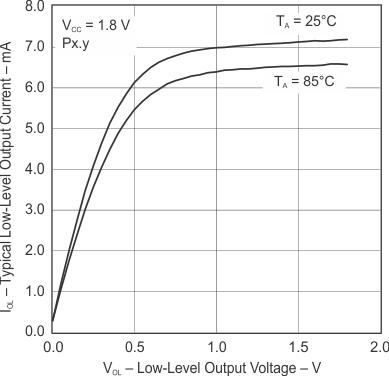

GUID-78C81FC8-914D-41E9-BB56-AA8F9A9DA8ED-low.gifFigure 8-3 Typical Low-Level Output Current vs Low-Level Output Voltage
GUID-D38AC7D0-46C0-432A-86AC-8CD51A6FF52F-low.gifFigure 8-5 Typical High-Level Output Current vs High-Level Output Voltage
