9.10.12 Port P7 (P7.4 to P7.7) Input/Output With Schmitt Trigger

Figure 9-14 shows the port diagram. Table 9-54 summarizes the selection of the pin functions.

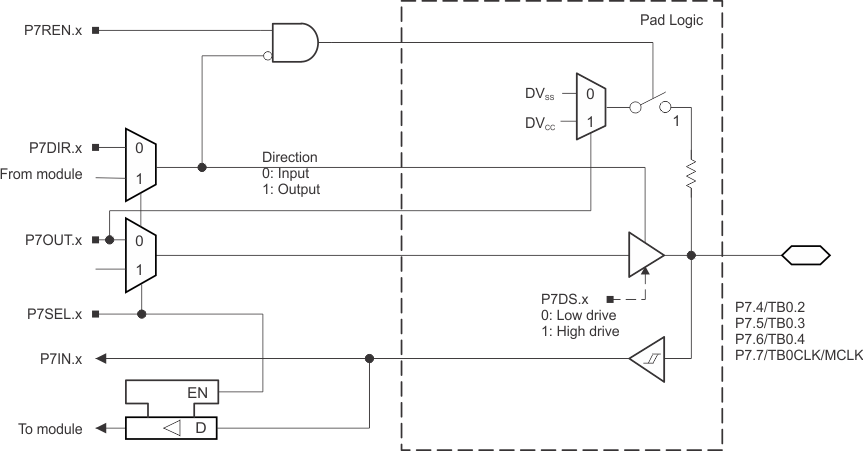

GUID-AE82A66A-4A4F-4C6E-B866-10C4F14664FB-low.gifFigure 9-14 Port P7 (P7.4 to P7.7) Diagram
Table 9-54 Port P7 (P7.4 to P7.7) Pin Functions
PIN NAME (P7.x)xFUNCTIONCONTROL BITS OR SIGNALS
P7DIR.xP7SEL.x
P7.4/TB0.2(1)4P7.4 (I/O)I: 0; O: 10
TB0.CCI2A01
TB0.211
P7.5/TB0.3(1)5P7.5 (I/O)I: 0; O: 10
TB0.CCI3A01
TB0.311
P7.6/TB0.4(1)6P7.6 (I/O)I: 0; O: 10
TB0.CCI4A01
TB0.411
P7.7/TB0CLK/MCLK(1)7P7.7 (I/O)I: 0; O: 10
TB0CLK01
MCLK11
(1) F5329, F5327, F5325 devices only.
