9.14.13 Port P7 (P7.4 to P7.7) Input/Output With Schmitt Trigger

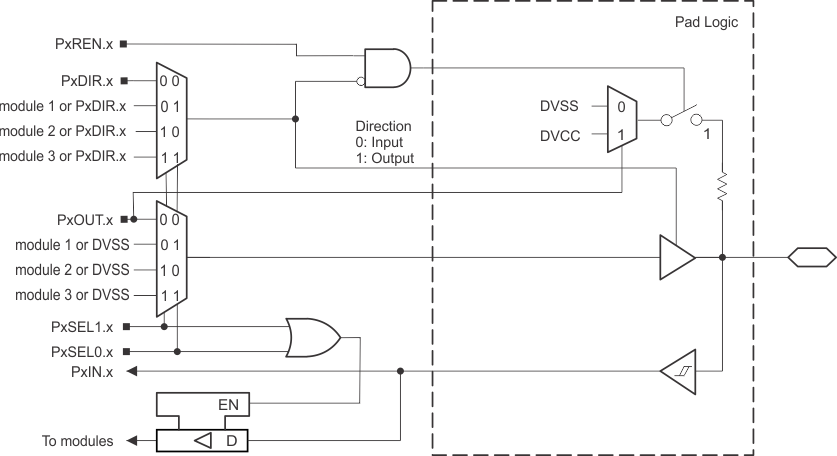

Figure 9-14 shows the port diagram. Table 9-36 summarizes the selection of the pin function.

Functional representation only.
Figure 9-14 Port P7 (P7.6 and P7.7) Diagram
Table 9-36 Port P7 (P7.6 to P7.7) Pin Functions
PIN NAME (P7.x) x FUNCTION CONTROL BITS OR SIGNALS(1)
P7DIR.x P7SEL1.x P7SEL0.x
P7.4/TA0.1 4 P7.4(I/O) 0 = Input, 1 = Output 0 0
TA0.CCI1A 0 0 1
TA0.1 1
N/A 0 1 0
Internally tied to DVSS 1
N/A 0 1 1
Internally tied to DVSS 1
P7.5/TA1.1 5 P7.5(I/O) 0 = Input, 1 = Output 0 0
TA1.CCI1A 0 0 1
TA1.1 1
N/A 0 1 0
Internally tied to DVSS 1
N/A 0 1 1
Internally tied to DVSS 1
P7.6/TA4.1/DMAE0/COUT 6 P7.6(I/O) 0 = Input, 1 = Output 0 0
TA4.CCI1A 0 0 1
TA4.1 1
DMAE0 0 1 0
Internally tied to DVSS 1
N/A 0 1 1
COUT 1
P7.7/TA0.2/TB0OUTH/COUT 7 P7.7(I/O) 0 = Input, 1 = Output 0 0
TA0.CCI2A 0 0 1
TA0.2 1
TB0OUTH 0 1 0
Internally tied to DVSS 1
N/A 0 1 1
COUT 1
(1) X = Don't care
