8.2 Typical Application

The combination of low input bias, high slew rate and a rail-to-rail input and output enable the OPA2156 to serve as an accurate differential photodiode transimpedance amplifier. This application example shows the design of such a system.

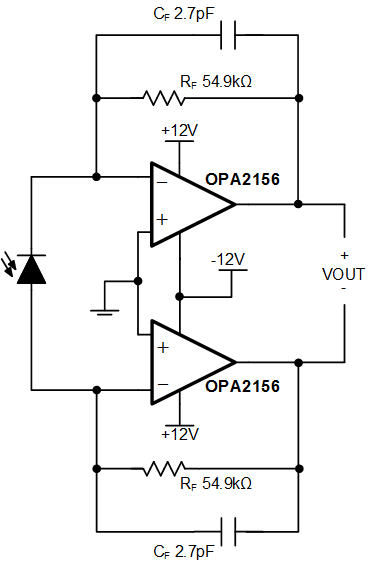

OPA2156 fbd-04-DiffPhotoDiode.gifFigure 46. OPA2156 Configured as a Differential Photodiode Transimpedance Amplifier
