6.8 Typical Characteristics

at TA = 25°C, VS = 5.5 V, VCM = VS / 2, RLOAD = 10 kΩ connected to VS / 2, and CL = 100 pF (unless otherwise noted)

OPA392 OPA2392 OPA4392 Offset Voltage Distribution
VS = 5.0 V
Figure 6-1 Offset Voltage Distribution
OPA392 OPA2392 OPA4392 Offset Voltage Distribution
VS = 5.0 V
Figure 6-3 Offset Voltage Distribution
OPA392 OPA2392 OPA4392 Offset Voltage vs Common-Mode Voltage

Figure 6-5 Offset Voltage vs Common-Mode Voltage

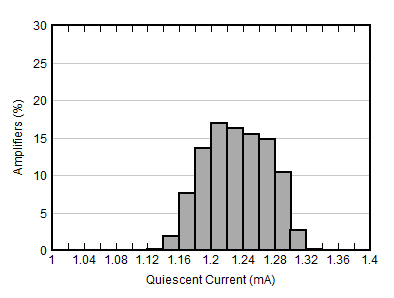

OPA392 OPA2392 OPA4392 Quiescent Current Distribution

Figure 6-7 Quiescent Current Distribution
OPA392 OPA2392 OPA4392 Open-Loop Gain and Phase vs Frequency



Figure 6-9 Open-Loop Gain and Phase vs Frequency
OPA392 OPA2392 OPA4392 Input Bias Current vs Common-Mode Voltage
 VS = 1.7 V
Figure 6-11 Input Bias Current vs Common-Mode Voltage
OPA392 OPA2392 OPA4392 Input Bias Current vs Common-Mode Voltage

Figure 6-13 Input Bias Current vs Common-Mode Voltage
OPA392 OPA2392 OPA4392 Output Voltage Swing vs Output Current (Sourcing)

Figure 6-15 Output Voltage Swing vs Output Current (Sourcing)
OPA392 OPA2392 OPA4392 Output Voltage Swing vs Output Current (Sourcing)
VS = ±0.85 V
Figure 6-17 Output Voltage Swing vs Output Current (Sourcing)
OPA392 OPA2392 OPA4392 CMRR and PSRR vs Frequency

Figure 6-19 CMRR and PSRR vs Frequency
OPA392 OPA2392 OPA4392 PSRR vs Temperature
5 Units
Figure 6-21 PSRR vs Temperature
OPA392 OPA2392 OPA4392 THD+N Ratio vs Frequency
VOUT =  1 VRMS
Figure 6-23 THD+N Ratio vs Frequency
OPA392 OPA2392 OPA4392 0.1-Hz to 10-Hz Noise

Figure 6-25 0.1-Hz to 10-Hz Noise
OPA392 OPA2392 OPA4392 Quiescent Current vs Temperature
5 Units
Figure 6-27 Quiescent Current vs Temperature
OPA392 OPA2392 OPA4392 Open-Loop Output Impedance vs Frequency

Figure 6-29 Open-Loop Output Impedance vs Frequency
OPA392 OPA2392 OPA4392 Small-Signal Overshoot vs Capacitive Load (10‑mV Step)
G = 1
Figure 6-31 Small-Signal Overshoot vs Capacitive Load (10‑mV Step)
OPA392 OPA2392 OPA4392 Positive Overload Recovery

Figure 6-33 Positive Overload Recovery
OPA392 OPA2392 OPA4392 Small-Signal Step Response (10-mV Step)
G = 1
Figure 6-35 Small-Signal Step Response (10-mV Step)
OPA392 OPA2392 OPA4392 Large-Signal Step Response (4-V Step)
G = 1
Figure 6-37 Large-Signal Step Response (4-V Step)
OPA392 OPA2392 OPA4392 Settling Time

Figure 6-39 Settling Time
OPA392 OPA2392 OPA4392 Offset Voltage Distribution
VS = 5.0 V, VCM = 4.8 V
Figure 6-2 Offset Voltage Distribution
OPA392 OPA2392 OPA4392 Offset Voltage vs Common-Mode Voltage
TA = –40°C
Figure 6-4 Offset Voltage vs Common-Mode Voltage
OPA392 OPA2392 OPA4392 Offset Voltage vs Common-Mode Voltage
TA = +125°C
Figure 6-6 Offset Voltage vs Common-Mode Voltage
OPA392 OPA2392 OPA4392 Quiescent Current Distribution
VS = 1.7 V
Figure 6-8 Quiescent Current Distribution
OPA392 OPA2392 OPA4392 Closed-Loop Gain vs Frequency

Figure 6-10 Closed-Loop Gain vs Frequency
OPA392 OPA2392 OPA4392 Input Bias Current vs Common-Mode Voltage
 VS = 3.3 V
Figure 6-12 Input Bias Current vs Common-Mode Voltage
OPA392 OPA2392 OPA4392 Input Bias Current vs Temperature

Figure 6-14 Input Bias Current vs Temperature
OPA392 OPA2392 OPA4392 Output Voltage Swing vs Output Current (Sinking)

Figure 6-16 Output Voltage Swing vs Output Current (Sinking)
OPA392 OPA2392 OPA4392 Output Voltage Swing vs Output Current (Sinking)
VS = ±0.85 V
Figure 6-18 Output Voltage Swing vs Output Current (Sinking)
OPA392 OPA2392 OPA4392 CMRR vs Temperature
5 Units
Figure 6-20 CMRR vs Temperature
OPA392 OPA2392 OPA4392 Voltage Noise vs Frequency

Figure 6-22 Voltage Noise vs Frequency
OPA392 OPA2392 OPA4392 THD+N vs Output Amplitude
f = 1 kHz
Figure 6-24 THD+N vs Output Amplitude
OPA392 OPA2392 OPA4392 Quiescent Current vs Supply Voltage
 5 Units
Figure 6-26 Quiescent Current vs Supply Voltage
OPA392 OPA2392 OPA4392 Open-Loop Gain vs Temperature
5 Units
Figure 6-28 Open-Loop Gain vs Temperature
OPA392 OPA2392 OPA4392 Small-Signal Overshoot vs Capacitive Load (10‑mV Step)
G = –1
Figure 6-30 Small-Signal Overshoot vs Capacitive Load (10‑mV Step)
OPA392 OPA2392 OPA4392 No Phase Reversal

Figure 6-32 No Phase Reversal
OPA392 OPA2392 OPA4392 Negative Overload Recovery

Figure 6-34 Negative Overload Recovery
OPA392 OPA2392 OPA4392 Small-Signal Step Response (10-mV Step)
G = –1
Figure 6-36 Small-Signal Step Response (10-mV Step)
OPA392 OPA2392 OPA4392 Large-Signal Step Response (4-V Step)
G = –1
Figure 6-38 Large-Signal Step Response (4-V Step)
OPA392 OPA2392 OPA4392 EMIRR vs Frequency
PRF = –10 dBm
Figure 6-40 EMIRR vs Frequency
