5 Pin Configuration and Functions

DRL package is preview only.
Figure 5-1 OPA990 DBV and DRL Package(A)
5-Pin SOT-23 and SOT-553
Top View
Figure 5-2 OPA990 DCK Package
5-Pin SC70
Top View
Table 5-1 Pin Functions: OPA990
PIN I/O DESCRIPTION
NAME DBV and DRL DCK
IN+ 3 1 I Noninverting input
IN– 4 3 I Inverting input
OUT 1 4 O Output
V+ 5 5 — Positive (highest) power supply
V– 2 2 — Negative (lowest) power supply
DRL package is preview only.
Figure 5-3 OPA990S DBV and DRL Package(A)
6-Pin SOT-23 and SOT-563
Top View
Table 5-2 Pin Functions: OPA990S
PIN I/O DESCRIPTION
NAME NO.
IN+ 3 I Noninverting input
IN– 4 I Inverting input
OUT 1 O Output
SHDN 5 I Shutdown: low = amplifier enabled, high = amplifier disabled. See Shutdown section for more information.
V+ 6 — Positive (highest) power supply
V– 2 — Negative (lowest) power supply
DDF and TDDF differ in pin 1 orientation within tape and reel. See Mechanical, Packaging, and Orderable Information section for more information.
Figure 5-4 OPA2990 D, DDF, DGK, PW, and TDDF Package(A)
8-Pin SOIC, SOT-23-8, TSSOP, and VSSOP
Top View
Connect thermal pad to V–. See Packages with an Exposed Thermal Pad section for more information.
Figure 5-5 OPA2990 DSG Package(A)
8-Pin WSON With Exposed Thermal Pad
Top View
Table 5-3 Pin Functions: OPA2990
PIN I/O DESCRIPTION
NAME NO.
IN1+ 3 I Noninverting input, channel 1
IN1– 2 I Inverting input, channel 1
IN2+ 5 I Noninverting input, channel 2
IN2– 6 I Inverting input, channel 2
OUT1 1 O Output, channel 1
OUT2 7 O Output, channel 2
V+ 8 — Positive (highest) power supply
V– 4 — Negative (lowest) power supply

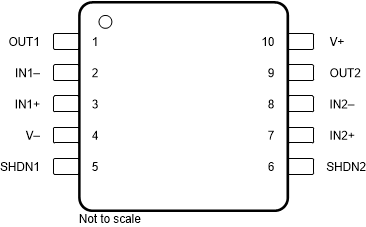

GUID-20200923-CA0I-PDLJ-ZGRX-JK959RBXDZK1-low.gifFigure 5-6 OPA2990S DGS Package
10-Pin VSSOP
Top View

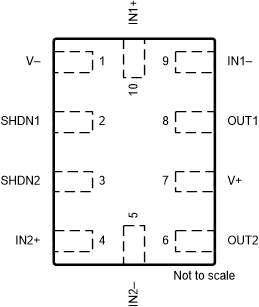

GUID-20200923-CA0I-GKL7-PBSM-D9N0XW3ZL1HM-low.gifFigure 5-7 OPA2990S RUG Package
10-Pin X2QFN
Top View
Table 5-4 Pin Functions: OPA2990S
PIN I/O DESCRIPTION
NAME VSSOP X2QFN
IN1+ 3 10 I Noninverting input, channel 1
IN1– 2 9 I Inverting input, channel 1
IN2+ 7 4 I Noninverting input, channel 2
IN2– 8 5 I Inverting input, channel 2
OUT1 1 8 O Output, channel 1
OUT2 9 6 O Output, channel 2
SHDN1 5 2 I Shutdown, channel 1: low = amplifier enabled, high = amplifier disabled. See Shutdown section for more information.
SHDN2 6 3 I Shutdown, channel 2: low = amplifier enabled, high = amplifier disabled. See Shutdown section for more information.
V+ 10 7 — Positive (highest) power supply
V– 4 1 — Negative (lowest) power supply
Figure 5-8 OPA4990 D and PW Package
14-Pin SOIC and TSSOP
Top View
Figure 5-10 OPA4990 RUC Package
14-Pin X2QFN With Exposed Thermal Pad
Top View
Connect thermal pad to V–. See Packages with an Exposed Thermal Pad section for more information.
Figure 5-9 OPA4990 RTE Package(A)
16-Pin WQFN With Exposed Thermal Pad
Top View
Table 5-5 Pin Functions: OPA4990
PIN I/O DESCRIPTION
NAME SOIC and TSSOP WQFN X2QFN
IN1+ 3 1 2 I Noninverting input, channel 1
IN1– 2 16 1 I Inverting input, channel 1
IN2+ 5 3 4 I Noninverting input, channel 2
IN2– 6 4 5 I Inverting input, channel 2
IN3+ 10 10 9 I Noninverting input, channel 3
IN3– 9 9 8 I Inverting input, channel 3
IN4+ 12 12 11 I Noninverting input, channel 4
IN4– 13 13 12 I Inverting input, channel 4
NC — 6, 7 — — Do not connect
OUT1 1 15 14 O Output, channel 1
OUT2 7 5 6 O Output, channel 2
OUT3 8 8 7 O Output, channel 3
OUT4 14 14 13 O Output, channel 4
V+ 4 2 3 — Positive (highest) power supply
V– 11 11 10 — Negative (lowest) power supply
Connect thermal pad to V–. See Packages with an Exposed Thermal Pad section for more information.

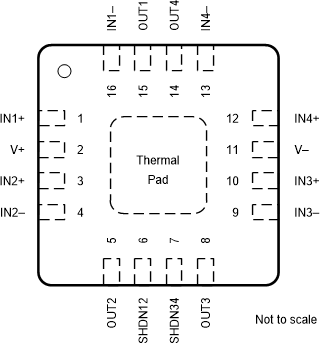

Figure 5-11 OPA4990S RTE Package(A)
16-Pin WQFN With Exposed Thermal Pad
Top View
Table 5-6 Pin Functions: OPA4990S
PIN I/O DESCRIPTION
NAME NO.
IN1+ 1 I Noninverting input, channel 1
IN1– 16 I Inverting input, channel 1
IN2+ 3 I Noninverting input, channel 2
IN2– 4 I Inverting input, channel 2
IN3+ 10 I Noninverting input, channel 3
IN3– 9 I Inverting input, channel 3
IN4+ 12 I Noninverting input, channel 4
IN4– 13 I Inverting input, channel 4
OUT1 15 O Output, channel 1
OUT2 5 O Output, channel 2
OUT3 8 O Output, channel 3
OUT4 14 O Output, channel 4
SHDN12 6 I Shutdown, channels 1 and 2: low = amplifiers enabled, high = amplifiers disabled. See Shutdown section for more information.
SHDN34 7 I Shutdown, channels 3 and 4: low = amplifiers enabled, high = amplifiers disabled. See Shutdown section for more information.
VCC+ 2 — Positive (highest) power supply
VCC– 11 — Negative (lowest) power supply
