7.11 Typical Characteristics

at TA = 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS = 48 kHz, 32-bit audio data, BCLK = 256 × fS, TDM slave mode, PLL on, differential input, channel gain = 0 dB, and linear phase decimation filter (unless otherwise noted); all performance measurements are done with a 20-kHz, low-pass filter, and an A-weighted filter

Differential input

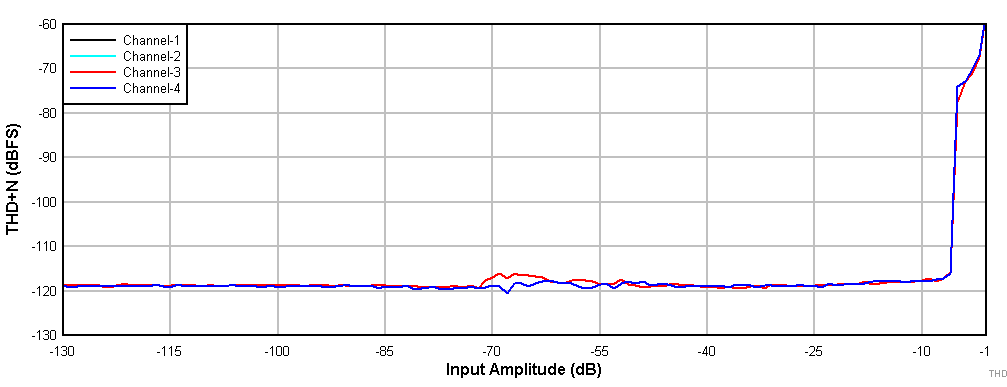

Figure 7-4 THD+N vs Input Amplitude
Differential input with AVDD = 1.8 V and VREF = 1.375 V
Figure 7-6 THD+N vs Input Amplitude

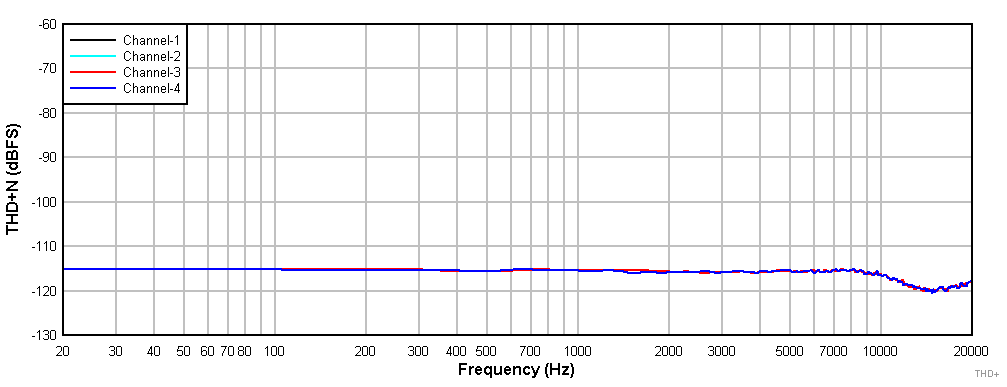

Figure 7-8 THD+N vs Input Frequency With a –1-dBr Input
Single-ended input
Figure 7-10 Input-Referred Noise vs Channel Gain
Figure 7-12 Power-Supply Rejection Ratio vs Ripple Frequency With 100-mVPP Amplitude
Figure 7-14 Differential FFT With a –60-dBr Input
Figure 7-16 Single Ended FFT With a –60-dBr Input

Figure 7-18 PDM Input THD+N vs Input Amplitude

Figure 7-20 PDM Input FFT With a –60-dBr Input
Single-ended input
Figure 7-5 THD+N vs Input Amplitude

Figure 7-7 THD+N vs Input Frequency With a –60-dBr Input
Differential input
Figure 7-9 Input-Referred Noise vs Channel Gain

Figure 7-11 Frequency Response With a –12-dBr Input
Figure 7-13 Differential FFT With Idle Input
Figure 7-15 Single Ended FFT With Idle Input
Figure 7-17 Differential FFT With a –1-dBr Input

Figure 7-19 PDM Input THD+N vs Input Frequency With a
–20-dBr Input

Figure 7-21 PDM Input Frequency Response With a
–20-dBr Input
