5 Pin Configuration and Functions

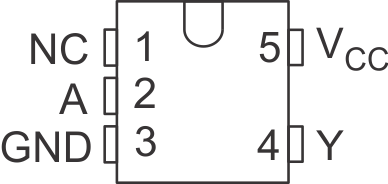

SN74LV1T04 DCK or DBV Package,5-Pin SC70 or SOT-23(Top View) Figure 5-1 DCK or DBV Package,5-Pin SC70 or SOT-23(Top View)
Table 5-1 Pin Functions
PIN TYPE(1) DESCRIPTION
NAME NO.
NC 1 — Not Internally Connected
A 2 I Input A
GND 3 G Ground
Y 4 O Output Y
VCC 5 P Positive Supply
(1) I = Input, O = Output, I/O = Input or Output, G = Ground, P = Power.
