SLOS588G June   2008  – May 2025

PRODUCTION DATA

  1.   1
  2. 1 Features
  3. 2 Applications
  4. 3 Description
  5. 4 Pin Configuration and Functions
  6. 5 Specifications
    1. 5.1 Absolute Maximum Ratings #GUID-CD5A394D-84DA-49EE-9F1D-C347D3339D1D/SLOS4567624
    2. 5.2 ESD Ratings
    3. 5.3 Recommended Operating Conditions
    4. 5.4 Thermal Information
    5. 5.5 TL4050x20-Q1 Electrical Characteristics
    6. 5.6 TL4050x25-Q1 Electrical Characteristics
    7. 5.7 TL4050x41-Q1 Electrical Characteristics
    8. 5.8 TL4050x50-Q1 Electrical Characteristics
    9. 5.9 Typical Characteristics
  7. 6 Detailed Description
    1. 6.1 Functional Block Diagram
  8. 7 Application Information
    1. 7.1 Output Capacitor
    2. 7.2 SOT-23-3 Pin Connections
    3. 7.3 Use With ADCs or DACs
    4. 7.4 Cathode and Load Currents
  9. 8 Device and Documentation Support
    1. 8.1 Documentation Support
    2. 8.2 Receiving Notification of Documentation Updates
    3. 8.3 Support Resources
    4. 8.4 Trademarks
    5. 8.5 Electrostatic Discharge Caution
    6. 8.6 Glossary
  10. 9 Revision History
  11. 10Mechanical, Packaging, and Orderable Information

Package Options

Mechanical Data (Package|Pins)
Thermal pad, mechanical data (Package|Pins)
Orderable Information

5.9 Typical Characteristics

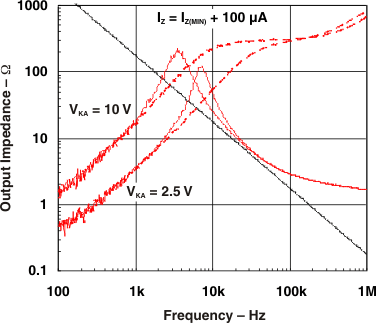

TL4050-Q1 Output Impedance versus FrequencyFigure 5-1 Output Impedance versus Frequency
TL4050-Q1 Reverse Characteristics And Minimum Operating CurrentFigure 5-3 Reverse Characteristics And Minimum Operating Current

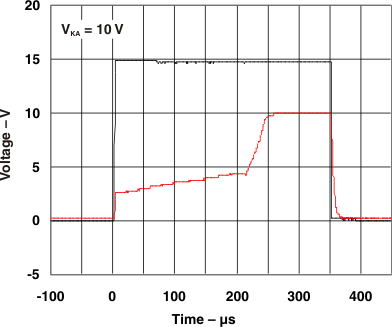

TL4050-Q1 Large Signal Pulse ResponseFigure 5-5 Large Signal Pulse Response

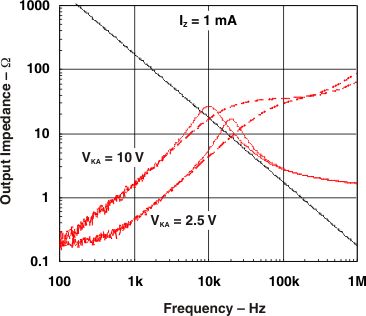

TL4050-Q1 Output Impedance versus FrequencyFigure 5-2 Output Impedance versus Frequency
TL4050-Q1 Noise Voltage versus FrequencyFigure 5-4 Noise Voltage versus Frequency
TL4050-Q1 Large Signal Pulse ResponseFigure 5-6 Large Signal Pulse Response
