SLOS191E February   1997  – July 2025 TLE2021AM , TLE2021B , TLE2021M-MIL , TLE2022AM-MIL , TLE2022BM , TLE2022M-MIL , TLE2024AM , TLE2024BM-MIL , TLE2024M

PRODUCTION DATA

  1.   1
  2. 1 Features
  3. 2 Description
  4. 3 Device Comparison Tables
  5. 4 Pin Configuration and Functions
  6. 5 Specifications
    1. 5.1  Absolute Maximum Ratings
    2. 5.2  Dissipation Ratings
    3. 5.3  Recommended Operating Conditions
    4. 5.4  Electrical Characteristics TLE2021xM, VCC = 5 V
    5. 5.5  Operating Characteristics TLE2021M, VCC = 5 V
    6. 5.6  Electrical Characteristics TLE2021xM, VCC = ±15 V
    7. 5.7  Operating Characteristics TLE2021M, VCC = ±15 V
    8. 5.8  Electrical Characteristics TLE2022xM, VCC = 5 V
    9. 5.9  Operating Characteristics TLE2022M, VCC = 5 V
    10. 5.10 Electrical Characteristics TLE2022xM, VCC = ±15 V
    11. 5.11 Operating Characteristics TLE2022M, VCC = ±15 V
    12. 5.12 Electrical Characteristics TLE2024xM, VCC = 5 V
    13. 5.13 Operating Characteristics TLE2024M, VCC = 5 V
    14. 5.14 Electrical Characteristics TLE2024xM, VCC = ±15 V
    15. 5.15 Operating Characteristics TLE2024M, VCC = ±15 V
    16. 5.16 Typical Characteristics
  7. 6 Parameter Measurement Information
    1. 6.1 Typical Values
  8. 7 Detailed Description
    1. 7.1 Functional Block Diagram
  9. 8 Application and Implementation
    1. 8.1 Application Information
      1. 8.1.1 Voltage-Follower Applications
      2. 8.1.2 Input Offset Voltage Null
      3. 8.1.3 Macromodel Information
  10. 9 Device and Documentation Support
    1. 9.1 Receiving Notification of Documentation Updates
    2. 9.2 Support Resources
    3. 9.3 Trademarks
    4. 9.4 Electrostatic Discharge Caution
    5. 9.5 Glossary
  11. 10Revision History
  12. 11Mechanical, Packaging, and Orderable Information

Package Options

Refer to the PDF data sheet for device specific package drawings

Mechanical Data (Package|Pins)
  • FK|20
  • JG|8
Thermal pad, mechanical data (Package|Pins)
Orderable Information

6 Parameter Measurement Information

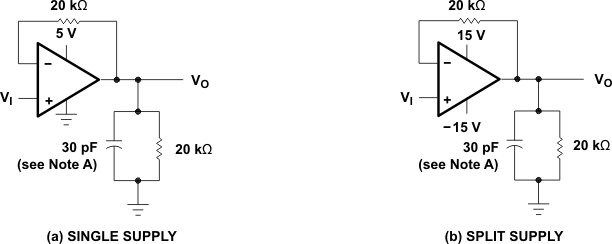

TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Slew-Rate Test Circuit
A. CL includes fixture capacitance.
Figure 6-1 Slew-Rate Test Circuit

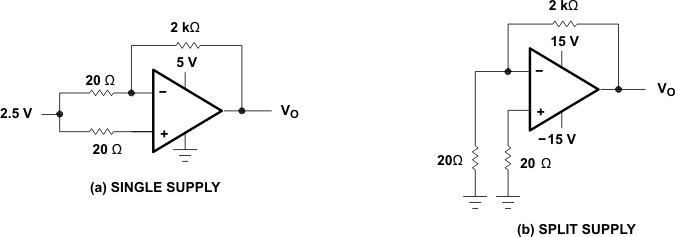

TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Noise-Voltage Test Circuit Figure 6-2 Noise-Voltage Test Circuit
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Unity-Gain Bandwidth and Phase-Margin Test Circuit
A. CL includes fixture capacitance.
Figure 6-3 Unity-Gain Bandwidth and Phase-Margin Test Circuit
TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Small-Signal Pulse-Response Test Circuit
A. CL includes fixture capacitance.
Figure 6-4 Small-Signal Pulse-Response Test Circuit
