8.1.2 Input Offset Voltage Null

The TLE202xM series offers external null pins that further reduce the input offset voltage. Figure 8-2 shows how to connect the circuit if this feature is desired. When external null is not needed, leave the null pins disconnected.

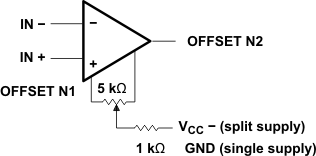

TLE2021AM TLE2021B TLE2021M-MIL TLE2022AM-MIL TLE2022BM TLE2022M-MIL TLE2024AM TLE2024BM-MIL TLE2024M Input Offset Voltage Null Circuit Figure 8-2 Input Offset Voltage Null Circuit
