8.1.1 Adding External Hysteresis

For noisy input signals, the comparator output can display multiple switching as input signals move through the switching threshold. The typical hysteresis of the TLV301x-Q1 family is 6 mV (±3mV). To increase the overall hysteresis, external hysteresis can be added by connecting a small amount of feedback to the positive input. This external hysteresis adds to the internal hysteresis. Shown below is a typical topology used to introduce external hysteresis.

Equation 1. TLV3011-Q1 TLV3012-Q1 TLV3011B-Q1 TLV3012B-Q1

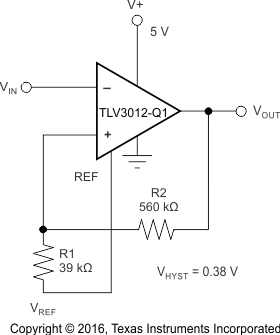

TLV3011-Q1 TLV3012-Q1 TLV3011B-Q1 TLV3012B-Q1 Adding External HysteresisFigure 8-2 Adding External Hysteresis

The VHYST voltage sets the value of the transition voltage required to switch the comparator output by increasing the threshold region, thereby reducing sensitivity to noise.
