6.8 Typical Characteristics

at TA = 25°C, V+ = 2.75V, V– = –2.75V, RL = 10kΩ connected to VS / 2, VCM = VS / 2, and VOUT = VS / 2 (unless otherwise noted)

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Offset Voltage Distribution Histogram
VS = 5V
Figure 6-1 Offset Voltage Distribution Histogram
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Input Offset Voltage vs Temperature
Figure 6-3 Input Offset Voltage vs Temperature
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Offset Voltage vs Supply Voltage
Figure 6-5 Offset Voltage vs Supply Voltage

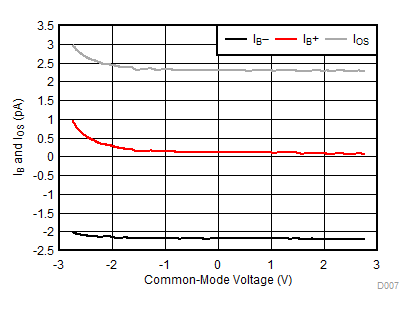

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 IB and IOS vs Common-Mode Voltage
Figure 6-7 IB and IOS vs Common-Mode Voltage
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Open-Loop Gain and Phase vs Frequency
CL = 10pF
Figure 6-9 Open-Loop Gain and Phase vs Frequency
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Closed-Loop Gain vs Frequency
CL = 10pF
Figure 6-11 Closed-Loop Gain vs Frequency
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 PSRR vs Frequency
Figure 6-13 PSRR vs Frequency
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 CMRR vs Frequency
Figure 6-15 CMRR vs Frequency
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 0.1Hz to 10Hz Integrated Voltage Noise
Figure 6-17 0.1Hz to 10Hz Integrated Voltage Noise
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 THD + N vs Frequency
VS = 5.5VVCM = 2.5VG = 1
BW = 80kHzVOUT = 0.5VRMS
Figure 6-19 THD + N vs Frequency
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Quiescent Current vs Supply Voltage
Figure 6-21 Quiescent Current vs Supply Voltage
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Open-Loop Output Impedance vs Frequency
Figure 6-23 Open-Loop Output Impedance vs Frequency
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Small Signal Overshoot vs Capacitive Load
G = –1 VIN = 100mVpp
Figure 6-25 Small Signal Overshoot vs Capacitive Load
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 No Phase Reversal
G = 1 VIN = 6.5VPP
Figure 6-27 No Phase Reversal
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Small-Signal Step Response
G = 1VIN = 100mVPPCL = 10pF
Figure 6-29 Small-Signal Step Response

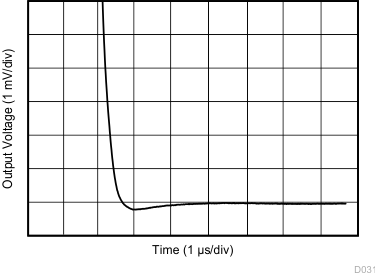

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Large-Signal Settling Time (Negative)
G = 1CL = 100pF2V step
Figure 6-31 Large-Signal Settling Time (Negative)
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Short-Circuit Current vs Temperature
Figure 6-33 Short-Circuit Current vs Temperature

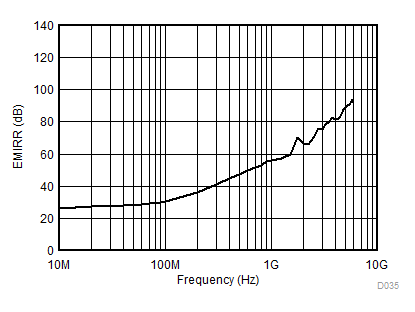

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency
Figure 6-35 Electromagnetic Interference Rejection Ratio Referred to Noninverting Input (EMIRR+) vs Frequency

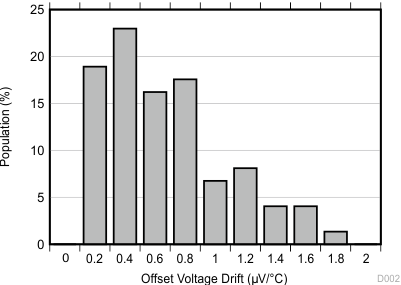

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Offset Voltage Drift Distribution Histogram
VS = 5V, TA = –40°C to +125°C
Figure 6-2 Offset Voltage Drift Distribution Histogram
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Offset Voltage vs Common-Mode
Figure 6-4 Offset Voltage vs Common-Mode

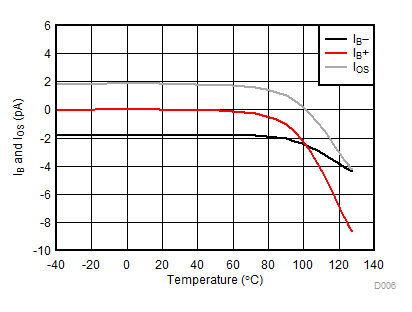

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 IB and IOS vs Temperature
Figure 6-6 IB and IOS vs Temperature
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Open-Loop Gain vs Temperature
Figure 6-8 Open-Loop Gain vs Temperature

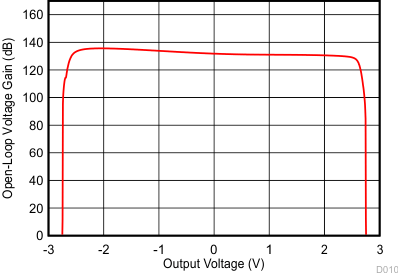

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Open-Loop Gain vs Output Voltage
Figure 6-10 Open-Loop Gain vs Output Voltage
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Output Voltage vs Output Current (Claw)
Figure 6-12 Output Voltage vs Output Current (Claw)
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 DC PSRR vs Temperature
VS = 1.8V to 5.5V
Figure 6-14 DC PSRR vs Temperature

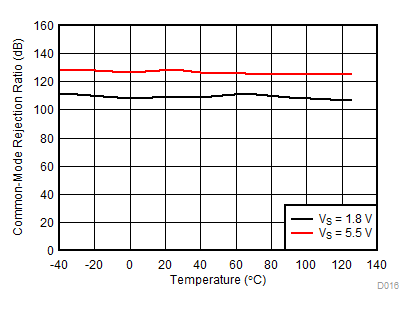

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 DC CMRR vs Temperature
VCM = (V–) – 0.1V to (V+) – 1.4V
Figure 6-16 DC CMRR vs Temperature
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Input Voltage Noise Spectral Density
Figure 6-18 Input Voltage Noise Spectral Density

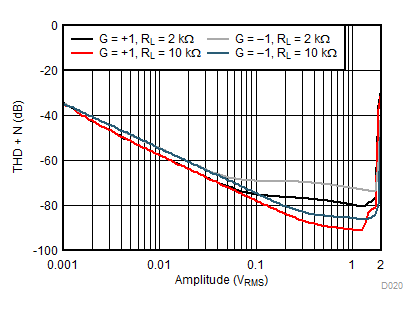

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 THD + N vs Amplitude
VS = 5.5VVCM = 2.5Vf = 1kHz
G = 1BW = 80kHz
Figure 6-20 THD + N vs Amplitude
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Quiescent Current vs Temperature
Figure 6-22 Quiescent Current vs Temperature

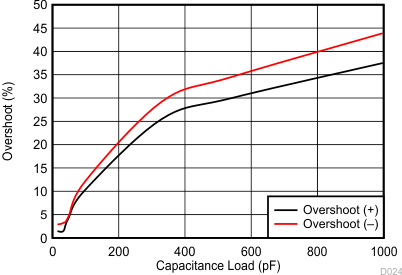

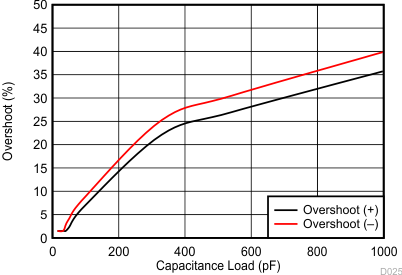

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Small Signal Overshoot vs Capacitive Load
G = 1 VIN = 100mVpp
Figure 6-24 Small Signal Overshoot vs Capacitive Load
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Phase Margin vs Capacitive Load
Figure 6-26 Phase Margin vs Capacitive Load

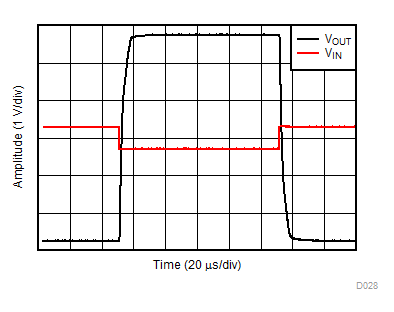

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Overload Recovery
G = –10 VIN = 600mVPP
Figure 6-28 Overload Recovery
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Large-Signal Step Response
G = 1VIN = 4VPPCL = 10pF
Figure 6-30 Large-Signal Step Response
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Large-Signal Settling Time (Positive)
G = 1CL = 100pF2V step
Figure 6-32 Large-Signal Settling Time (Positive)
TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Maximum Output Voltage vs Frequency
Figure 6-34 Maximum Output Voltage vs Frequency

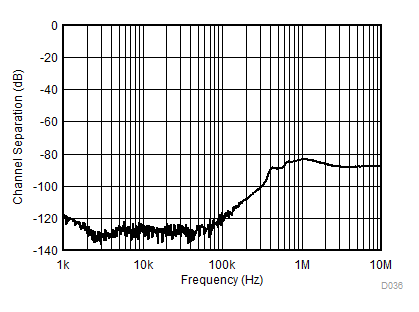

TLV9001-Q1 TLV9002-Q1 TLV9004-Q1 Channel Separation
Figure 6-36 Channel Separation
