6.8 Typical Characteristics

at T_A = 25°C, V_S = ±8 V, V_CM = V_S / 2, R_LOAD = 10 kΩ connected to V_S / 2, and C_L = 100 pF (unless otherwise noted)

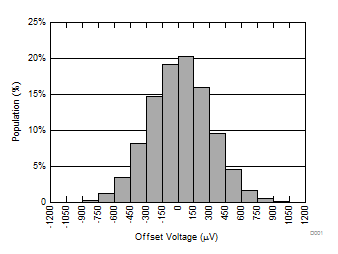

Distribution from 13, 481 amplifiers; T_A = 25°C

Figure 6-1 Offset Voltage Production Distribution

V_CM = V+
Each color represents one sample device.

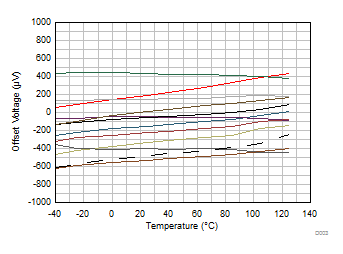

Figure 6-3 Offset Voltage vs Temperature

T_A = 25°C
Each color represents one sample device.

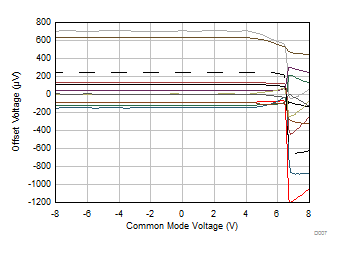

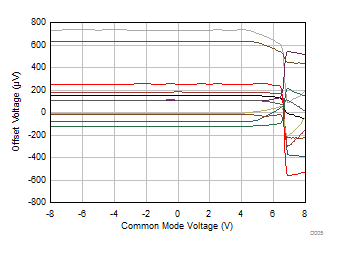

Figure 6-5 Offset Voltage vs Common-Mode Voltage

T_A = 125°C
Each color represents one sample device.

Figure 6-7 Offset Voltage vs Common-Mode Voltage

V_CM = V–
Each color represents one sample device.

Figure 6-9 Offset Voltage vs Power Supply

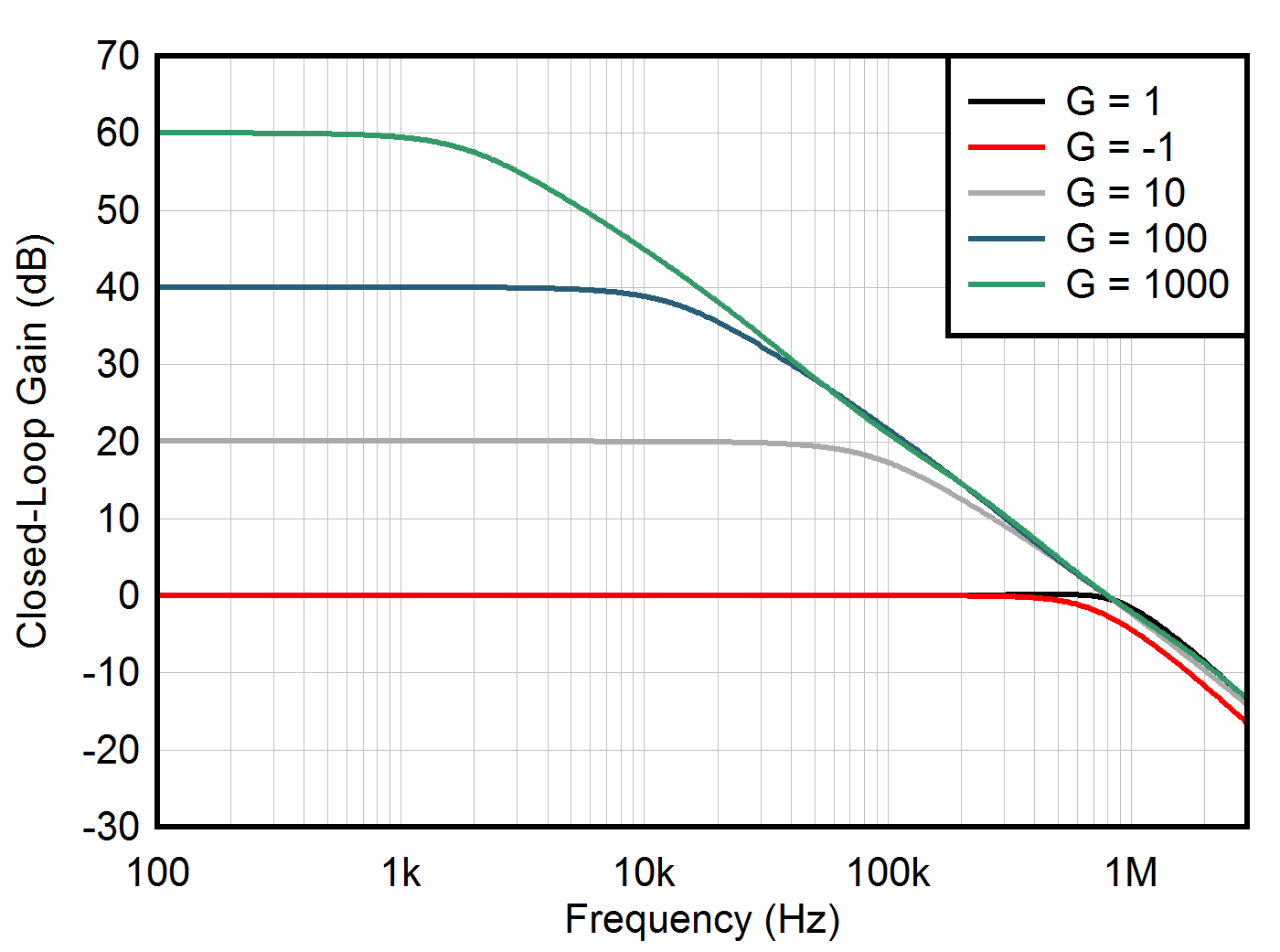

Figure 6-11 Closed-Loop Gain and Phase vs Frequency

Figure 6-13 Input Bias Current vs Temperature

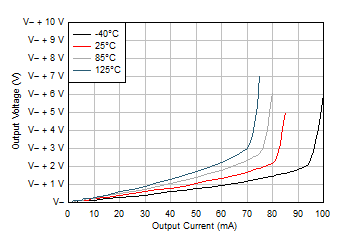

Figure 6-15 Output Voltage Swing vs Output Current (Sinking)

V_S = 5 V, R_L connected to V+

Figure 6-17 Output Voltage Swing vs Output Current (Sinking)

f = 0 Hz

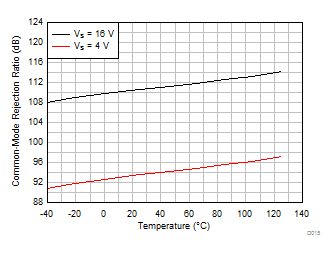

Figure 6-19 CMRR vs Temperature (dB)

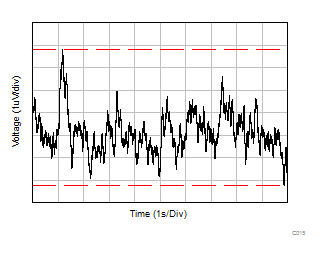

Figure 6-21 0.1-Hz to 10-Hz Noise

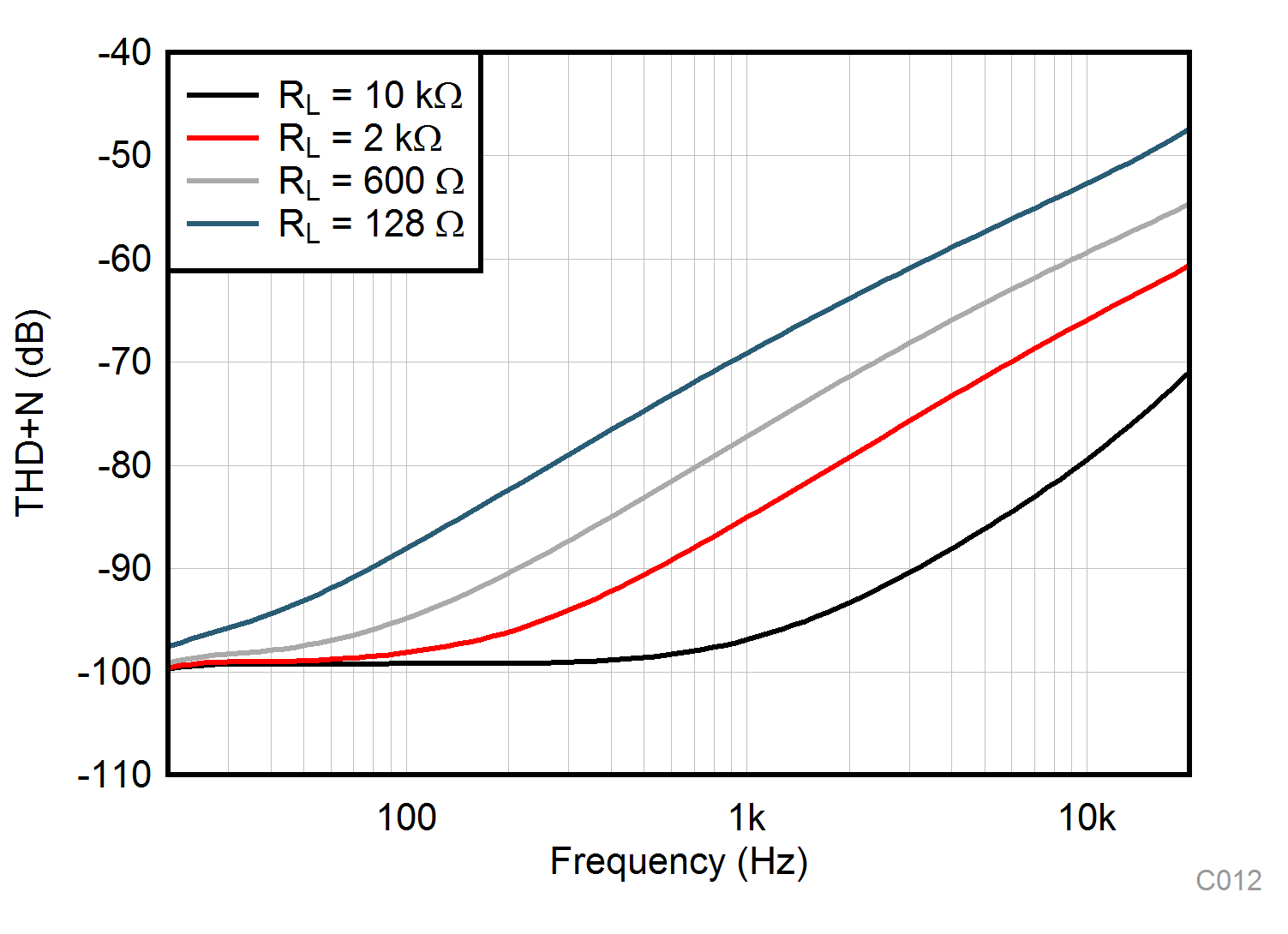

BW = 80 kHz, V_OUT = 3.5 V_RMS

Figure 6-23 THD+N Ratio vs Frequency

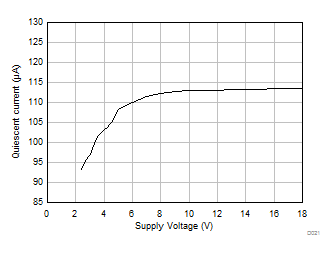

Figure 6-25 Quiescent Current per Channel vs Supply Voltage

Figure 6-27 Open-Loop Voltage Gain vs Temperature (dB)

G = –1, 100-mV output step

Figure 6-29 Small-Signal Overshoot vs Capacitive Load

G = –1, 100-mV output step

Figure 6-31 Small-Signal Overshoot vs Capacitive Load

G = –10

Figure 6-33 Positive Overload Recovery

C_L = 20 pF, G = 1, 20-mV step response

Figure 6-35 Small-Signal Step Response

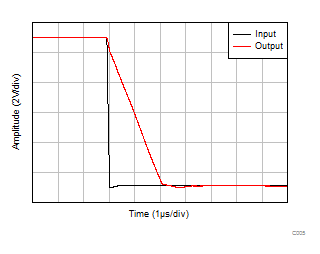

C_L = 20 pF, G = 1

Figure 6-37 Large-Signal Step Response (Falling)

C_L = 10 pF, G = –1

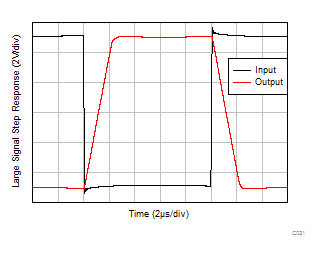

Figure 6-39 Large-Signal Step Response

Figure 6-41 Maximum Output Voltage vs Frequency

Figure 6-43 EMIRR (Electromagnetic Interference Rejection Ratio) vs Frequency

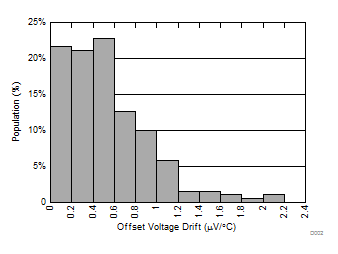

Distribution from 175 amplifiers

Figure 6-2 Offset Voltage Drift Distribution

V_CM = V–
Each color represents one sample device.

Figure 6-4 Offset Voltage vs Temperature

T_A = 25°C
Each color represents one sample device.

Figure 6-6 Offset Voltage vs Common-Mode Voltage
(Transition Region)

T_A = –40°C
Each color represents one sample device.

Figure 6-8 Offset Voltage vs Common-Mode Voltage

	C_LOAD = 15 pF

Figure 6-10 Open-Loop Gain and Phase vs Frequency

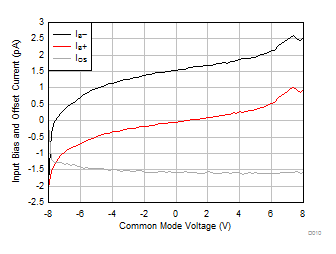

Figure 6-12 Input Bias Current vs Common-Mode Voltage

Figure 6-14 Output Voltage Swing vs Output Current (Sourcing)

V_S = 5 V, R_L connected to V–

Figure 6-16 Output Voltage Swing vs Output Current (Sourcing)

Figure 6-18 CMRR and PSRR vs Frequency

f = 0 Hz

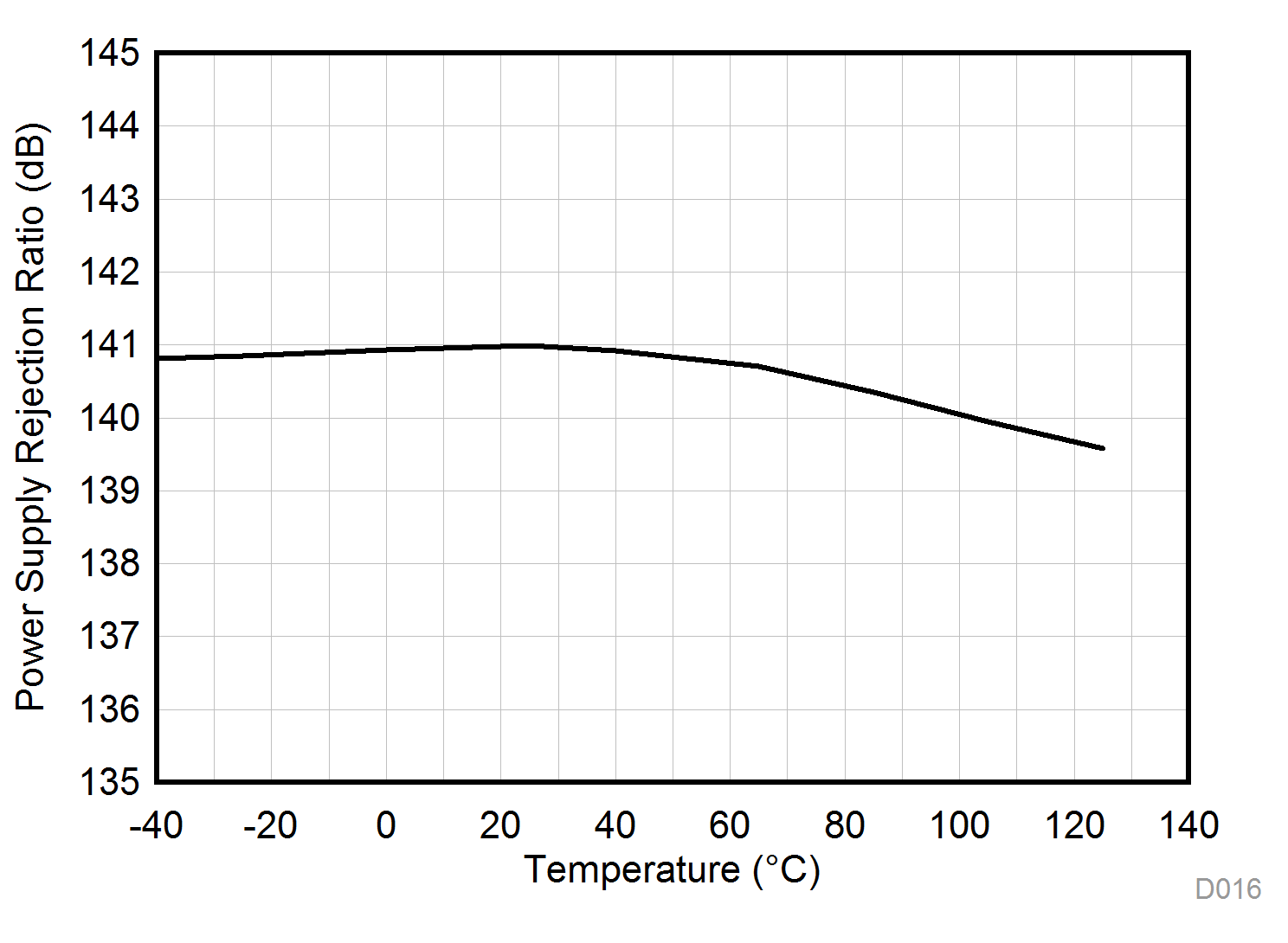

Figure 6-20 PSRR vs Temperature (dB)

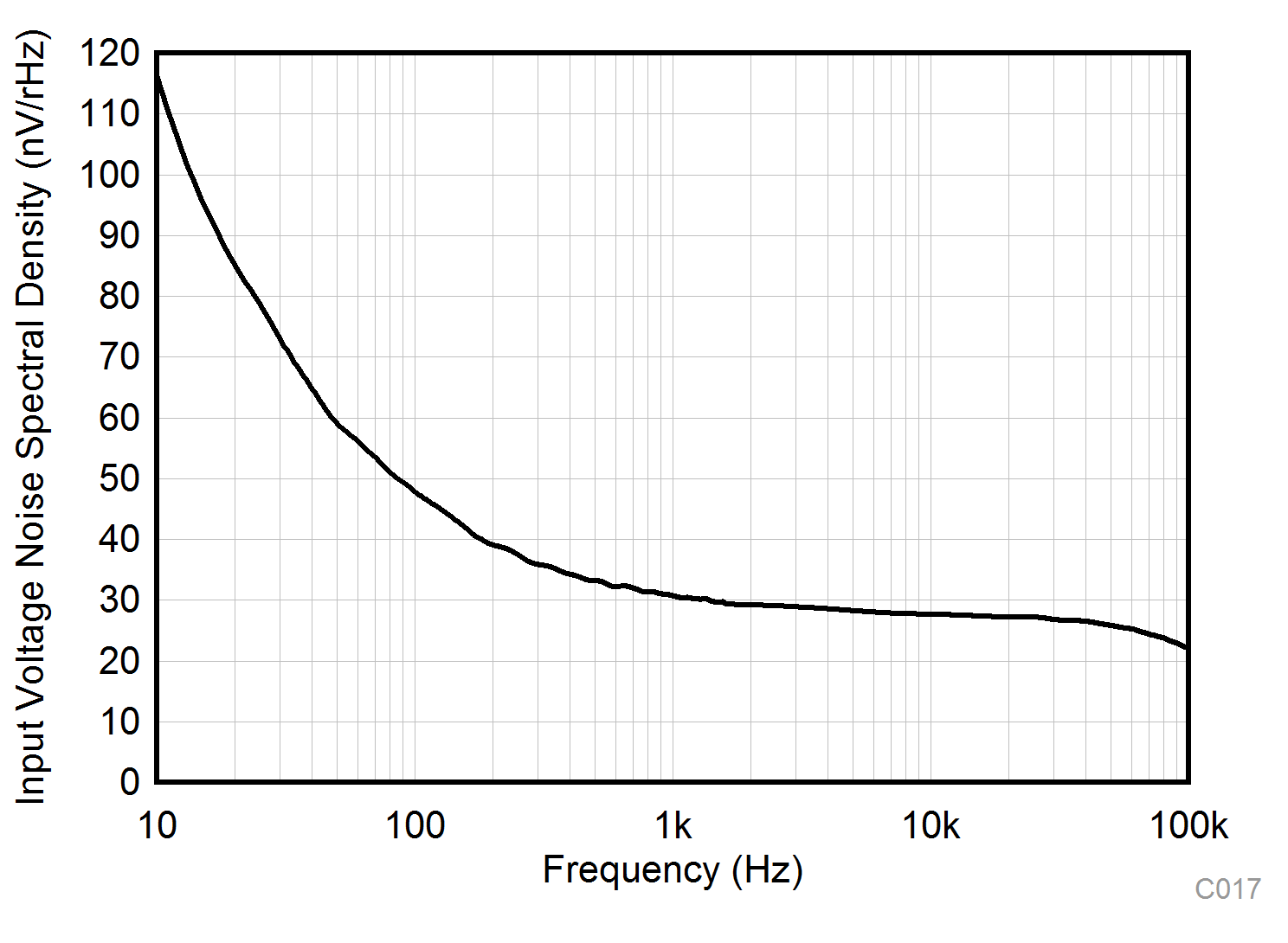

Figure 6-22 Input Voltage Noise Spectral Density vs Frequency

BW = 80 kHz, f = 1 kHz

Figure 6-24 THD+N vs Output Amplitude

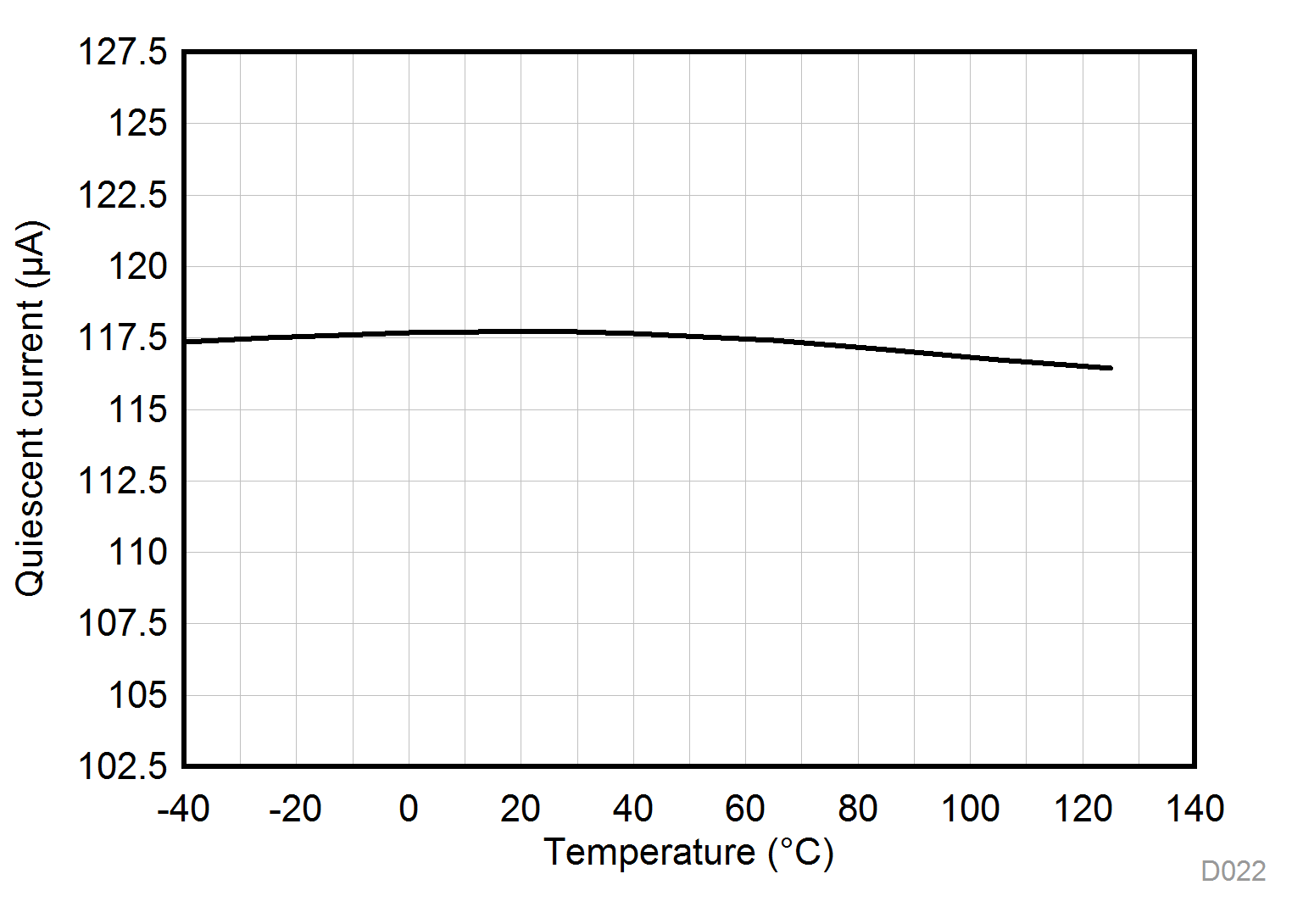

Figure 6-26 Quiescent Current per Channel vs Temperature

Figure 6-28 Open-Loop Output Impedance vs Frequency

G = 1, 100-mV output step

Figure 6-30 Small-Signal Overshoot vs Capacitive Load

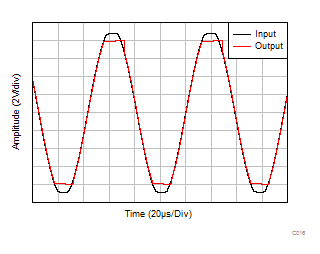

Figure 6-32 No Phase Reversal

G = –10

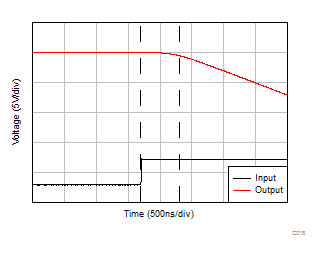

Figure 6-34 Negative Overload Recovery

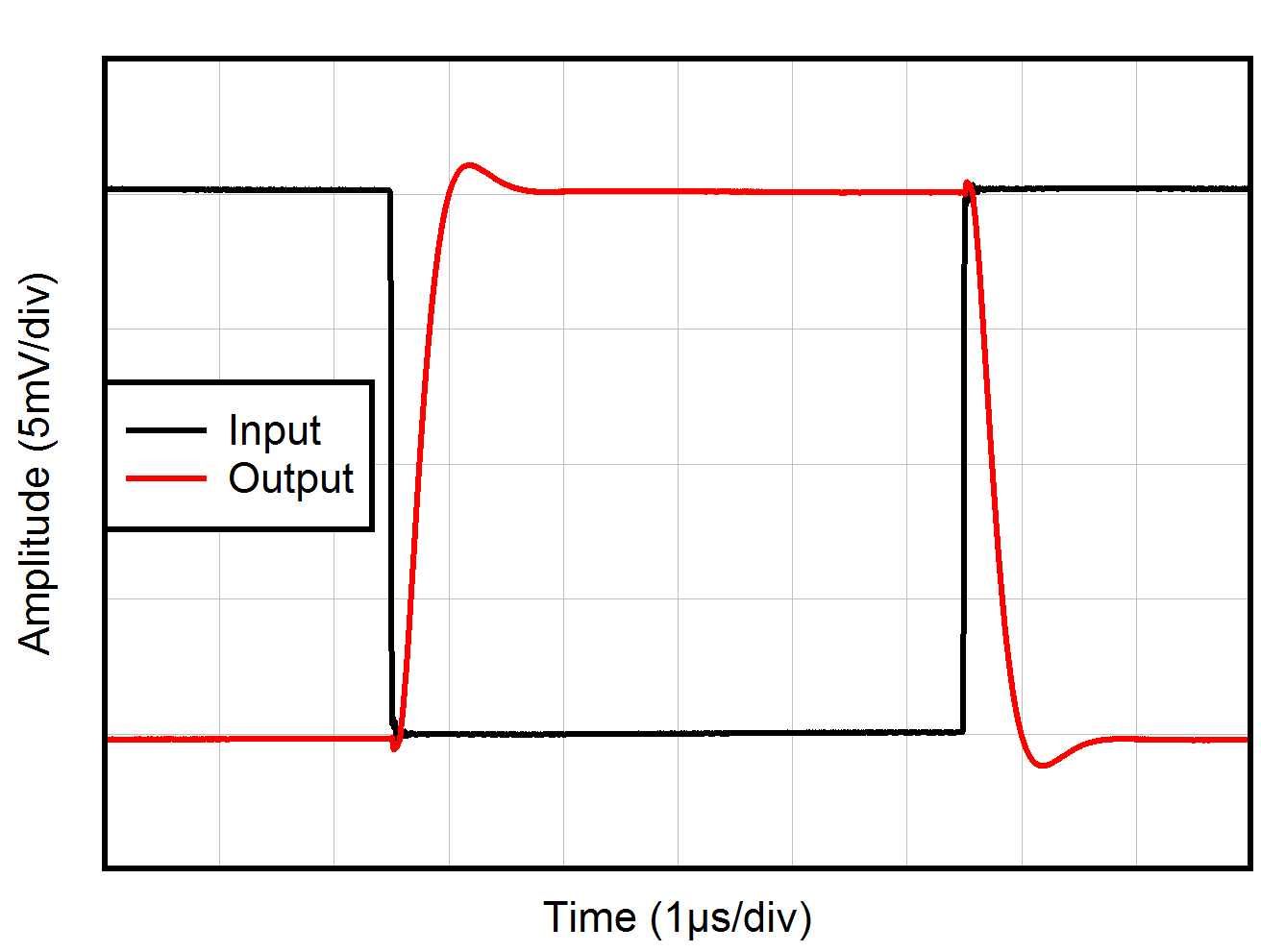

R_L = 1 kΩ, C_L = 20 pF, G = –1, 10-mV step response

Figure 6-36 Small-Signal Step Response

C_L = 20 pF, G = 1

Figure 6-38 Large-Signal Step Response (Rising)

Figure 6-40 Short-Circuit Current vs Temperature

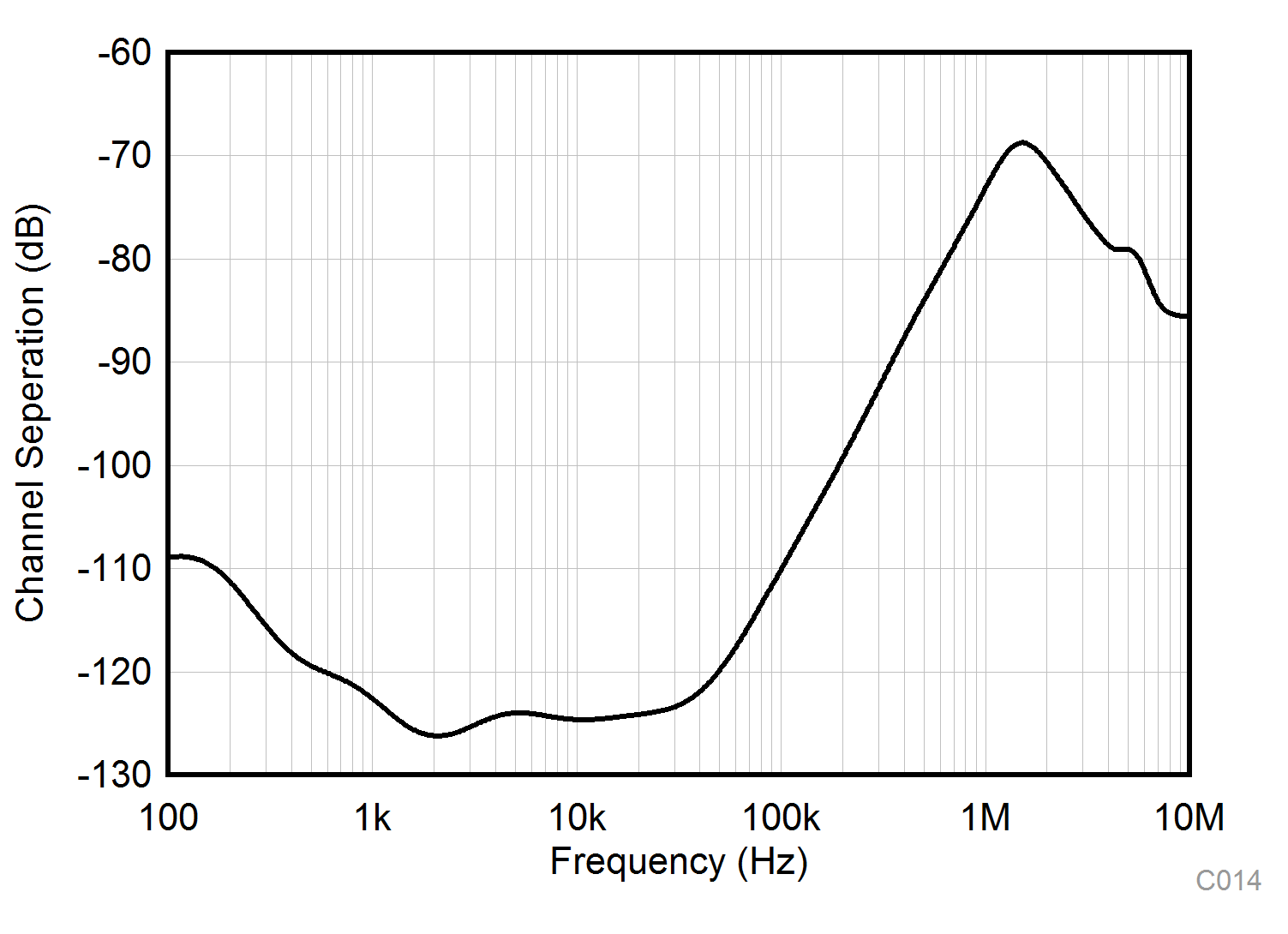

Figure 6-42 Channel Separation vs Frequency
