5 Pin Configuration and Functions

Figure 5-1 TLV9151 DBV Package
5-Pin SOT-23
(Top View)
Figure 5-2 TLV9151 DCK
5-Pin SC70
(Top View)
Table 5-1 Pin Functions: TLV9151
PIN I/O DESCRIPTION
NAME DBV DCK
+IN 3 1 I Noninverting input
–IN 4 3 I Inverting input
OUT 1 4 O Output
V+ 5 5 — Positive (highest) power supply
V– 2 2 — Negative (lowest) power supply
GUID-20200923-CA0I-FHFJ-MWVW-NKKCPKSQXHZR-low.gif Figure 5-3 TLV9151S DBV Package
6-Pin SOT-23
(Top View)
Table 5-2 Pin Functions: TLV9151S
PIN I/O DESCRIPTION
NAME NO.
+IN 3 I Noninverting input
–IN 4 I Inverting input
OUT 1 O Output
SHDN 5 I Shutdown: low = amplifier enabled, high = amplifier disabled. See Shutdown for more information.
V+ 6 — Positive (highest) power supply
V– 2 — Negative (lowest) power supply
Figure 5-4 TLV9152 D, DDF, DGK, and PW Package
8-Pin SOIC, SOT-23, TSSOP, and VSSOP
(Top View)
Connect thermal pad to V–. See Packages with and Exposed Thermal Pad for more information.
Figure 5-5 TLV9152 DSG Package(A)
8-Pin WSON With Exposed Thermal Pad
(Top View)
Table 5-3 Pin Functions: TLV9152
PIN I/O DESCRIPTION
NAME NO.
+IN A 3 I Noninverting input, channel A
+IN B 5 I Noninverting input, channel B
–IN A 2 I Inverting input, channel A
–IN B 6 I Inverting input, channel B
OUT A 1 O Output, channel A
OUT B 7 O Output, channel B
V+ 8 — Positive (highest) power supply
V– 4 — Negative (lowest) power supply

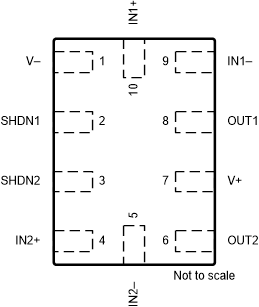

GUID-20200923-CA0I-SVLD-BBNV-0CGFTWNFSL2P-low.gif Figure 5-6 TLV9152S RUG Package
10-Pin X2QFN
(Top View)
Table 5-4 Pin Functions: TLV9152S
PIN I/O DESCRIPTION
NAME NO.
+IN A 10 I Noninverting input, channel A
+IN B 4 I Noninverting input, channel B
–IN A 9 I Inverting input, channel A
–IN B 5 I Inverting input, channel B
OUT A 8 O Output, channel A
OUT B 6 O Output, channel B
SHDN1 2 I Shutdown, channel 1: low = amplifier enabled, high = amplifier disabled. See Shutdown for more information.
SHDN2 3 I Shutdown, channel 2: low = amplifier enabled, high = amplifier disabled. See Shutdown for more information.
V+ 7 — Positive (highest) power supply
V– 1 — Negative (lowest) power supply
Figure 5-7 TLV9154 D, PW, and DYY Packages
14-Pin SOIC, TSSOP, and SOT-23
(Top View)
Figure 5-8 TLV9154 RUC Package
14-Pin X2QFN
(Top View)
Table 5-5 Pin Functions: TLV9154
PIN I/O DESCRIPTION
NAME SOIC, TSSOP, SOT-23 X2QFN
IN1+ 3 2 I Noninverting input, channel 1
IN1– 2 1 I Inverting input, channel 1
IN2+ 5 4 I Noninverting input, channel 2
IN2– 6 5 I Inverting input, channel 2
IN3+ 10 9 I Noninverting input, channel 3
IN3– 9 8 I Inverting input, channel 3
IN4+ 12 11 I Noninverting input, channel 4
IN4– 13 12 I Inverting input, channel 4
NC — — — Do not connect
OUT1 1 14 O Output, channel 1
OUT2 7 6 O Output, channel 2
OUT3 8 7 O Output, channel 3
OUT4 14 13 O Output, channel 4
V+ 4 3 — Positive (highest) power supply
V– 11 10 — Negative (lowest) power supply
