SBOSA35A January   2021  – July 2021 TMCS1107

PRODUCTION DATA

  1. 1 Features
  2. 2 Applications
  3. 3 Description
  4. 4 Revision History
  5. 5 Device Comparison
  6. 6 Pin Configuration and Functions
  7. 7 Specifications
    1. 7.1  Absolute Maximum Ratings
    2. 7.2  ESD Ratings
    3. 7.3  Recommended Operating Conditions
    4. 7.4  Thermal Information
    5. 7.5  Power Ratings
    6. 7.6  Insulation Specifications
    7. 7.7  Safety-Related Certifications
    8. 7.8  Safety Limiting Values
    9. 7.9  Electrical Characteristics
    10. 7.10 Typical Characteristics
      1. 7.10.1 Insulation Characteristics Curves
  8. 8 Parameter Measurement Information
    1. 8.1 Accuracy Parameters
      1. 8.1.1 Sensitivity Error
      2. 8.1.2 Offset Error and Offset Error Drift
      3. 8.1.3 Nonlinearity Error
      4. 8.1.4 Power Supply Rejection Ratio
      5. 8.1.5 Common-Mode Rejection Ratio
      6. 8.1.6 External Magnetic Field Errors
    2. 8.2 Transient Response Parameters
      1. 8.2.1 Slew Rate
      2. 8.2.2 Propagation Delay and Response Time
      3. 8.2.3 Current Overload Parameters
      4. 8.2.4 CMTI, Common-Mode Transient Immunity
    3. 8.3 Safe Operating Area
      1. 8.3.1 Continuous DC or Sinusoidal AC Current
      2. 8.3.2 Repetitive Pulsed Current SOA
      3. 8.3.3 Single Event Current Capability
  9. 9 Detailed Description
    1. 9.1 Overview
    2. 9.2 Functional Block Diagram
    3. 9.3 Feature Description
      1. 9.3.1 Current Input
      2. 9.3.2 Input Isolation
      3. 9.3.3 High-Precision Signal Chain
        1. 9.3.3.1 Lifetime and Environmental Stability
        2. 9.3.3.2 Frequency Response
        3. 9.3.3.3 Transient Response
      4. 9.3.4 Internal Reference Voltage
      5. 9.3.5 Current-Sensing Measurable Ranges
    4. 9.4 Device Functional Modes
      1. 9.4.1 Power-Down Behavior
  10. 10Application and Implementation
    1. 10.1 Application Information
      1. 10.1.1 Total Error Calculation Examples
        1. 10.1.1.1 Room Temperature Error Calculations
        2. 10.1.1.2 Full Temperature Range Error Calculations
    2. 10.2 Typical Application
      1. 10.2.1 Design Requirements
      2. 10.2.2 Detailed Design Procedure
      3. 10.2.3 Application Curve
  11. 11Power Supply Recommendations
  12. 12Layout
    1. 12.1 Layout Guidelines
    2. 12.2 Layout Example
  13. 13Device and Documentation Support
    1. 13.1 Device Support
      1. 13.1.1 Development Support
    2. 13.2 Documentation Support
      1. 13.2.1 Related Documentation
    3. 13.3 Receiving Notification of Documentation Updates
    4. 13.4 Support Resources
    5. 13.5 Trademarks
    6. 13.6 Electrostatic Discharge Caution
    7. 13.7 Glossary
  14. 14Mechanical, Packaging, and Orderable Information

Package Options

Refer to the PDF data sheet for device specific package drawings

Mechanical Data (Package|Pins)
  • D|8
Thermal pad, mechanical data (Package|Pins)
Orderable Information

7.10 Typical Characteristics

Figure 7-1 TMCS1107 Sensitivity Error vs. Temperature

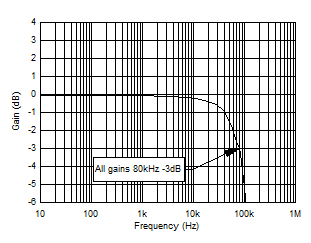

GUID-83617E96-1A29-4C2B-A85A-E17A105DCB76-low.gifFigure 7-3 Sensitivity vs. Frequency, All Gains Normalized to 1 Hz

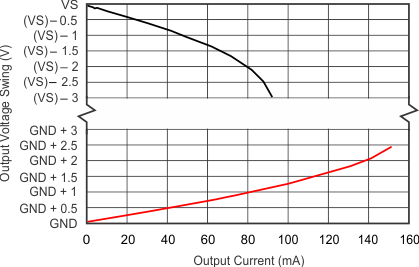

GUID-F0EED08A-DD36-4206-A991-0CDDF1F89E16-low.gifFigure 7-5 Output Swing vs. Output Current
GUID-2CBB7BE7-FE98-4126-9A25-4F0B4F576C1F-low.gifFigure 7-7 Quiescent Current vs. Temperature
GUID-0B8FE840-B9B2-40FE-8390-591FF90365F9-low.gifFigure 7-9 Voltage Output Step, Rising
GUID-F8CC3AEC-F783-46C0-B9B2-C00255386CFF-low.gifFigure 7-11 Current Overload Response

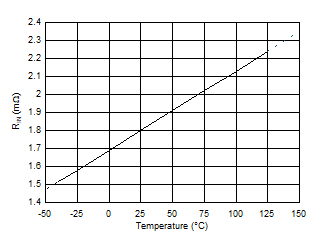

GUID-A57EF7FC-98FD-47C6-BBF1-D63F29BF0DC5-low.gifFigure 7-13 Input Conductor Resistance vs. Temperature
Figure 7-2 TMCS1107 Input Offset Current vs. Temperature

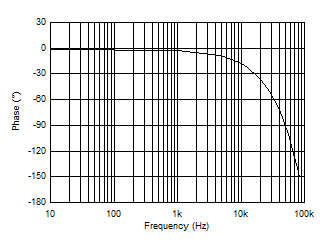

GUID-A218A869-706D-43BE-BBA1-0F5B3FBB9FCD-low.gifFigure 7-4 Phase vs. Frequency, All Gains
GUID-AC62C36B-7043-4D6F-812F-6334DE54AC02-low.gifFigure 7-6 Output Impedance vs. Frequency
GUID-DDC491A0-097C-40F1-BA32-9F6DE390431B-low.gifFigure 7-8 Input-Referred Noise vs. Frequency
GUID-62BEB43A-DE25-445B-8B42-6F16B665928B-low.gifFigure 7-10 Voltage Output Step, Falling
Figure 7-12 Startup Transient Response
