8.9.2.3 Comparator Block

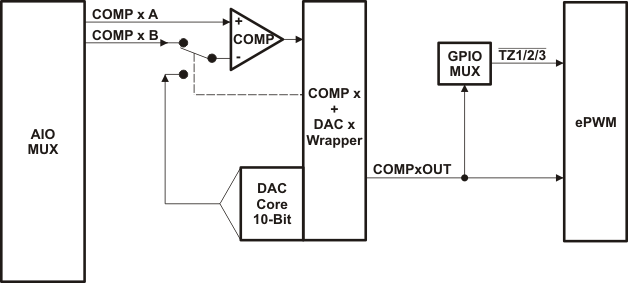

Figure 8-30 shows the interaction of the Comparator modules with the rest of the system.

GUID-26A132C4-5A61-4A72-BD3E-7FF251D56B67-low.gifFigure 8-30 Comparator Block Diagram
Table 8-24 Comparator Control Registers
REGISTER NAMECOMP1 ADDRESSCOMP2 ADDRESSCOMP3 ADDRESSSIZE
(×16)		EALLOW
PROTECTED		DESCRIPTION
COMPCTL0x64000x64200x64401YesComparator Control Register
COMPSTS0x64020x64220x64421NoComparator Status Register
DACCTL0x64040x64240x64441YesDAC Control Register
DACVAL0x64060x64260x64461NoDAC Value Register
RAMPMAXREF_
ACTIVE		0x64080x64280x64481NoRamp Generator Maximum Reference (Active) Register
RAMPMAXREF_
SHDW		0x640A0x642A0x644A1NoRamp Generator Maximum Reference (Shadow) Register
RAMPDECVAL_
ACTIVE		0x640C0x642C0x644C1NoRamp Generator Decrement Value (Active) Register
RAMPDECVAL_
SHDW		0x640E0x642E0x644E1NoRamp Generator Decrement Value (Shadow) Register
RAMPSTS0x64100x64300x64501NoRamp Generator Status Register
