6.10 Typical Characteristics

at TA = 25°C, VDD = 5V (unless otherwise noted)

TA = 25°C
Figure 6-1 On-Resistance vs Source or Drain Voltage
TA = 25°C
Figure 6-3 On-Resistance vs Source or Drain Voltage
TA = 25°C
Figure 6-5 On-Resistance vs Source or Drain Voltage
TA = 25°C
Figure 6-7 On-Leakage vs Source or Drain Voltage
VDD= 5V
Figure 6-9 Leakage Current vs Temperature
TA = 25°C
Figure 6-11 Supply Current vs Logic Voltage
TA = 25°C
Figure 6-13 Charge Injection vs Source or Drain Voltage
VDD= 5V
Figure 6-15 TON (EN) and TOFF (EN) vs Temperature
TA = 25°C
Figure 6-17 Frequency Response
VDD= 5V
Figure 6-2 On-Resistance vs Temperature
VDD= 3.3V
Figure 6-4 On-Resistance vs Temperature
TA = 25°C
Figure 6-6 On-Leakage vs Source or Drain Voltage
VDD= 3.3V
Figure 6-8 Leakage Current vs Temperature
VSEL= 5.5V
Figure 6-10 Supply Current vs Temperature
TA = 25°C
Figure 6-12 Charge Injection vs Source or Drain Voltage
TA = 25°C
Figure 6-14 TON (EN) and TOFF (EN) vs Supply Voltage
TA = 25°C

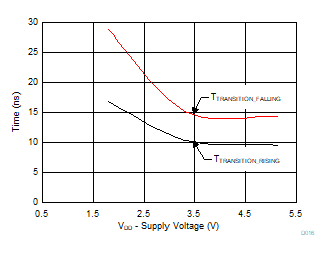

Figure 6-16 TTRANSITION vs Supply Voltage
