3 Description

The TPS22914/15 is a small, low RON, single channel load switch with controlled slew rate. The device contains an N-channel MOSFET that can operate over an input voltage range of 1.05V to 5.5V and can support a maximum continuous current of 2A. The switch is controlled by an on and off input, which is capable of interfacing directly with low-voltage control signals.

The small size and low RON makes the device designed for being use in space-constrained, battery-powered applications. The wide input voltage range of the switch makes the device a versatile design for many different voltage rails. The controlled rise time of the device greatly reduces inrush current caused by large bulk load capacitances, thereby reducing or eliminating power supply droop. The TPS22915 further reduces the total solution size by integrating a 143Ω pulldown resistor for quick output discharge (QOD) when the switch is turned off.

The TPS22914/15 is available in a small, space-saving 0.74mm × 0.74mm, 0.4mm pitch, 0.5mm height 4-pin Wafer-Chip-Scale (WCSP) package (YFP). The device is characterized for operation over the free-air temperature range of –40°C to +105°C.

Package Information
PART NUMBER PACKAGE(1) PACKAGE SIZE(2)
TPS22914B DSBGA (4) 0.74mm × 0.74mm
TPS22914C
TPS22915B
TPS22915C
(1) For more information, see Section 12.
(2) The package size (length × width) is a nominal value and includes pins, where applicable.
TPS22914B TPS22914C TPS22915B TPS22915C RON vs VIN (IOUT = –200mA)RON vs VIN (IOUT = –200mA)

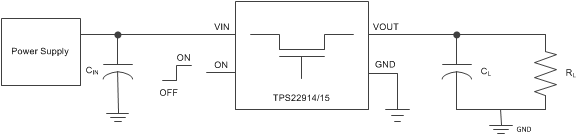

TPS22914B TPS22914C TPS22915B TPS22915C Simplified SchematicSimplified Schematic
