10.2.1 Without a GND Network

Without a GND network, tie the thermal pad directly to the board GND copper for better thermal performance.

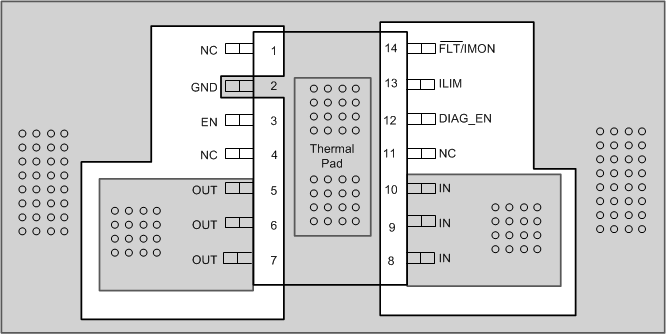

TPS27S100 Image20.gifFigure 38. Layout Without a GND Network
