7.2.3 Application Curves

VOUT = 1.2 VL = 300 nHSnubber = 1 nF + 1 Ω
fSW = 650 kHzRDCR = 0.23 mΩRBOOT = 0 Ω
Figure 7-2 Efficiency vs Output Current

VIN = 12 VVOUT = 1.2 VIOUT = 5 A

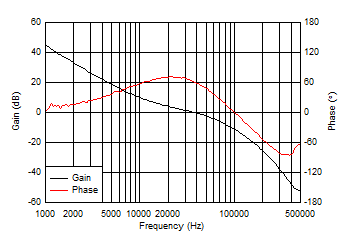

Figure 7-4 Total-Loop Bode Plot
VIN = 12 VVOUT = 1.2 VIOUT = 10 A
Figure 7-6 Shutdown from CNTL
VIN = 12 VVOUT = 1.2 VIOUT = 10 A
Figure 7-8 VOUT Steady-State Ripple
VVIN = 12 VVOUT = 1.2 V
Figure 7-3 Load Regulation
VIN = 12 VVOUT = 1.2 VIOUT = 10 A
Figure 7-5 Start-Up from EN/UVLO
VIN = 12 VVOUT = 1.2 VIOUT = 2.5 A to 7.5 A, 2.5 A/µs
Figure 7-7 Load Transient Response
