11 Layout

11.1 Layout Guidelines

  • Locate UCC27712-Q1 as close as possible to the MOSFETs in order to minimize the length of high-current traces between the HO/LO and the Gate of MOSFETs, as well as the return current path to the driver HS and COM.
  • A resistor in series with bias supply and VDD pin is recommended.
  • Locate the VDD capacitor (CVDD) and VHB capacitor (CBOOT) as close as possible to the pins of UCC27712-Q1.
  • A 2-Ω to 20-Ω resistor series with bootstrap diode is recommended to limit bootstrap current.
  • A RC filter with 10 Ω to 100 Ω and 10 pF to 220 pF for HI/LI is recommended.
  • Separate power traces and signal traces, such as output and input signals.
  • Maintain as much separation as possible from the from the low voltage pins and floating drive HB, HO and HS pins.
  • Ensure there is not high switching current flowing in the control ground (input signal reference) from the power train ground.

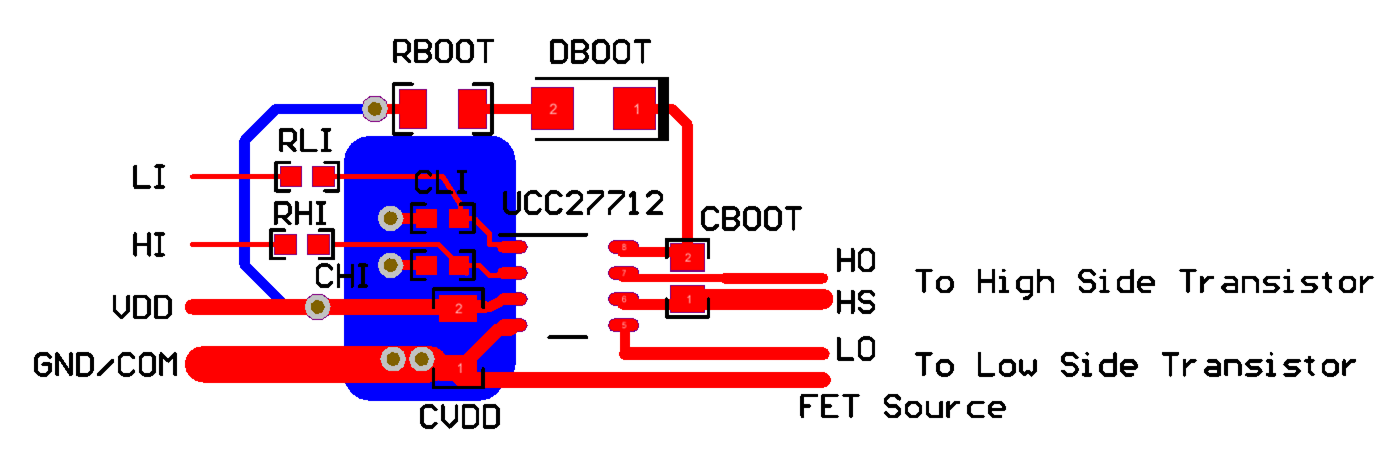

11.2 Layout Example

UCC27712-Q1 layout_slusce9.gif Figure 53. UCC27712-Q1 Layout Example
