5.6 Typical Characteristics

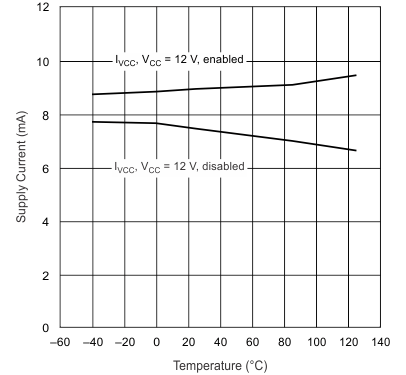

UCC28070 UCC28070A VCC Supply Current vs Junction TemperatureFigure 5-1 VCC Supply Current vs Junction Temperature

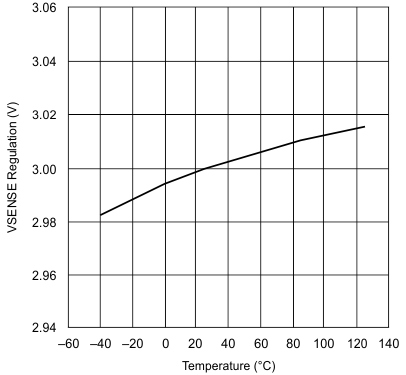

UCC28070 UCC28070A VVSENSE Regulation vs Junction TemperatureFigure 5-3 VVSENSE Regulation vs Junction Temperature
UCC28070 UCC28070A IMO, Multiplier Output Current vs VVAOFigure 5-5 IMO, Multiplier Output Current vs VVAO

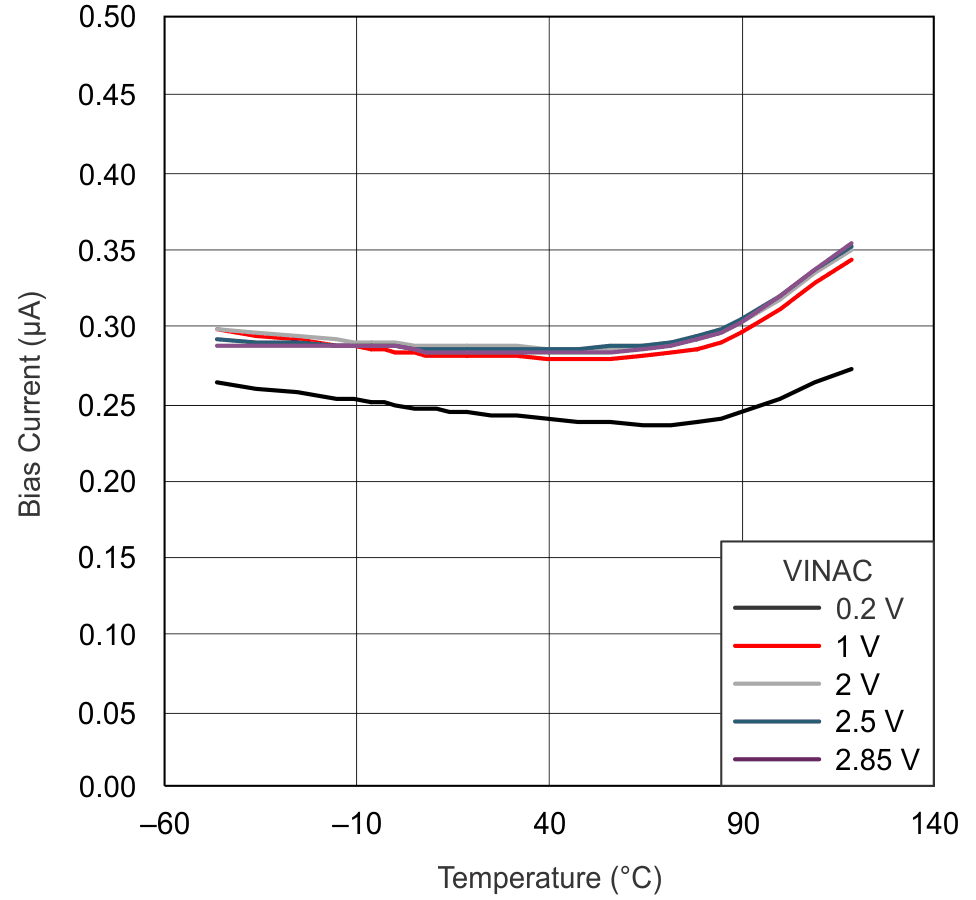

UCC28070 UCC28070A IVINAC Bias Current vs Junction TemperatureFigure 5-7 IVINAC Bias Current vs Junction Temperature
UCC28070 UCC28070A VAO, Voltage Amplifier Transconductance vs Junction TemperatureFigure 5-9 VAO, Voltage Amplifier Transconductance vs Junction Temperature
UCC28070 UCC28070A Current Amplifier Transconductance vs Junction TemperatureFigure 5-11 Current Amplifier Transconductance vs Junction Temperature

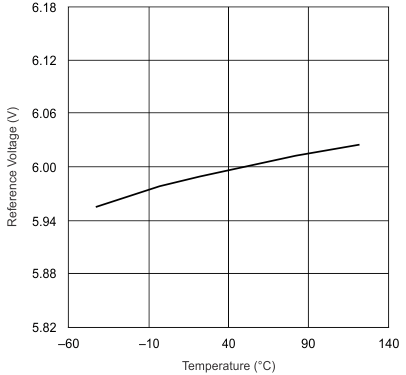

UCC28070 UCC28070A VVREF vs Junction Temperature
IVREF = 0mA
Figure 5-2 VVREF vs Junction Temperature
UCC28070 UCC28070A IVSENSE Bias Current vs Junction TemperatureFigure 5-4 IVSENSE Bias Current vs Junction Temperature

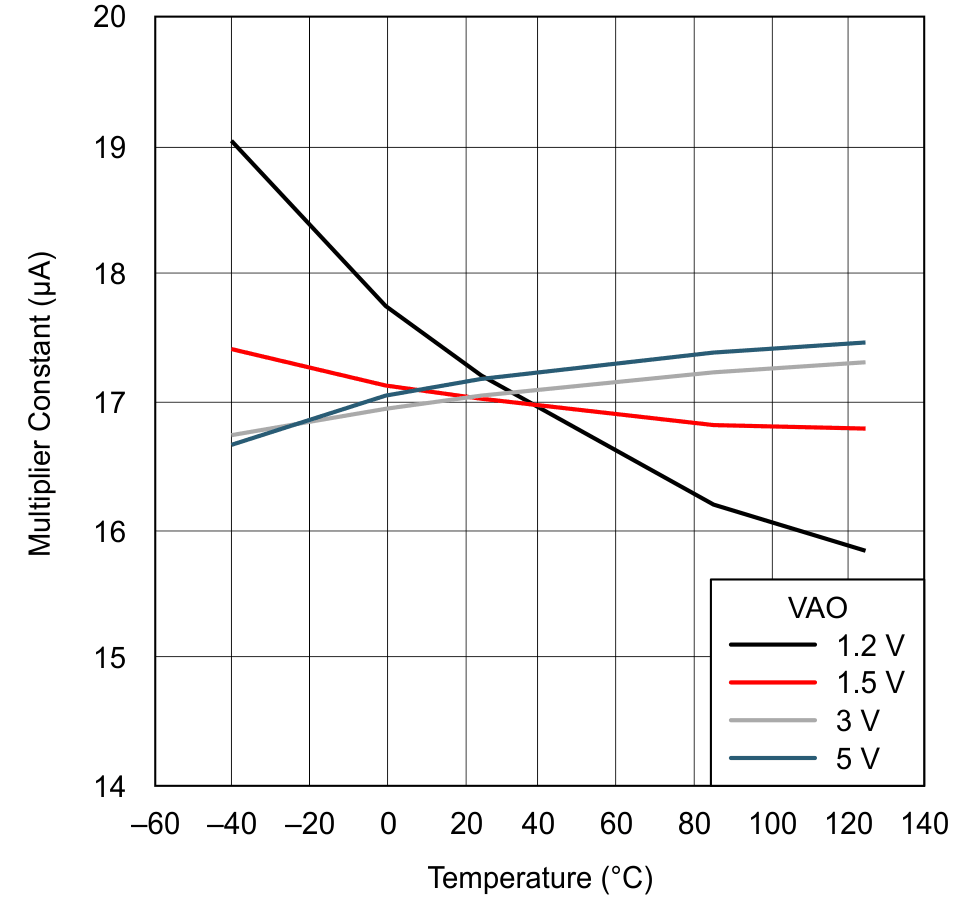

UCC28070 UCC28070A Multiplier Constant vs Junction TemperatureFigure 5-6 Multiplier Constant vs Junction Temperature

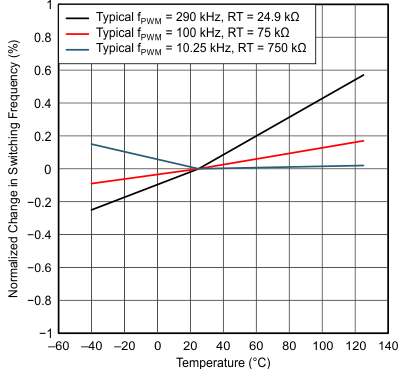

UCC28070 UCC28070A Switching Frequency vs TemperatureFigure 5-8 Switching Frequency vs Temperature

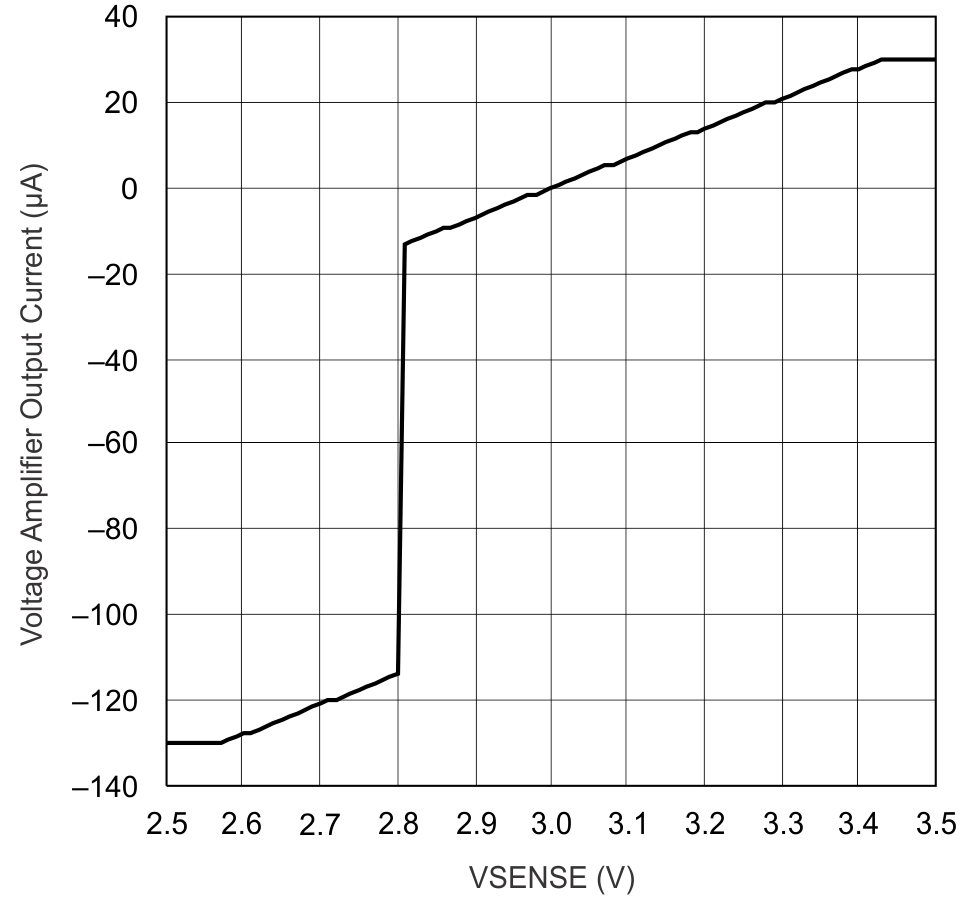

UCC28070 UCC28070A Voltage Amplifier Transfer Function vs VVSENSEFigure 5-10 Voltage Amplifier Transfer Function vs VVSENSE

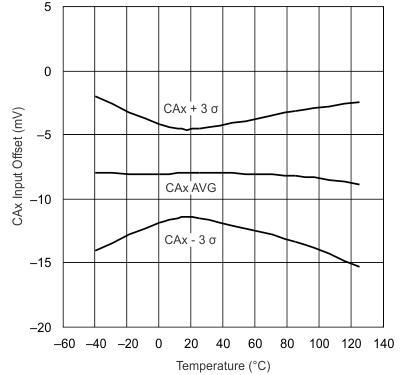

UCC28070 UCC28070A CAx Input Offset Voltage vs Junction Temperature
0.8V Common Mode
Figure 5-12 CAx Input Offset Voltage vs Junction Temperature

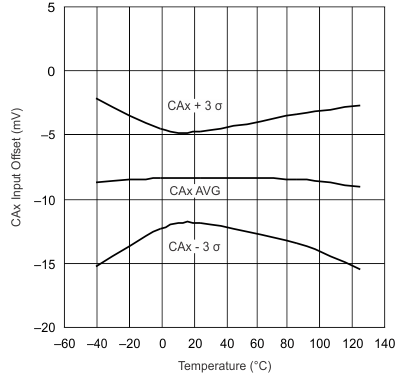

UCC28070 UCC28070A CAx Input Offset Voltage vs Junction Temperature
2V Common Mode
Figure 5-14 CAx Input Offset Voltage vs Junction Temperature
UCC28070 UCC28070A CAx Input Offset Voltage vs Junction Temperature
3.6V Common Mode
Figure 5-16 CAx Input Offset Voltage vs Junction Temperature

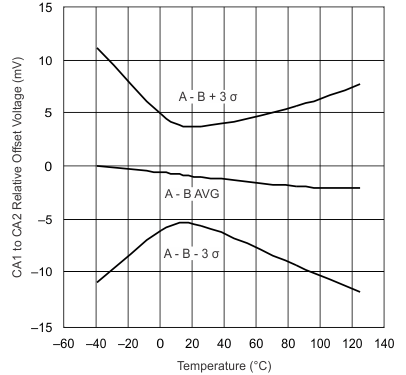

UCC28070 UCC28070A CA1 to CA2 Relative Offset vs Junction Temperature
0.8V Common Mode
Figure 5-13 CA1 to CA2 Relative Offset vs Junction Temperature
UCC28070 UCC28070A CA1 to CA2 Relative Offset vs Junction Temperature
2V Common Mode
Figure 5-15 CA1 to CA2 Relative Offset vs Junction Temperature
UCC28070 UCC28070A CA1 to CA2 Relative Offset vs Junction Temperature
3.6V Common Mode
Figure 5-17 CA1 to CA2 Relative Offset vs Junction Temperature
