8.1.1.6 Separate Charge and Discharge paths

In some systems, the charging current might be significantly lower than the discharge current. In such systems, the system designer may prefer to implement a separate charge and discharge paths in which the number of FET in parallel for charge and discharge can be different to reduce to BOM cost.

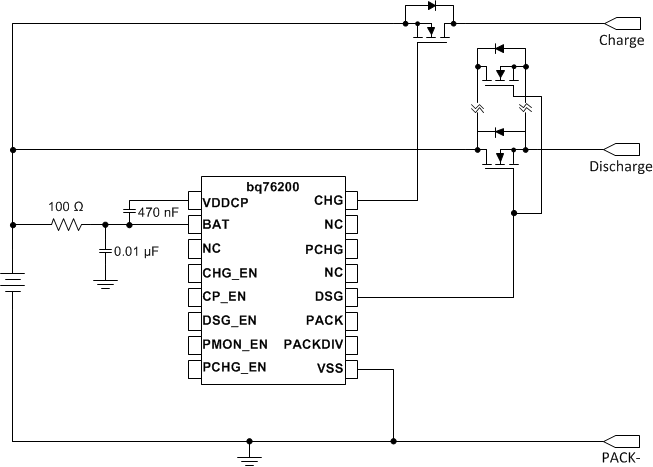

bq76200 Apps3.gifFigure 11. Separate Charge and Discharge Paths (Partial Schematic Shown)
