6.7 Typical Characteristics

Unless otherwise stated: VVS = 12 V, VIN = 12 V, VOFF = 0 V, and TJ = 25°C
LM5050-1 LM5050-1-Q1 30104834.png
Figure 3. IIN vs VIN
LM5050-1 LM5050-1-Q1 30104835.png
Figure 5. IOUT vs VOUT
LM5050-1 LM5050-1-Q1 30104836.png

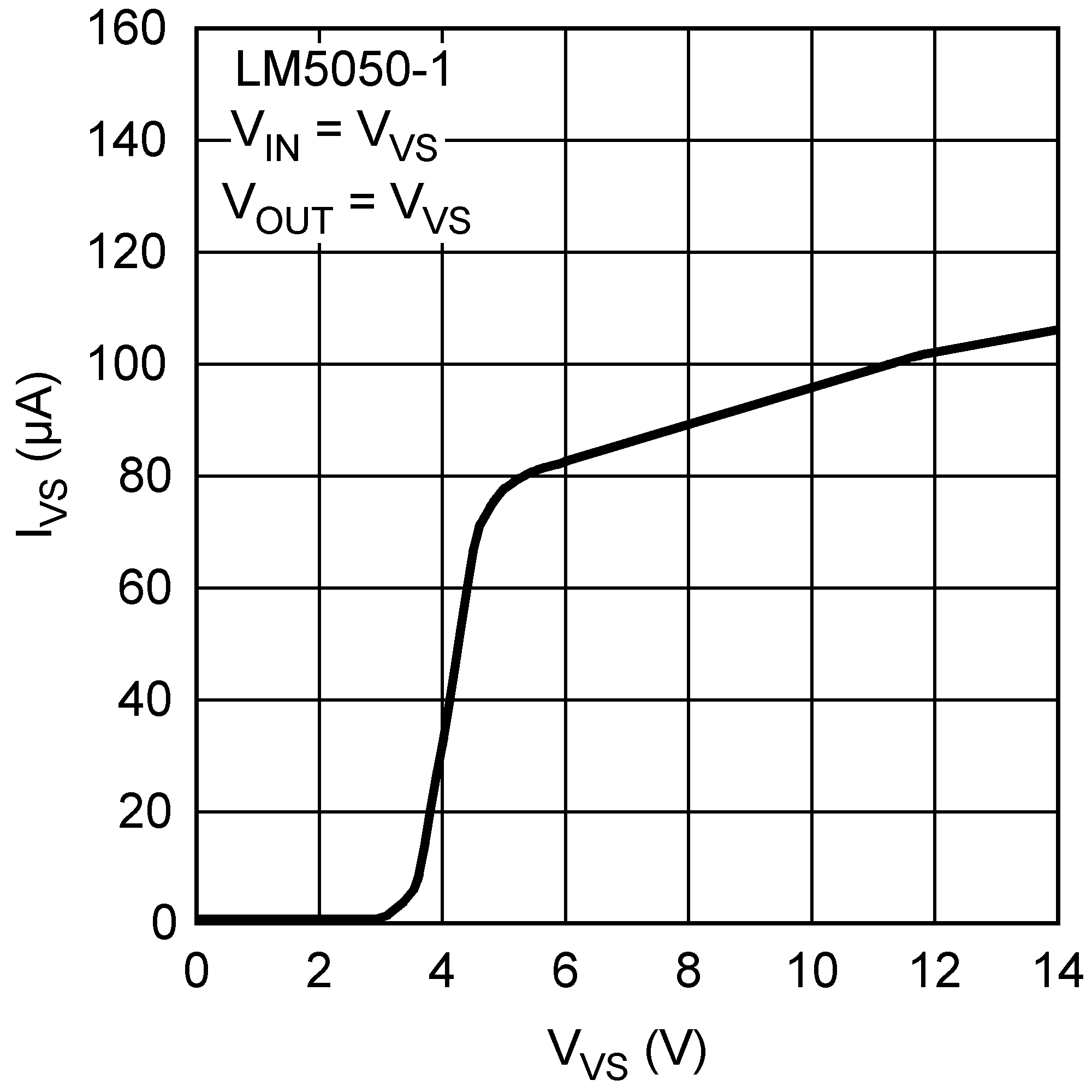

Figure 7. IVS vs VVS
LM5050-1 LM5050-1-Q1 30104811.png
Figure 9. (VGATE - VIN) vs VIN, VVS = VOUT
LM5050-1 LM5050-1-Q1 30104847.gif
Figure 11. Forward CGATE Charge Time, CGATE = 47 nF
LM5050-1 LM5050-1-Q1 30104829.png
Figure 13. VGATE - VIN vs Temperature
LM5050-1 LM5050-1-Q1 30104827.png

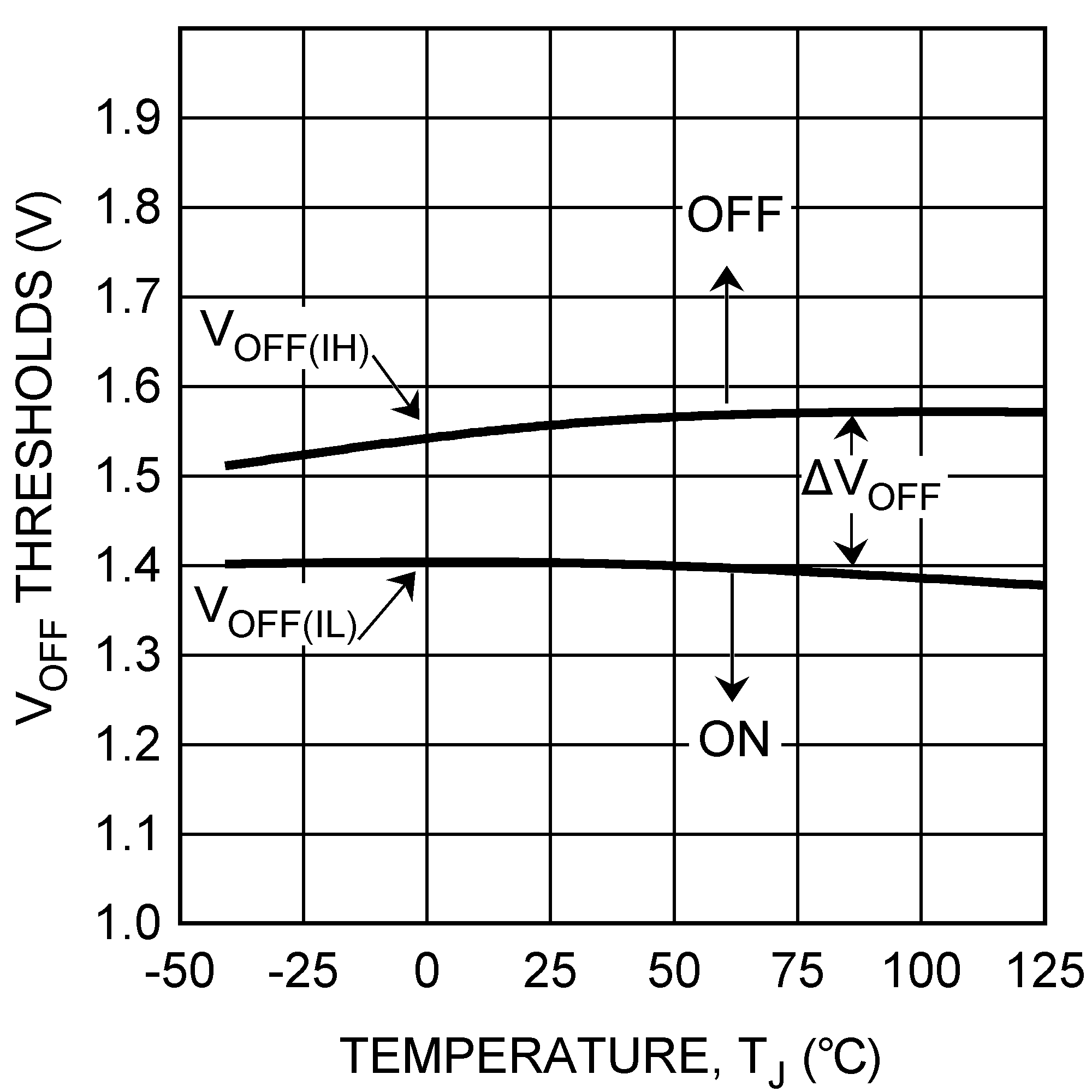

Figure 15. OFF Pin Thresholds vs Temperature
LM5050-1 LM5050-1-Q1 30104815.png
Figure 17. CGATE Charge and Discharge vs OFF Pin
LM5050-1 LM5050-1-Q1 30104817.png

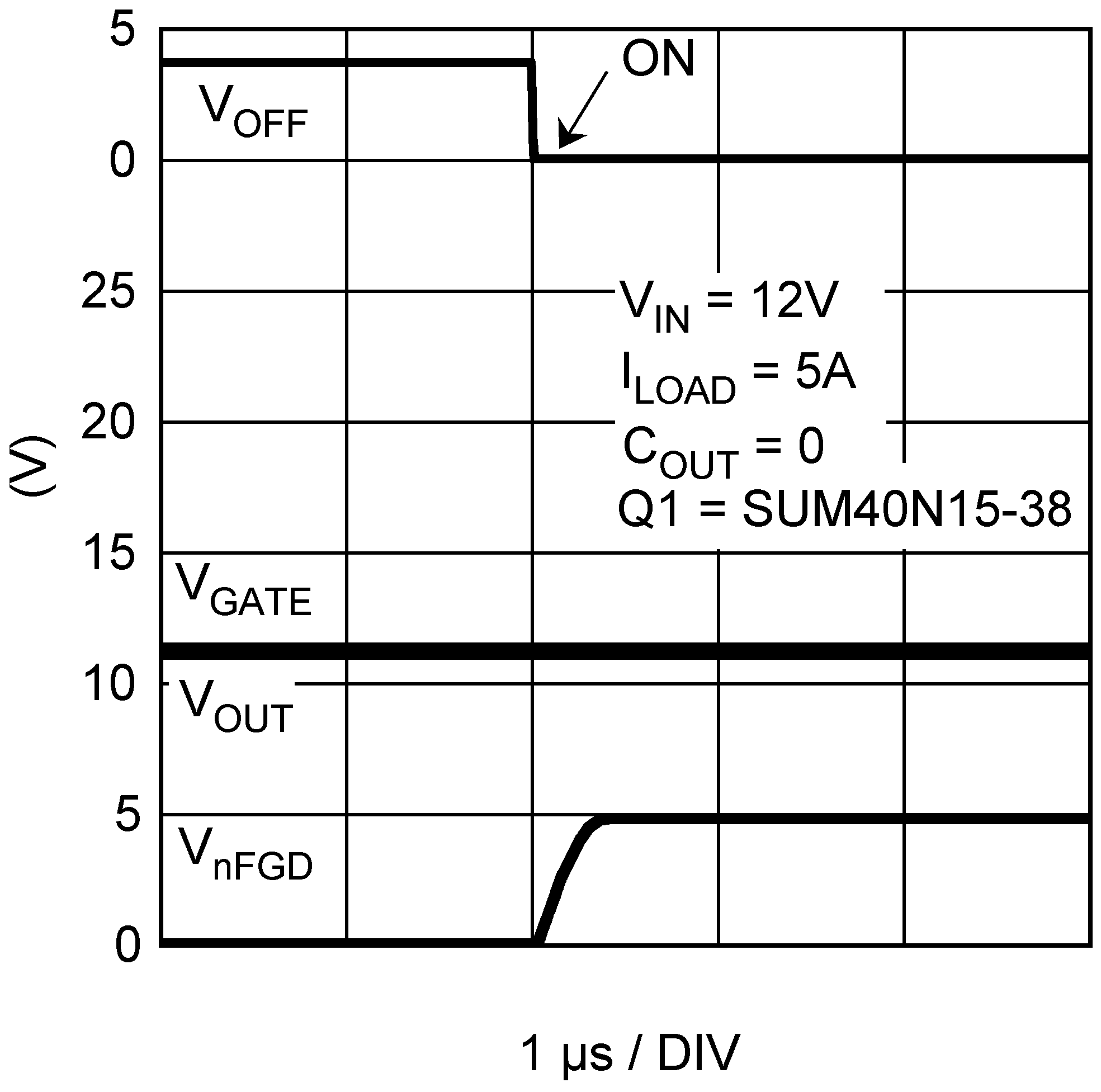

Figure 19. OFF Pin, OFF to ON Transition
LM5050-1 LM5050-1-Q1 30104819.png

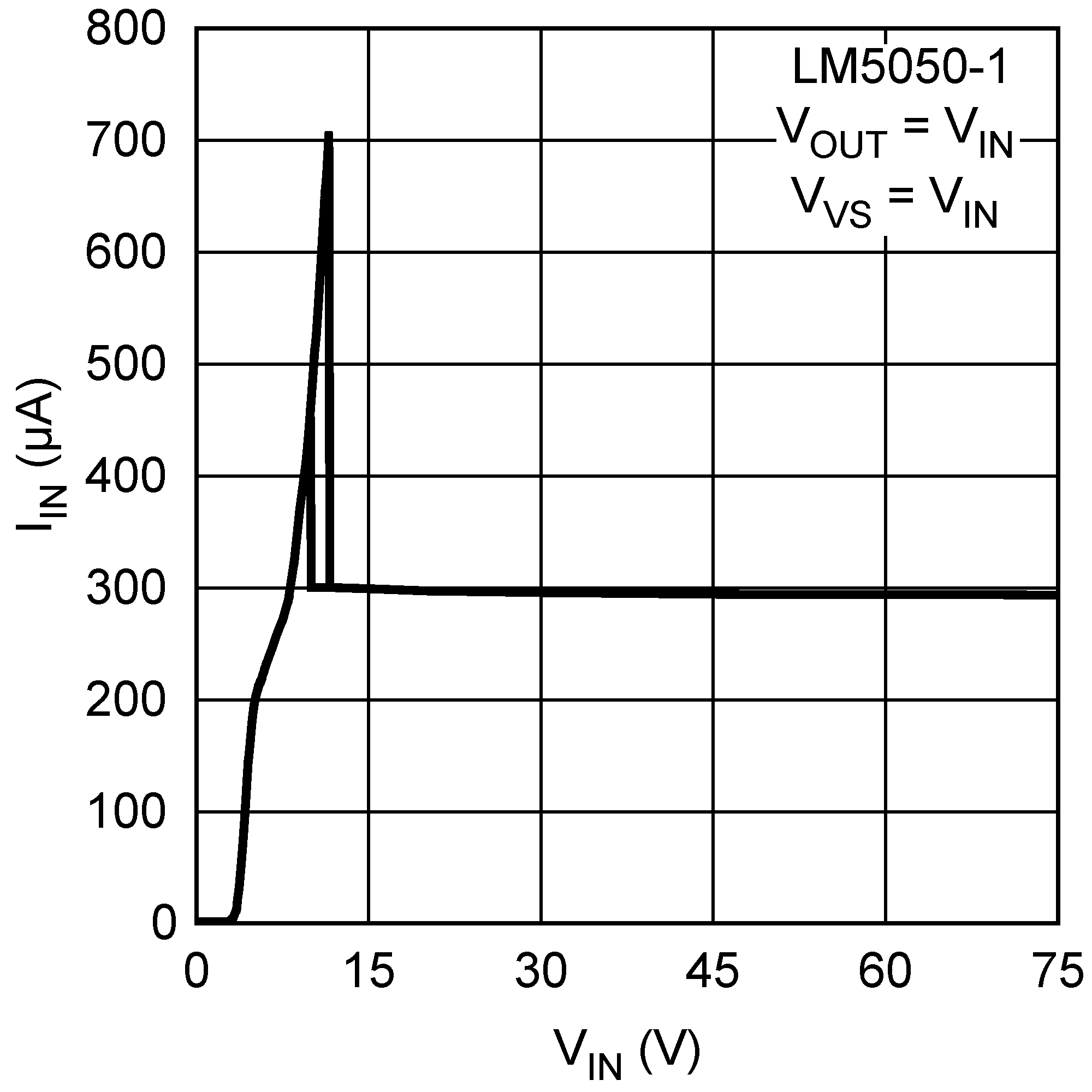

Figure 4. IIN vs VIN
LM5050-1 LM5050-1-Q1 30104820.png

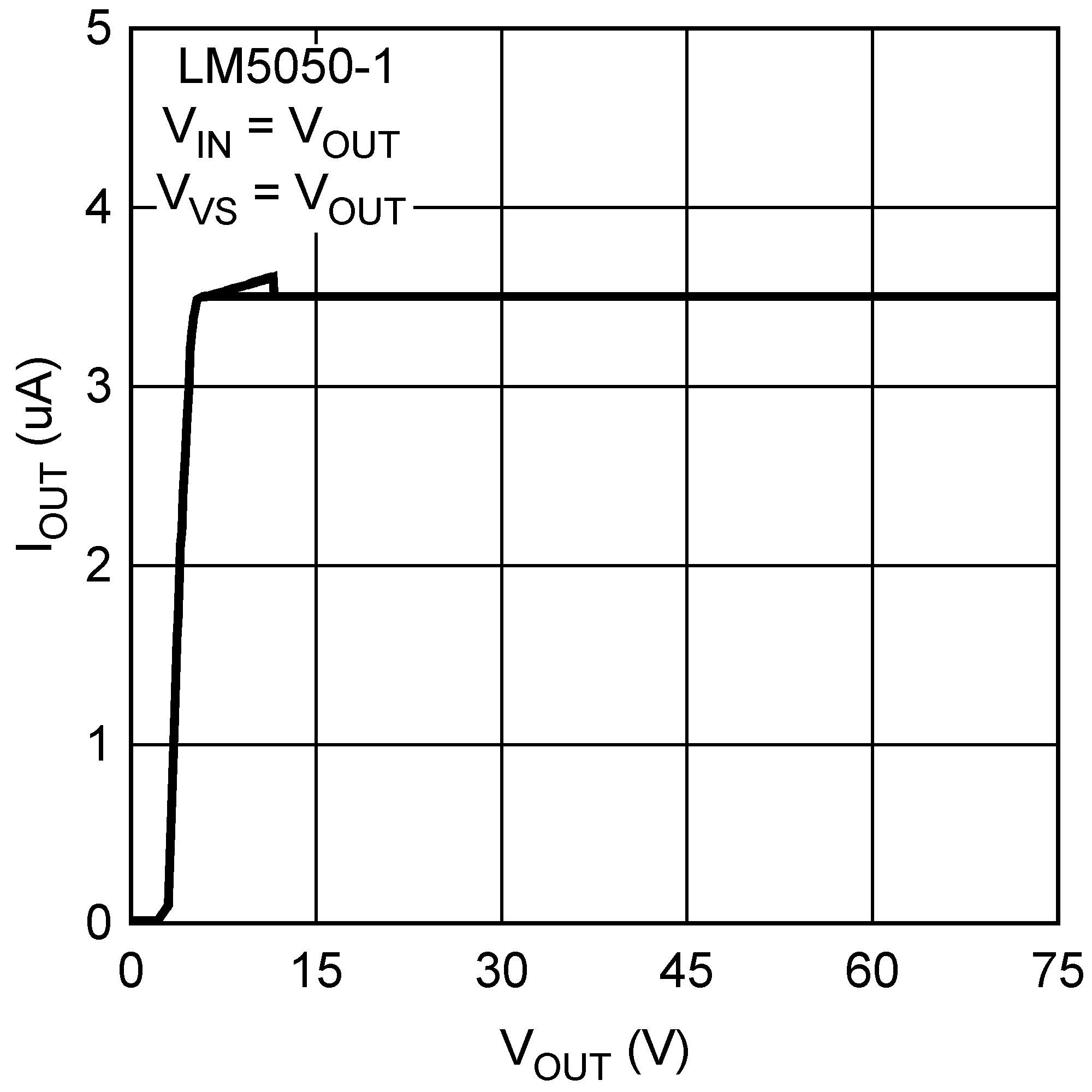

Figure 6. IOUT vs VOUT
LM5050-1 LM5050-1-Q1 30104821.png
Figure 8. IVS vs VVS
LM5050-1 LM5050-1-Q1 30104812.png

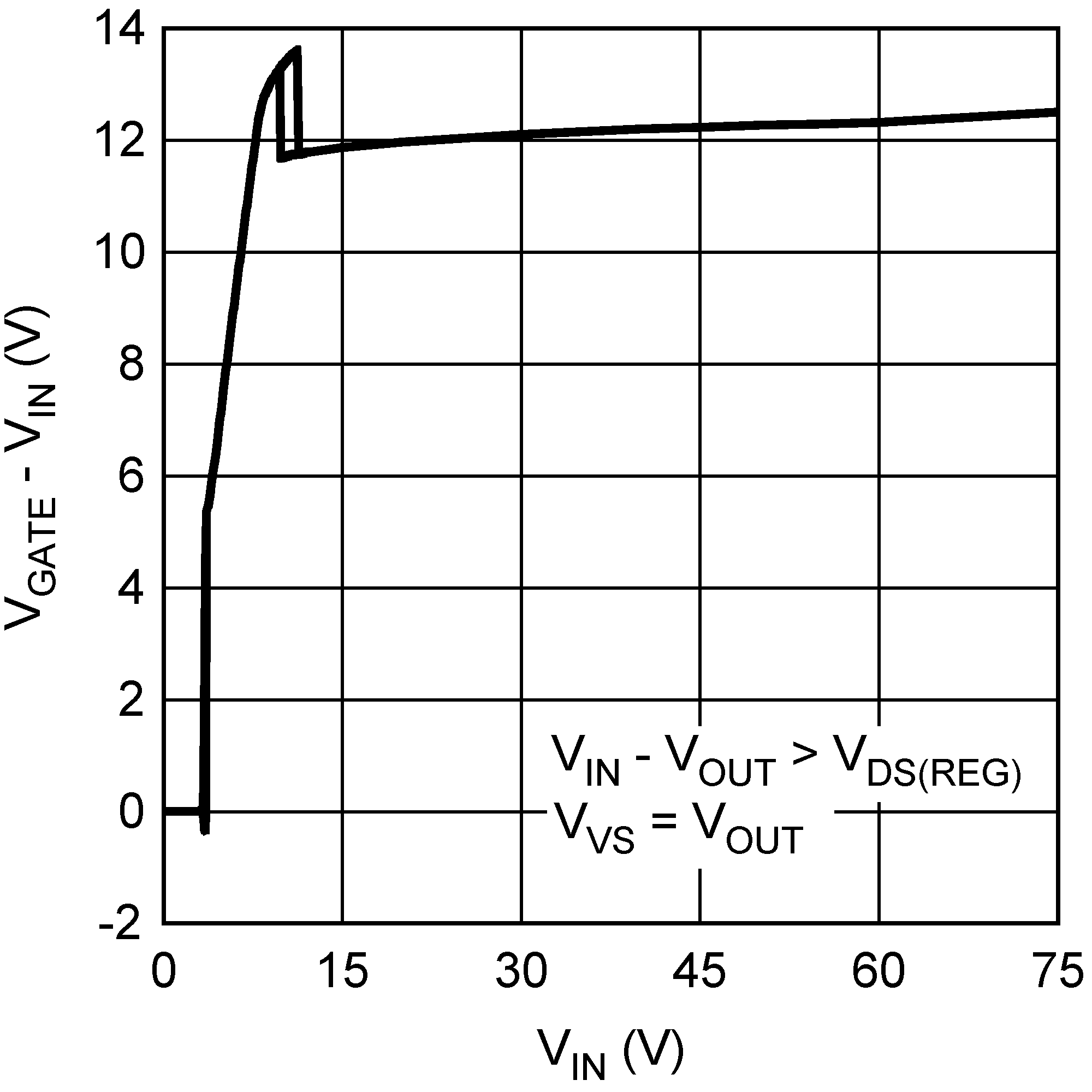

Figure 10. (VGATE - VIN) vs VIN, VVS = VOUT
LM5050-1 LM5050-1-Q1 30104846.gif
Figure 12. Reverse CGATE Discharge, CGATE = 47 nF
LM5050-1 LM5050-1-Q1 30104830.png
Figure 14. tGATE(REV) vs Temperature
LM5050-1 LM5050-1-Q1 30104828.png
Figure 16. OFF Pin Pulldown vs Temperature
LM5050-1 LM5050-1-Q1 30104816.png

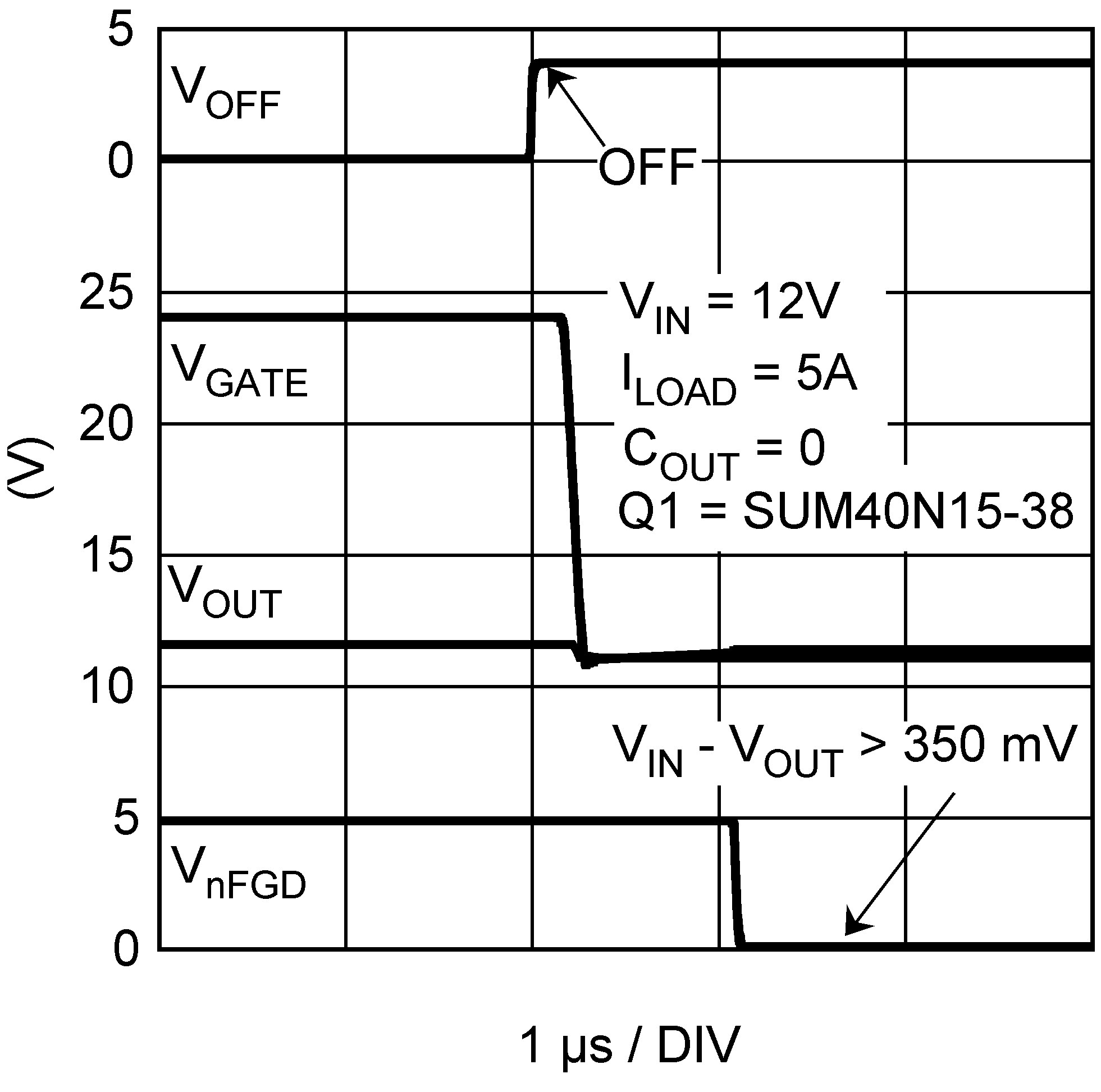

Figure 18. OFF Pin, ON to OFF Transition
LM5050-1 LM5050-1-Q1 30104818.png

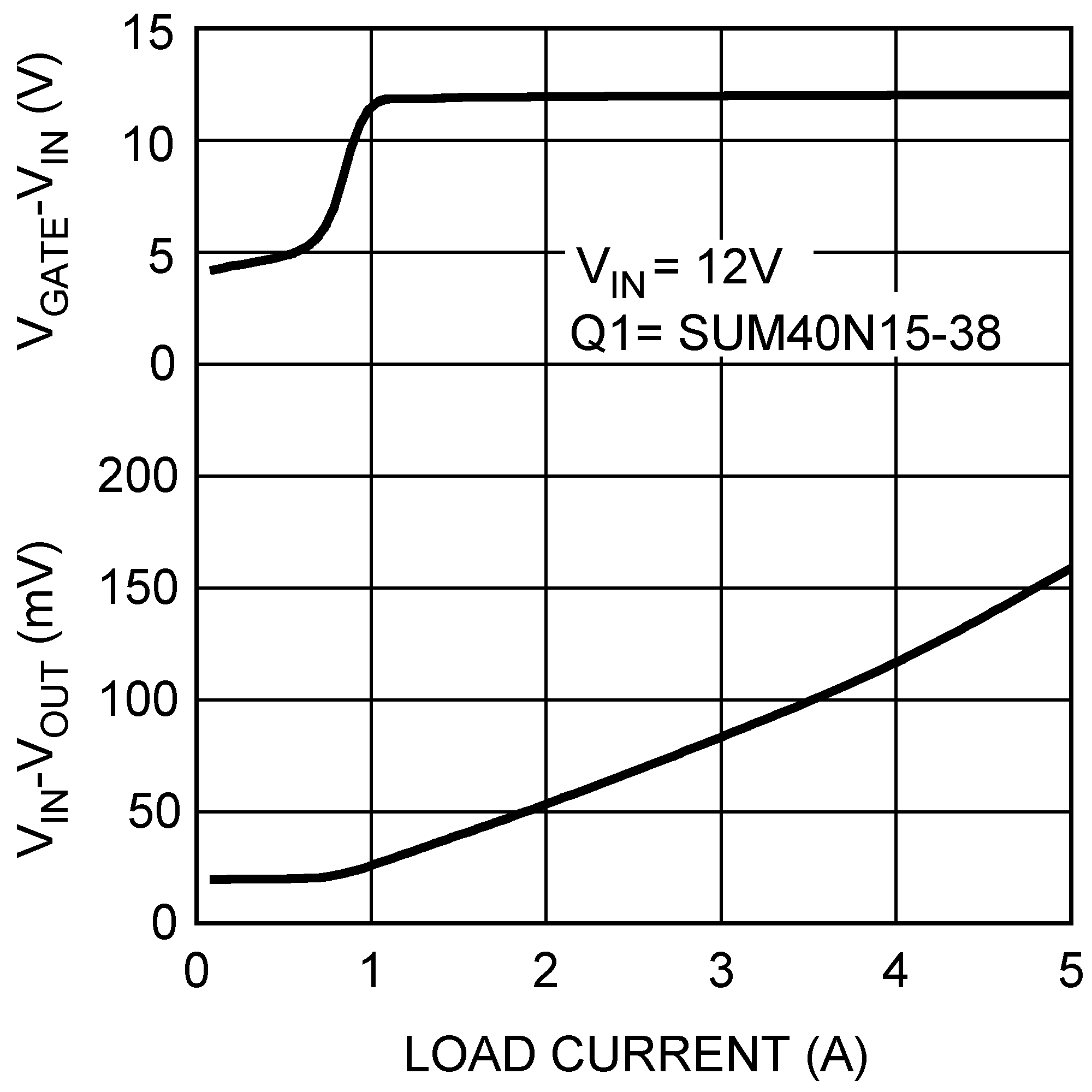

Figure 20. GATE Pin vs (RDS(ON) × IDS)
