17 Overcurrent Protection

For protection against load faults, the TPS84210 uses current limiting. The device is protected from overcurrent conditions by cycle-by-cycle current limiting and frequency foldback. During an overcurrent condition the output current is limited and the output voltage is reduced, as shown in Figure 26. When the overcurrent condition is removed, the output voltage returns to the established voltage, as shown in Figure 27.

TPS84210 TPS84210 OverCurrentShutdown.pngFigure 26. Overcurrent Limiting

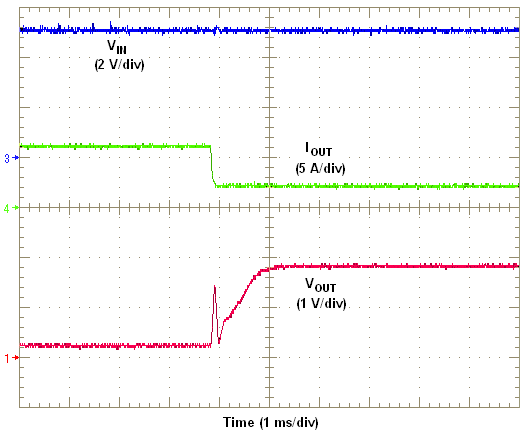

TPS84210 TPS84210 OverCurrentRemove.pngFigure 27. Removal of Overcurrent Condition
