8.2 Typical Application

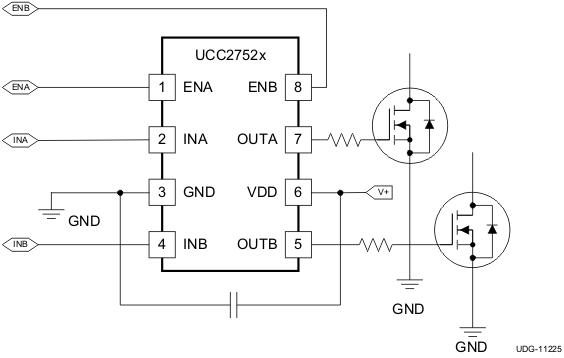

UCC27523 UCC27525 UCC27526 UCC2752x Typical Application Diagram (x = 3, or 5) Figure 8-1 UCC2752x Typical Application Diagram (x = 3, or 5)

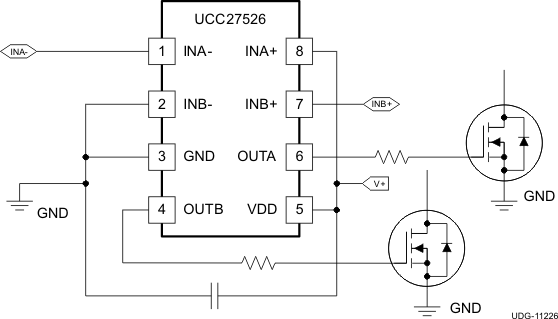

UCC27523 UCC27525 UCC27526 UCC27526 Channel A in Inverting and Channel B in Non-Inverting Configuration (Enable Function Not Used) Figure 8-2 UCC27526 Channel A in Inverting and Channel B in Non-Inverting Configuration (Enable Function Not Used)
UCC27523 UCC27525 UCC27526 UCC27526 Channel A in Inverting and Channel B in Non-Inverting Configuration (Enable Function Implemented) Figure 8-3 UCC27526 Channel A in Inverting and Channel B in Non-Inverting Configuration (Enable Function Implemented)
