5.9 Typical Characteristics

TA = 25°C (unless otherwise noted)

TCA9539A-Q1 Supply Current vs Temperature for Different Supply Voltage (VCC)
Figure 5-1 Supply Current vs Temperature for Different Supply Voltage (VCC)
TCA9539A-Q1 Supply Current vs Supply Voltage for Different Temperature (TA)
Figure 5-3 Supply Current vs Supply Voltage for Different Temperature (TA)
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)
VCC = 1.8V
Figure 5-5 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)
VCC = 3.3V
Figure 5-7 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA)
VCC = 1.65V
Figure 5-9 I/O Source Current vs Output High Voltage for Different Temperature (TA)
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA)
VCC = 2.5V
Figure 5-11 I/O Source Current vs Output High Voltage for Different Temperature (TA)
TCA9539A-Q1 VCC – VOH Voltage vs Temperature for Different VCC

Figure 5-13 VCC – VOH Voltage vs Temperature for Different VCC
TCA9539A-Q1 Supply Current vs Temperature for Different Supply Voltage (VCC)
Figure 5-15 Supply Current vs Temperature for Different Supply Voltage (VCC)
TCA9539A-Q1 Supply Current vs Supply Voltage for Different Temperature (TA)
Figure 5-17 Supply Current vs Supply Voltage for Different Temperature (TA)
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.8V
Figure 5-19 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.8V
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 3.3V
Figure 5-21 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 3.3V
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5.5V
Figure 5-23 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5.5V

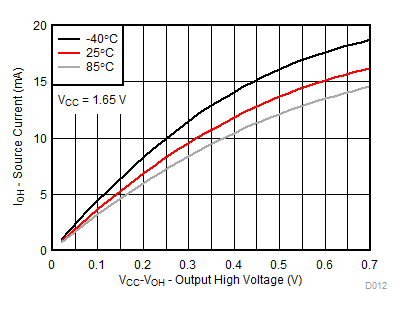

TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.65V
Figure 5-25 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.65V
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 2.5V
Figure 5-27 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 2.5V
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5V
Figure 5-29 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5V
TCA9539A-Q1 VCC – VOH Voltage vs Temperature for Different VCC
Figure 5-31 VCC – VOH Voltage vs Temperature for Different VCC
TCA9539A-Q1 Standby Supply Current vs Temperature for Different Supply Voltage (VCC)
Figure 5-2 Standby Supply Current vs Temperature for Different Supply Voltage (VCC)
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)
VCC = 1.65V
Figure 5-4 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)
VCC = 2.5V
Figure 5-6 I/O Sink Current vs Output Low Voltage for Different Temperature (TA)

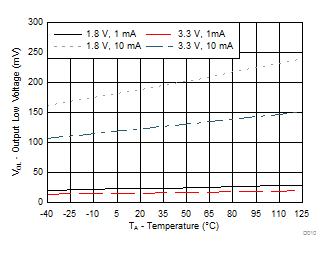

TCA9539A-Q1 I/O Low Voltage vs Temperature for Different VCC and IOL
Figure 5-8 I/O Low Voltage vs Temperature for Different VCC and IOL
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA)
VCC = 1.8V
Figure 5-10 I/O Source Current vs Output High Voltage for Different Temperature (TA)
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA)
VCC = 3.3V
Figure 5-12 I/O Source Current vs Output High Voltage for Different Temperature (TA)
TCA9539A-Q1 Δ ICC vs Temperature for Different VCC
(VI = VCC – 0.6V)
Figure 5-14 Δ ICC vs Temperature for Different VCC
TCA9539A-Q1 Standby Supply Current vs Temperature for Different Supply Voltage (VCC)
Figure 5-16 Standby Supply Current vs Temperature for Different Supply Voltage (VCC)
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.65V
Figure 5-18 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 1.65V
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 2.5V
Figure 5-20 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 2.5V
TCA9539A-Q1 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5V
Figure 5-22 I/O Sink Current vs Output Low Voltage for Different Temperature (TA) for VCC = 5V
TCA9539A-Q1 II/O Low Voltage vs Temperature for Different VCC and IOL
Figure 5-24 II/O Low Voltage vs Temperature for Different VCC and IOL
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.8V
Figure 5-26 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 1.8V
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 3.3V
Figure 5-28 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 3.3V
TCA9539A-Q1 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5.5V
Figure 5-30 I/O Source Current vs Output High Voltage for Different Temperature (TA) for VCC = 5.5V
TCA9539A-Q1 Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6V)
A.
Figure 5-32 Δ ICC vs Temperature for Different VCC (VI = VCC – 0.6V)
