4.7 Load Transient Response

The TPS563207EVM response to load transient is shown in Figure 4-9. The current steps are indicated in the figures. The loading step slew rate is 2.5 A/μs. Total peak-to-peak voltage variation is as shown.

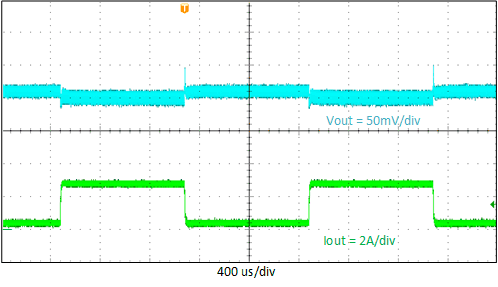

GUID-20200814-CA0I-BXW3-PN2J-TTLW9VP7ZCP6-low.gif Figure 4-9 Load Transient Response, 10% to 90% Load Step
