4.6 Input Voltage Ripple

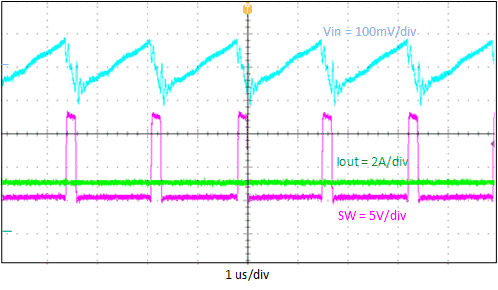

The TPS563207EVM input voltage ripple is shown in Figure 4-8. The output current is as indicated.

GUID-20200814-CA0I-RWV7-7LQT-SJ9QTQTMFGDK-low.gif Figure 4-8 Input Voltage Ripple, IOUT = 3 A
