4.5 Output Voltage Ripple

The TPS563207EVM output voltage ripple is shown in Figure 4-6 and Figure 4-7. The output currents are as indicated.

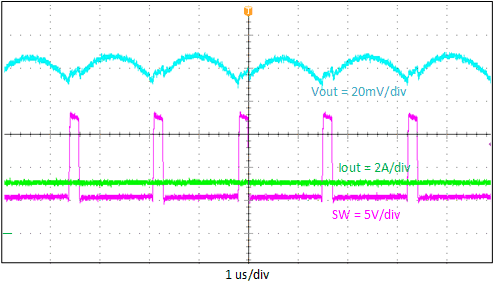

GUID-20200814-CA0I-QJMW-S4FD-DKQMR1R6GXXQ-low.gif Figure 4-6 Output Voltage Ripple, IOUT = 3 A
GUID-20200814-CA0I-LHH2-HJMG-4FHRZ3K1MTTX-low.gif Figure 4-7 Output Voltage Ripple, IOUT = 10 mA
