1 Overview

This document contains information for UCC21222-Q1 and UCC21330-Q1 (SOIC package) to aid in a functional safety system design. Information provided are:

  • Functional safety failure in time (FIT) rates of the semiconductor component estimated by the application of industry reliability standards
  • Component failure modes and their distribution (FMD) based on the primary function of the device
  • Pin failure mode analysis (pin FMA)

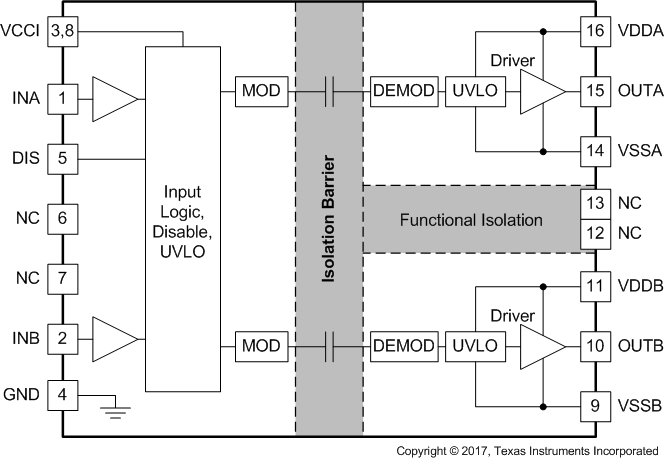

Figure 1-1 shows the device functional block diagram for reference.

UCC21222-Q1 UCC21330-Q1 Functional Block DiagramFigure 1-1 Functional Block Diagram

UCC21222-Q1 and UCC21330-Q1 were developed using a quality-managed development process, but were not developed in accordance with the IEC 61508 or ISO 26262 standards.
