7.2.3 Application Curves

TPS54J061 Efficiency – 1100 kHz, FCCM
VOUT = 1.8 V fSW = 1100 kHz MODE = FCCM
VCC = Int 3.0 V
Figure 7-2 Efficiency – 1100 kHz, FCCM
TPS54J061 Efficiency – 1100 kHz, FCCM, External 3.3-V VCC, 4.7-Ω RBOOT
VOUT = 1.8 V fSW = 1100 kHz MODE = FCCM
VCC = Ext 3.3 V RBOOT = 4.7 Ω
Figure 7-4 Efficiency – 1100 kHz, FCCM, External 3.3-V VCC, 4.7-Ω RBOOT
TPS54J061 Efficiency – 1100 kHz, DCM, External 3.3-V VCC, 4.7-Ω RBOOT
VOUT = 1.8 V fSW = 1100 kHz MODE = DCM
VCC = Ext 3.3 V RBOOT = 4.7 Ω
Figure 7-6 Efficiency – 1100 kHz, DCM, External 3.3-V VCC, 4.7-Ω RBOOT

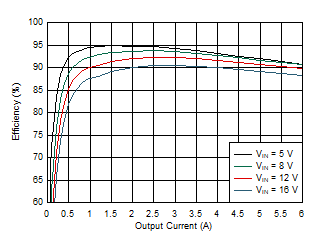

TPS54J061 Efficiency – 600 kHz, FCCM
VOUT = 1.8 V fSW = 600 kHz MODE = FCCM
VCC = Int 3.0 V
Figure 7-8 Efficiency – 600 kHz, FCCM
TPS54J061 Output Voltage vs Output Current – FCCM
VOUT = 1.8 V fSW = 1100 kHz MODE = FCCM
Figure 7-10 Output Voltage vs Output Current – FCCM
TPS54J061 Output Voltage vs Input Voltage
VOUT = 1.8 V fSW = 1100 kHz
Figure 7-12 Output Voltage vs Input Voltage
TPS54J061 Switching Frequency vs Output Current – 600 kHz
VOUT = 1.8 V fSW = 600 kHz MODE = FCCM
Figure 7-14 Switching Frequency vs Output Current – 600 kHz
TPS54J061 EN Start-Up
VIN = 12 V RLOAD = 0.3 Ω
Figure 7-16 EN Start-Up
TPS54J061 EN Shutdown
VIN = 12 V RLOAD = 0.3 Ω
Figure 7-18 EN Shutdown
TPS54J061 VIN Shutdown
RLOAD = 0.3 Ω
Figure 7-20 VIN Shutdown
TPS54J061 Load Transient – DCM
VIN = 12 V 0.1 A to 3.1 A step 1 A /µsec
MODE = DCM
Figure 7-22 Load Transient – DCM
TPS54J061 Output Voltage Ripple
VIN = 12 V ILOAD = 0.1 A MODE = FCCM
Figure 7-24 Output Voltage Ripple
TPS54J061 Output Voltage Ripple
VIN = 12 V ILOAD = 6 A
Figure 7-26 Output Voltage Ripple

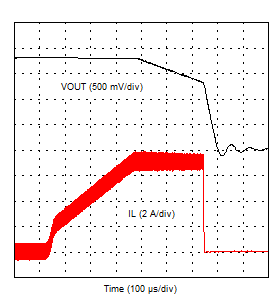

TPS54J061 Overcurrent Response
VIN = 12 V IOUT = 7.5-A Constant Current
Figure 7-28 Overcurrent Response
TPS54J061 Short Circuit Response
VIN = 12 V IOUT = Short
Figure 7-30 Short Circuit Response
TPS54J061 Overcurrent Exit Hiccup
VIN = 12 V IOUT = 7.5-A Constant Current
Figure 7-32 Overcurrent Exit Hiccup
TPS54J061 Efficiency – 1100 kHz, DCM
VOUT = 1.8 V fSW = 1100 kHz MODE = DCM
VCC = Int 3.0 V
Figure 7-3 Efficiency – 1100 kHz, DCM

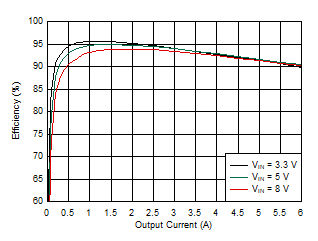

TPS54J061 Efficiency – 1100 kHz, FCCM, External 3.3-V VCC, 0-Ω RBOOT
VOUT = 1.8 V fSW = 1100 kHz MODE = FCCM
VCC = Ext 3.3 V RBOOT = 0 Ω
Figure 7-5 Efficiency – 1100 kHz, FCCM, External 3.3-V VCC, 0-Ω RBOOT
TPS54J061 Efficiency – 1100 kHz, DCM, External 3.3-V VCC, 0-Ω RBOOT
VOUT = 1.8 V fSW = 1100 kHz MODE = DCM
VCC = Ext 3.3 V RBOOT = 0 Ω
Figure 7-7 Efficiency – 1100 kHz, DCM, External 3.3-V VCC, 0-Ω RBOOT
TPS54J061 Efficiency – 600 kHz, DCM
VOUT = 1.8 V fSW = 600 kHz MODE = DCM
VCC = Int 3.0 V
Figure 7-9 Efficiency – 600 kHz, DCM
TPS54J061 Output Voltage vs Output Current – DCM
VOUT = 1.8 V fSW = 1100 kHz MODE = DCM
Figure 7-11 Output Voltage vs Output Current – DCM
TPS54J061 Switching Frequency vs Output Current – 1100 kHz
VOUT = 1.8 V fSW = 1100 kHz MODE = FCCM
Figure 7-13 Switching Frequency vs Output Current – 1100 kHz
TPS54J061 EN Start-Up
VIN = 12 V RLOAD = 0.3 Ω
Figure 7-15 EN Start-Up
TPS54J061 EN Start-Up – DCM
VIN = 12 V IOUT = 0 A MODE = DCM
Figure 7-17 EN Start-Up – DCM
TPS54J061 VIN Start-Up
RLOAD = 0.3 Ω
Figure 7-19 VIN Start-Up
TPS54J061 Load Transient – FCCM
VIN = 12 V 0.1 A to 3.1 A step 1 A/µsec
MODE = FCCM
Figure 7-21 Load Transient – FCCM
TPS54J061 Bode Plot
VIN = 12 V IOUT = 6 A
Figure 7-23 Bode Plot

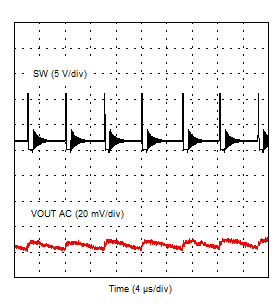

TPS54J061 Output Voltage Ripple – DCM
VIN = 12 V ILOAD = 0.1 A MODE = DCM
Figure 7-25 Output Voltage Ripple – DCM
TPS54J061 EN Start-Up With Prebias
VIN = 12 V IOUT = 0 A Prebias = 1.0 V
Figure 7-27 EN Start-Up With Prebias
TPS54J061 Overcurrent Response
VIN = 12 V IOUT = 7.5-A Constant Current
Figure 7-29 Overcurrent Response
TPS54J061 Overcurrent Enter Hiccup
VIN = 12 V IOUT = 7.5-A Constant Current
Figure 7-31 Overcurrent Enter Hiccup
