6 TPS62120EVM Assembly Drawings and Layout

Figure 6-1 through Figure 6-3 show the design of the show the design of the TPS62120EVM-640 printed circuit board. The EVM has been designed using a four-layer, 1-ounce copper-clad PCB.

Note:

Board layouts are not to scale. These figures are intended to show how the board is laid out; they are not intended to be used for manufacturing TPS62120EVM-640 PCBs.

GUID-422F6EFF-0134-4731-9197-B35C836FDEDF-low.gifFigure 6-1 TPS62120EVM Component Placement (Top View)

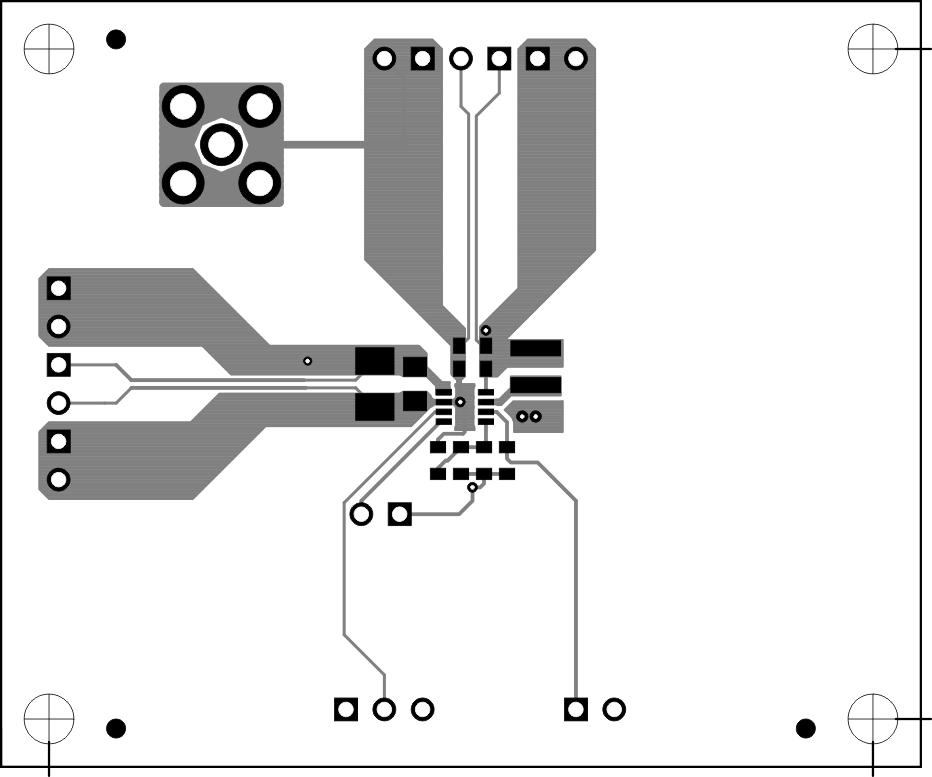

GUID-F24EDBB8-90E7-4D81-B16F-2E22EBBA2D6F-low.gifFigure 6-2 TPS62120EVM Top-Side Copper (Top View)

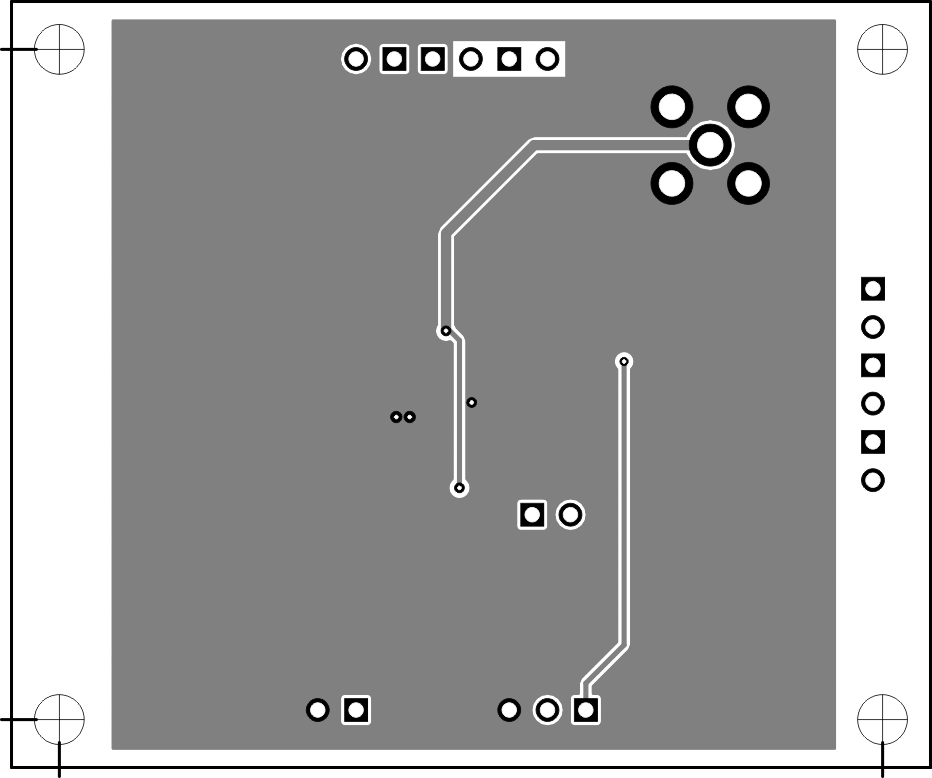

GUID-21B465F6-C579-45A8-968A-C235C4FC908F-low.gifFigure 6-3 TPS62120EVM Bottom-Side Copper (Bottom View)
